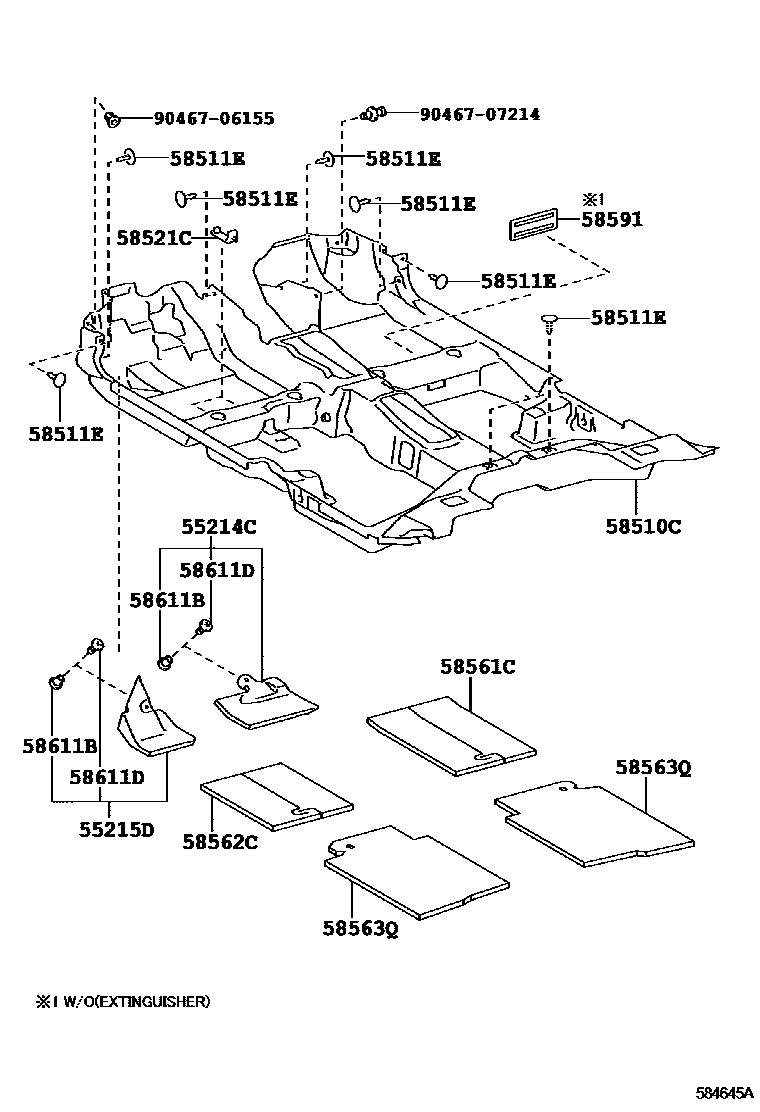

MAT & CARPET

0001 1 0002 1 0003 1 0004 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0D471-C0iNGK11,12201209-201305

BLACK,TRIM1#,2#

sub58510-0D472

main58510-0D472-C0iNGK11,12201306-201604

BLACK,TRIM2#

main58510-0D691-C0iNGK15201209-201305

BLACK,TRIM1#,2#

sub58510-0D692

main58510-0D692-C0iNGK15201306-201604

BLACK,TRIM2#

main58510-0DD60-C0iNGK11..6F;NGK12..XS..BZ201604-202103

BLACK,TRIM2#

main58510-0DD70-C0iNGK15..BZ201604-202103

BLACK,TRIM2#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

sub90467-05164¥110

main90467-05164-C0iNGK11,15..4FC,6F;NGK12..CROSS..AGT;NGK12..6F..XS..AGT;NGK12..(CROSS,XS)..BZ;NGK12..(4FC,6F)..(X,XLS)201309-201610

BLACK,TRIM2#

sub90467-05164¥110

main90467-05164-C7iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201610-202103

BLACK,TRIM2#

sub90467-05164¥110

58521CHOOK, FLOOR CARPET NO.2

main58522-52030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥380201209-202103

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D100iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D100iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main58563-0D160iNGK15..5F;NGK15..(4FC,6F)..AGT201209-202103

58591COVER, FLOOR CARPET

main58591-02080-B0iNGK12,15..AGT201309-201405

DK. GREY,TRIM2#

main58591-0D080-C0iNGK12,15..AGT201406-202103

BLACK,TRIM2#

58611BPLATE, MAT SET, NO.1

main55229-48010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥110201209-202103

58611DPLATE, MAT SET, NO.1 B

main55239-48020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥130201209-202103

9046706155

main90467-06155¥70

9046707214

main90467-07214¥70

13 parts on this diagram · 4 diagrams in section
