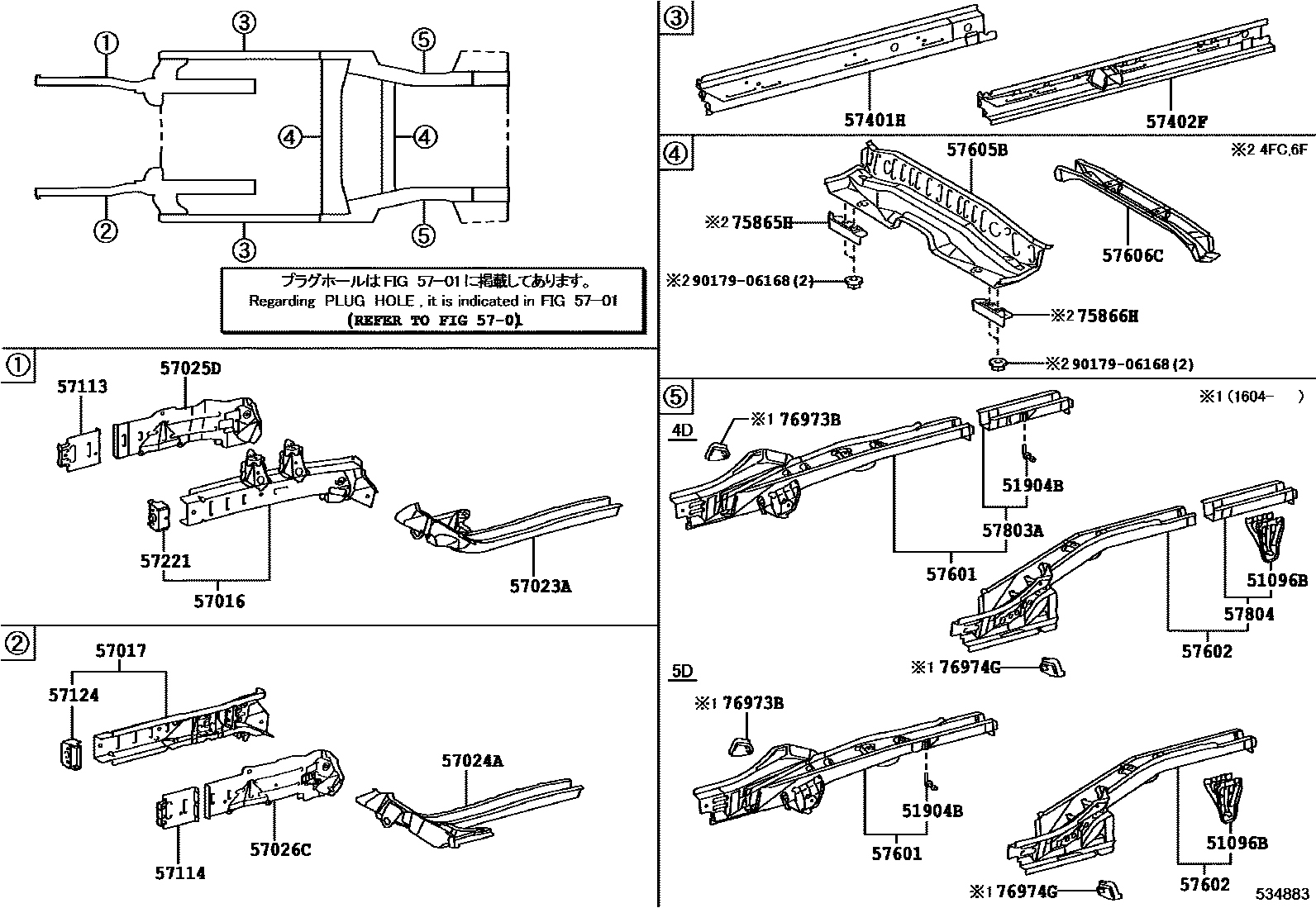

FLOOR SIDE MEMBER

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-0D030iNGK11..4FC,5F;NGK12,15..5F..BZ;NGK12..(4FC,6F)..(CROSS,XLS)..BZ201209-202103

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D080iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D160iNGK1#201209-201604

sub57017-0D260

main57017-0D260iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0D100iNGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS201604-202112

sub57023-0D101

sub57023-0D160

main57023-0D101iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT202201

main57023-0D130iNGK1#201209-201604

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0D140iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202112

sub57024-0D141

main57024-0D141iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT202201

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D040iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57221BRACKET, FRONT SIDE MEMBER, RH

main57013-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D220iNGK11,12201209-201408

sub57401-0D221

main57401-0D221iNGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201409-202103

main57401-0D230iNGK15201209-201408

sub57401-0D231

main57401-0D231iNGK15..5F;NGK15..(4FC,6F)..AGT201409-202103

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D200iNGK11,12201209-201408

sub57402-0D201

main57402-0D201iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201409-202103

main57402-0D210iNGK15201209-201408

sub57402-0D211

main57402-0D211iNGK15..(4FC,6F)..BZ201409-202103

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D270iNGK11,12..BZ201209-201806

main57601-0D271iNGK11..6F;NGK12..XS..BZ201806-202103

main57601-0D280iNGK12..AGT201309-201604

main57601-0D281iNGK12..AGT202006

main57601-0D290iNGK15..BZ201209-201806

sub57601-0D291

main57601-0D291iNGK15..BZ201806-202103

sub57601-0D301

sub51095-0D030

main57601-0D300iNGK15..AGT201309-201806

sub57601-0D301

main57601-0D301iNGK15..AGT201806

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D220iNGK11,12..BZ;NGK12..5F..AGT201209-201703

main57602-0D221iNGK11,12..BZ201703-201806

main57602-0D222iNGK12..AGT201806-202103

main57602-0D240iNGK15201209-201703

main57602-0D241iNGK15201703-201806

sub57602-0D242

main57602-0D242iNGK15..BZ201806-202103

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D140iNGK1#201209-201501

main57605-0D200iNGK11..4FC;NGK15..AGT;NGK12..(CROSS,XLS)..BZ201604-202103

main57605-0D210iNGK1#201502-201604

sub57605-0D200

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D080iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-0D020iNGK15..BZ201209-202103

sub57803-0D030

sub51095-0D030

main57803-0D030iNGK15..AGT201309

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-0D020iNGK15..(4FC,6F)..BZ201209-202103

75865HPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-0D060iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

75866HPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-0D060iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

76973BCOVER, REAR UNDER SIDE, RH

main76973-0D040iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

76974GCOVER, REAR UNDER SIDE, LH

main76974-0D040iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

9017906168

main90179-06168¥80

26 parts on this diagram · 1 diagram in section
