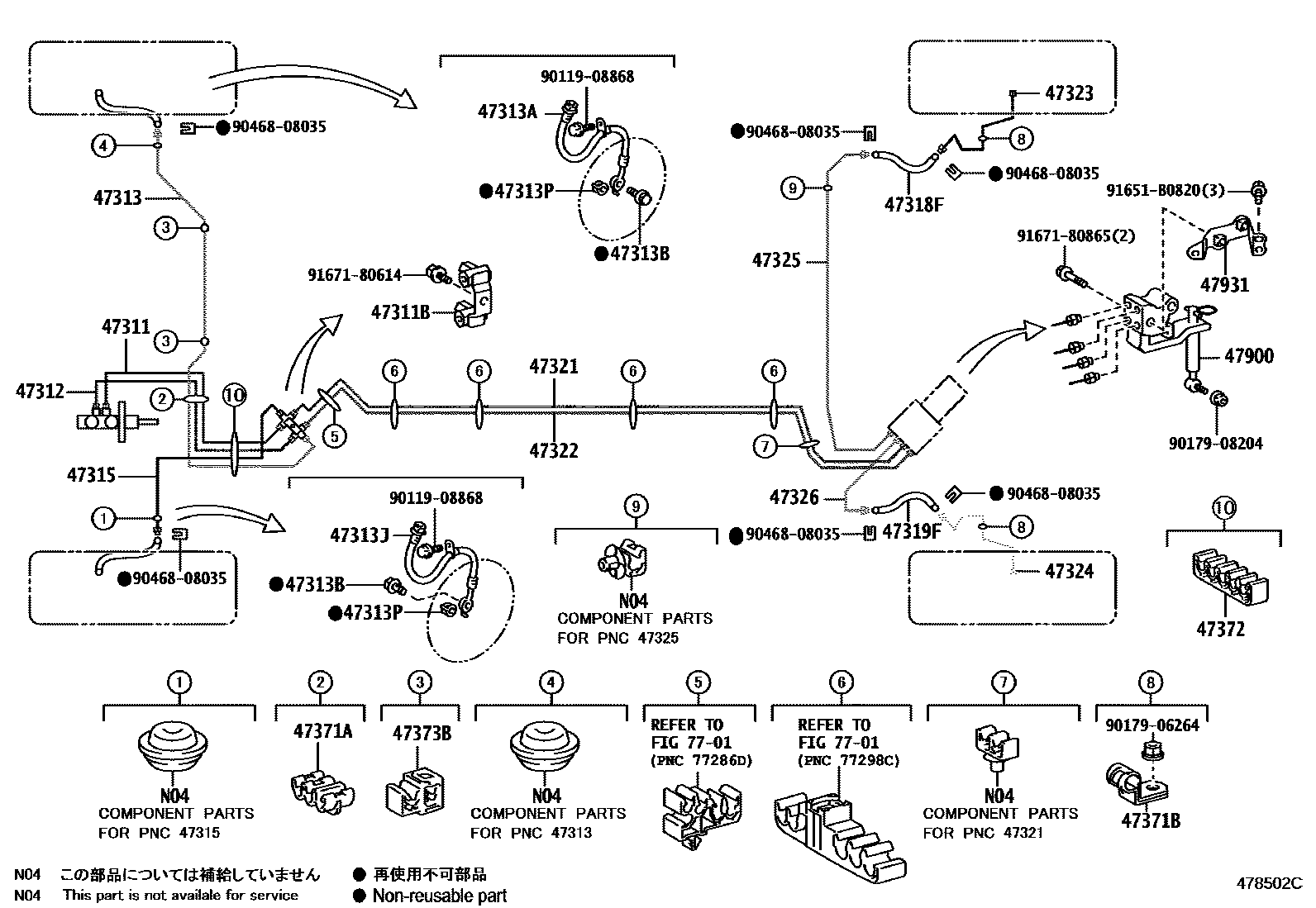

BRAKE TUBE & CLAMP

0001 1W/O(ABS) 0002 1W/(ABS) 0003 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-0D440iNGK11..STD201209-201310

main47311-0D450iNGK1#..CROSS,X,XLS,XS201209-201604

main47311-0D730iNGK11..4FC;NGK12..CROSS,X;NGK12..XS..AGT;NGK15..(X,XS)..AGT201604

main47311-0DB50supersedes 47311-0D730iNGK11..6F;NGK15..X..BZ201803-202103

VEHICLE STABILITY CONT-WITH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNGK12..4FC..(XLS,XS)201209-201802

main90413-10322iNGK11..STD201209-201310

47312TUBE, FRONT BRAKE, NO.2

main47312-0D380iNGK11..STD201209-201310

main47312-0D390iNGK1#..CROSS,X,XLS,XS201209-201604

main47312-0D660iNGK12..4FC..(XLS,XS)201604-201802

main47312-0DA80supersedes 47312-0D660iNGK11..6F;NGK15..X..BZ201803-202103

VEHICLE STABILITY CONT-WITH

47313TUBE, FRONT BRAKE, NO.3

main47313-0D310iNGK11..STD201209-201310

main47313-0D320supersedes 47313-0D660iNGK11..6F;NGK15..X..BZ201803-202103

VEHICLE STABILITY CONT-WITH

main47313-0D660iNGK11..4FC;NGK12..CROSS,X;NGK12..XS..AGT;NGK15..(X,XS)..AGT201604

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94201iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90080-94202iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNGK1#201209-201711

main47389-50021×2iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201711-202103

47315TUBE, FRONT BRAKE, NO.5

main47315-0D350iNGK11..STD201209-201310

main47315-0D360supersedes 47315-0D640iNGK11..6F;NGK15..X..BZ201803-202103

VEHICLE STABILITY CONT-WITH

main47315-0D640iNGK12..4FC..(XLS,XS)201604-201802

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94215iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94215iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47321TUBE, REAR BRAKE, NO.1

main47321-0D260iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main47321-0D270iNGK11..STD201209-201310

main47321-0D280iNGK15..(4FC,6F)..BZ201209-202103

47322TUBE, REAR BRAKE, NO.2

main47322-0D260iNGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209

main47322-0D270iNGK11..STD201209-201310

main47322-0D280iNGK15..5F;NGK15..(4FC,6F)..AGT201209

47323TUBE, REAR BRAKE, NO.3

main47323-0D180iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

47324TUBE, REAR BRAKE, NO.4

main47324-0D180iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47325TUBE, REAR BRAKE, NO.5

main47325-0D050iNGK11..STD201209-201310

47326TUBE, REAR BRAKE, NO.6

main47326-0D050iNGK11..STD201209-201310

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNGK11..STD201209-201310

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10781×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

47372CLAMP, BRAKE TUBE, NO.2

main90464-00900iNGK11..STD201209-201310

main90464-00933supersedes 90949-01969iNGK11..6F;NGK15..X..BZ201803-202103

VEHICLE STABILITY CONT-WITH

main90949-01969iNGK12,15..5F;NGK12..6F..XS..AGT;NGK15..6F..(X,XS)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X)201209

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D18×2iNGK12..4FC..(XLS,XS)201209-201802

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-0D060iNGK11..STD201209-201310

sub47900-0D061

47931BRACKET, LOAD SENSING VALVE

main47931-0D060iNGK11..STD201209-201310

7701

9011908868

main90119-08868

9017906264

main90179-06264

9017908204

main90179-08204

9046808035

main90468-08035

91651B0820

main91651-B0820

9167180614

main91671-80614

9167180865

main91671-80865

31 parts on this diagram · 3 diagrams in section
