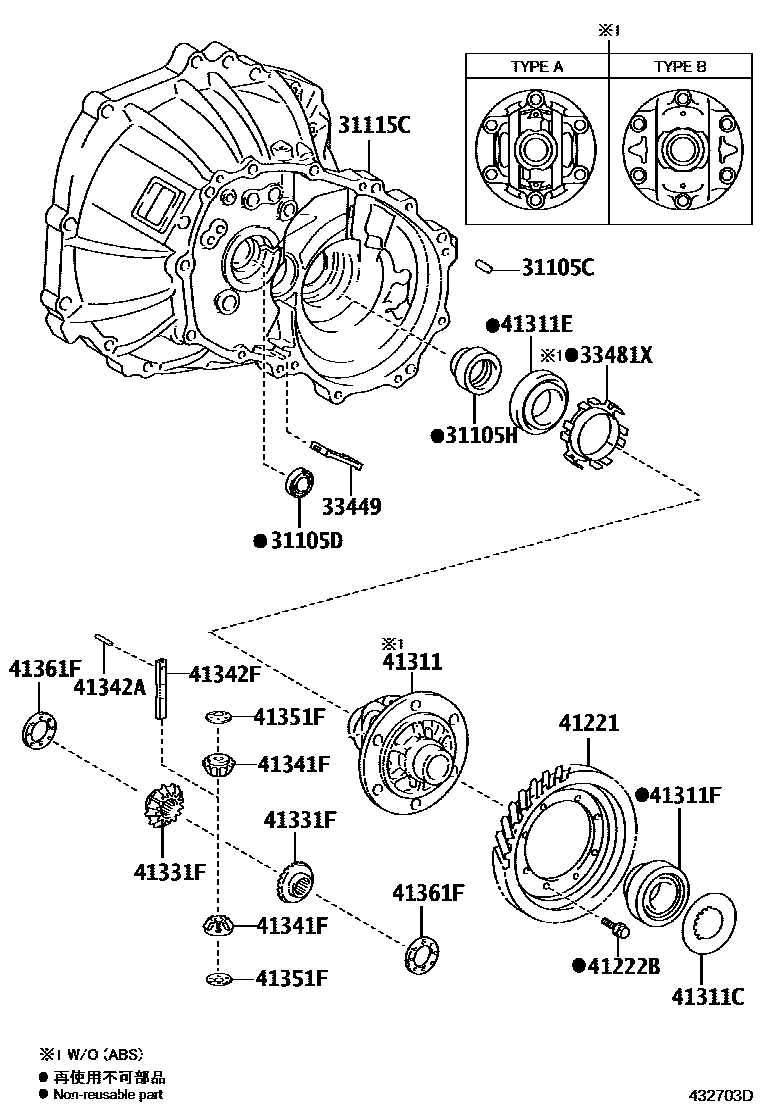

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C550 0002 1EC60 0003 1U442E

31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)

main90250-08054iNGK1#201209-201604

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-23009iNGK1#201209-201604

(J)

main90311-25030iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90311-T0041iNGK1#201301-201604

(L)

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34039iNGK1#201209-201604

(J)

main90311-T0042iNGK1#201301-201604

(L)

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-0D090iNGK11..STD201301-201310

main31115-0D100iNGK1#..CROSS,X,XLS,XS201301-201604

(L)

main31115-0D200iNGK1#..6F201604-201607

main31115-0D210iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201607-202103

main31115-52181iNGK11..STD201209-201310

(J)

main31115-52191iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

33449MAGNET, TRANSMISSION

main33449-60010iNGK1#201209-201604

33481XGEAR, SPEEDOMETER DRIVE

main33481-0D040iNGK11..STD201301-201310

(L)

main33481-52040iNGK11..STD201209-201310

(J)

41221GEAR, FRONT DIFFERENTIAL RING

main41221-0D100iNGK1#201301-201604

(L)

main41221-52390iNGK1#201209-201604

(J)

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90105-12313iNGK1#201209-201604

41311CASE, FRONT DIFFERENTIAL

main41311-0D040iNGK11..STD201301-201310

(L)

main41311-0D040iNGK1#..CROSS,X,XLS,XS201301-201604

TYPE B:REFER ILLUST.

main41311-52120iNGK1#..CROSS,X,XLS,XS201209-201604

TYPE A:REFER ILLUST.

main41311-52180iNGK11..STD201209-201310

(J)

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-41014iNGK1#201209-201604

T=2.10,MARK AA

main90564-41015iNGK1#201209-201604

T=2.15,MARK BB

main90564-41016iNGK1#201209-201604

T=2.20,MARK CC

main90564-41017iNGK1#201209-201604

T=2.25,MARK DD

main90564-41018iNGK1#201209-201604

T=2.30,MARK EE

main90564-41019iNGK1#201209-201604

T=2.35,MARK FF

main90564-41020iNGK1#201209-201604

T=2.40,MARK GG

main90564-41021iNGK1#201209-201604

T=2.45,MARK HH

main90564-41022iNGK1#201209-201604

T=2.50,MARK JJ

main90564-41023iNGK1#201209-201604

T=2.55,MARK KK

main90564-41024iNGK1#201209-201604

T=2.60,MARK LL

main90564-41025iNGK1#201209-201604

T=2.65,MARK MM

main90564-41026iNGK1#201209-201604

T=2.70,MARK NN

main90564-41027iNGK1#201209-201604

T=2.75,MARK PP

main90564-41028iNGK1#201209-201604

T=2.80,MARK QQ

main90564-41029iNGK1#201209-201604

T=2.85,MARK RR

main90564-41030iNGK1#201209-201604

T=2.90,MARK SS

main90564-41031iNGK1#201209-201604

T=2.95,MARK TT

main90564-41032iNGK1#201209-201604

T=3.00,MARK UU

main90564-42080iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=1.80, MARK A

main90564-42081iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=1.85, MARK B

main90564-42082iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=1.90, MARK C

main90564-42083iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=1.95, MARK D

main90564-42084iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.00, MARK E

main90564-42085iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.05, MARK F

main90564-42086iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.08, MARK G

main90564-42087iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.11, MARK H

main90564-42088iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.14, MARK J

main90564-42089iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.17, MARK K

main90564-42090iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.20, MARK L

main90564-42091iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.23, MARK M

main90564-42092iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.26, MARK N

main90564-42093iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.29, MARK P

main90564-42094iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.32, MARK Q

main90564-42095iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.35, MARK R

main90564-42096iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.40, MARK S

main90564-42097iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.45, MARK T

main90564-42098iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.50, MARK U

main90564-42099iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.55, MARK V

main90564-42100iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.60, MARK W

main90564-42101iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202103

T=2.65, MARK X

main90564-42102iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

T=2.70, MARK Y

main90564-42103iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)202104

T=1.80

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38045iNGK1#201209-201604

(J)

main90366-38068iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)202104

main90366-40129iNGK1#..6F201604-201806

main90366-C0037iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202104

sub90366-38068

main90366-S0028iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(X,XLS)201806-202103

main90366-T0051iNGK1#201301-201604

(L)

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-38068iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)202104

main90366-42009iNGK1#..6F201604-201806

main90366-C0037iNGK12..4FC..XS;NGK15..4FC..BZ201604-202104

sub90366-38068

main90366-S0025iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201806-202103

main90366-T0054iNGK1#201301-201604

(L)

main90368-38010iNGK1#201209-201604

(J)

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-0D080iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main41331-52050iNGK1#201209-201604

41341FPINION, FRONT DIFFERENTIAL

main41341-0D080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main41341-52070iNGK1#201209-201604

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iNGK1#201209-201604

main90250-06058iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10041iNGK1#201404-201604

main41342-32020iNGK1#..6F201604-201801

sub41342-52060

main41342-52060iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(X,XLS)201802-202103

main41342-70030iNGK1#201209-201403

sub41342-10041

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030iNGK1#201209-201604

main41351-32010iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

T=1.00,MARK 02

main41361-22030iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

T=1.10,MARK 03

main41361-22040iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

T=1.20,MARK 04

main41361-22140iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

T=0.95,MARK 14

main41361-22150iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

T=1.05,MARK 15

main41361-22160iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

T=1.15,MARK 16

main41361-48010iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

T=0.90,MARK 19

main41361-70010iNGK1#201209-201604

T=0.50

main41361-70020iNGK1#201209-201604

T=0.55

main41361-70030iNGK1#201209-201604

T=0.60

main41361-70040iNGK1#201209-201604

T=0.65

main41361-70050iNGK1#201209-201604

T=0.70

main41361-70060iNGK1#201209-201604

T=0.75

main41361-70070iNGK1#201209-201604

T=0.80

main41361-70080iNGK1#201209-201604

T=0.85

main41361-70090iNGK1#201209-201604

T=0.90

main41361-70100iNGK1#201209-201604

T=0.95

18 parts on this diagram · 3 diagrams in section
