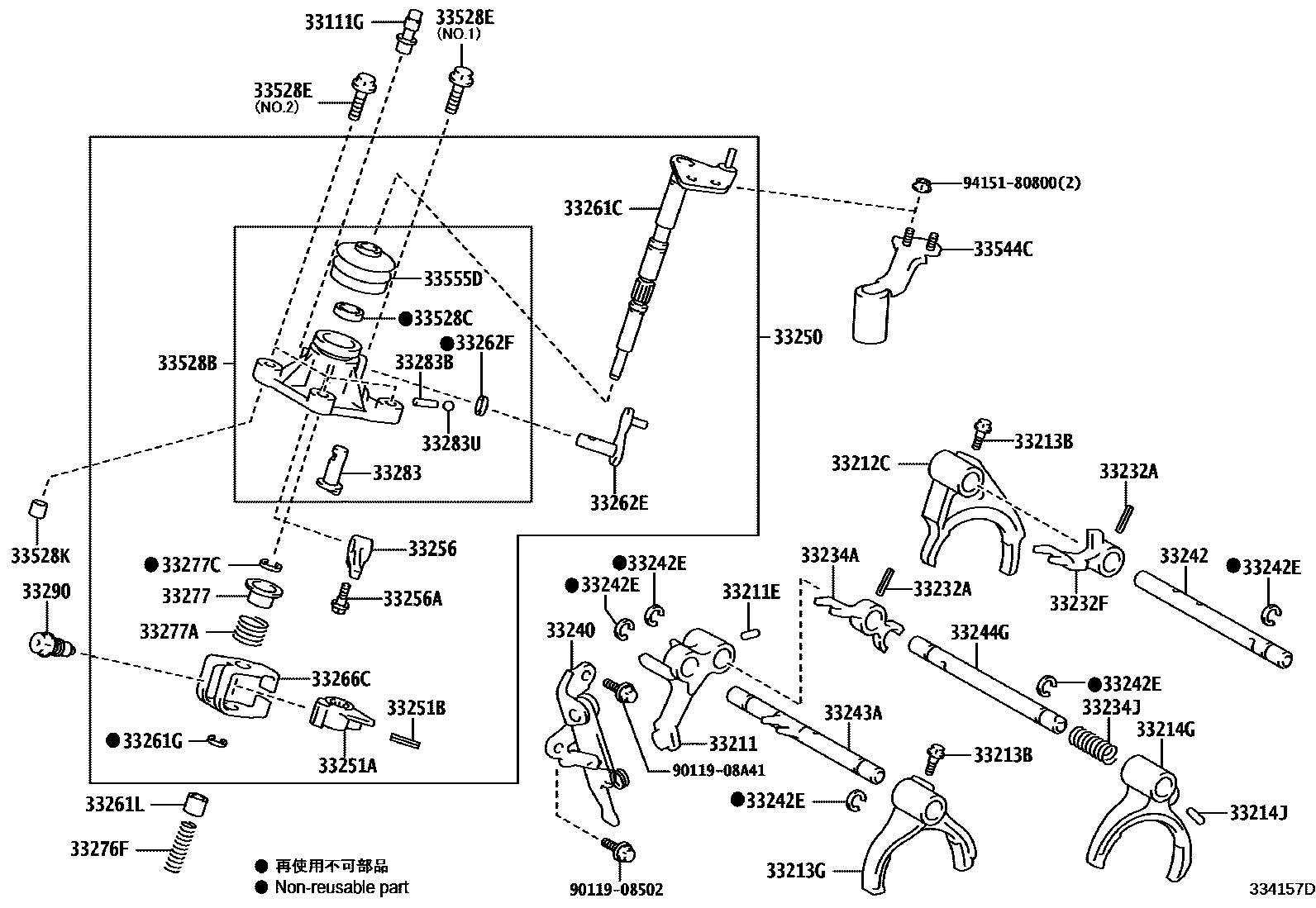

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
33212CFORK, GEAR SHIFT, NO.1
(L)
(J)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
(L)
(J)
33214GFORK, GEAR SHIFT, NO.3
(L)
(J)
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
(J)
(L)
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
(L)
(J)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
(L)
33244GSHAFT, GEAR SHIFT FORK, NO.3
(L)
(J)
33250SHAFT ASSY, SHIFT & SELECT LEVER
(L)
(J)
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
L=25.5
33256LEVER, SELECT INNER
(L)
(J)
33256ABOLT, SET (FOR SELECT INNER LEVER)
(J)
(L)
33261CSHAFT, SHIFT & SELECT LEVER
33261GRING, SNAP (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
NO.1
(J)
NO.2
NO.1
NO.2
(L)
33262ESHAFT, SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
(J)
(L)
33266CPLATE, SHIFT INTERLOCK
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
(J)
(L)
33277SEAT, SELECT SPRING, NO.2
(L)
(J)
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
(J)
(L)
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33283PIN, REVERSE RESTRICT, NO.1
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
33283UBALL, REVERSE RESTRICT PIN
33290BALL ASSY, LOCK, NO.1
33528BCOVER, CONTROL SHAFT
(L)
(J)
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
(L)
(J)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30
*8-1.25X35-30,NO.1
*8-1.25X35-30,(J)
*8-1.25X35-30,(L)
*8-1.25X35-30,NO.2,(L)
*8-1.25PX35-30,NO.2,(J)
*8-1.25PX35-30,NO.2
*8-1.25PX35-30
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
33544CDAMPER, SHIFT LEVER
33555DBOOT, SHIFT LEVER
(L)
(J)
9011908502
9011908A41
9415180800
45 parts on this diagram · 3 diagrams in section
