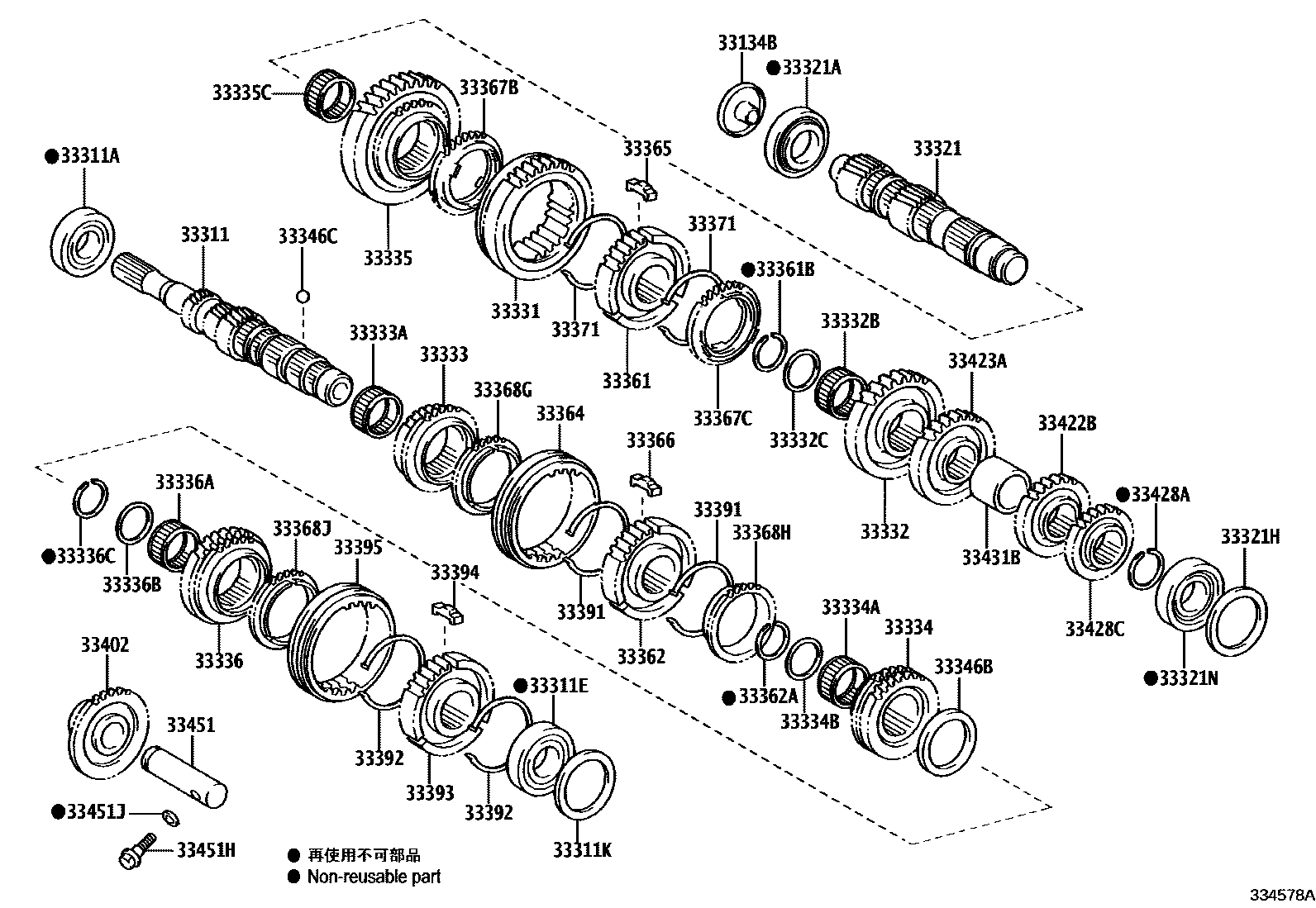

TRANSMISSION GEAR (MTM)

0001 1C550 0002 1EC60

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-0D010iNGK11..STD¥320201209-201310

main33134-0D010iNGK1#..CROSS,X,XLS,XS¥320201209-201604

(J)

main33134-0D060iNGK1#201301-201604

(L)

main33134-0D080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

33311SHAFT, INPUT

main33311-0D060iNGK1#201301-201604

(L)

sub33311-0D061

main33311-0D110iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33311-52030iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main33311-52030iNGK11..STD201209-201310

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-23004iNGK11..STD201209-201310

main90363-23004iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main90363-S0002iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90363-T0027iNGK1#201301-201604

(L)

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25073iNGK1#..CROSS,X,XLS,XS¥1,320201209-201604

(J)

main90363-25073iNGK11..STD¥1,320201209-201310

main90363-S0003iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main90363-T0028iNGK1#201301-201604

(L)

33311KSHIM (FOR INPUT SHAFT REAR BEARING)

main90564-38006iNGK1#¥120201209-201604

T=1.80,MARK F

main90564-38007iNGK1#¥120201209-201604

T=1.85,MARK G

main90564-38008iNGK1#¥120201209-201604

T=1.90,MARK H

main90564-38009iNGK1#¥120201209-201604

T=1.95,MARK J

main90564-38010iNGK1#¥120201209-201604

T=2.00,MARK K

main90564-38011iNGK1#¥120201209-201604

T=2.05,MARK L

main90564-38012iNGK1#¥190201209-201604

T=2.10,MARK M

main90564-38013iNGK1#¥190201209-201604

T=2.15,MARK N

main90564-38014iNGK1#¥190201209-201604

T=2.20,MARK A

main90564-38015iNGK1#¥190201209-201604

T=2.25,MARK Q

main90564-38016iNGK1#¥190201209-201604

T=2.30,MARK R

main90564-38017iNGK1#¥190201209-201604

T=2.35,MARK S

main90564-38018iNGK1#¥190201209-201604

T=2.40,MARK T

main90564-54103iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.30,MARK 08

main90564-54104iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.35,MARK 09

main90564-54105iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.40,MARK 10

main90564-54106iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.45,MARK 11

main90564-54107iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.50,MARK 12

main90564-54108iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.55,MARK 13

main90564-54109iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.60,MARK 14

main90564-54110iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.65,MARK 15

main90564-54111iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.70,MARK 16

main90564-54112iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.75,MARK 17

main90564-54113iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.80,MARK 18

main90564-54114iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.85,MARK 19

33321SHAFT, OUTPUT

main33321-0D170iNGK1#201301-201604

(L)

main33321-0D290iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33321-52290iNGK11..STD201209-201310

main33321-52290iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90366-30096iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥1,850201604-202103

main90366-T0001iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main90366-T0001iNGK11..STD201209-201310

main90366-T0045iNGK1#201301-201604

(L)

33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)

main90564-38001iNGK1#¥120201209-201604

T=1.55,MARK A

main90564-38002iNGK1#¥120201209-201604

T=1.60,MARK B

main90564-38003iNGK1#¥120201209-201604

T=1.65,MARK C

main90564-38004iNGK1#¥120201209-201604

T=1.70,MARK D

main90564-38005iNGK1#¥120201209-201604

T=1.75,MARK E

main90564-38006iNGK1#¥120201209-201604

T=1.80,MARK F

main90564-38007iNGK1#¥120201209-201604

T=1.85,MARK G

main90564-38008iNGK1#¥120201209-201604

T=1.90,MARK H

main90564-38009iNGK1#¥120201209-201604

T=1.95,MARK J

main90564-38010iNGK1#¥120201209-201604

T=2.00,MARK K

main90564-38011iNGK1#¥120201209-201604

T=2.05,MARK L

main90564-38012iNGK1#¥190201209-201604

T=2.10,MARK M

main90564-38013iNGK1#¥190201209-201604

T=2.15,MARK N

main90564-38014iNGK1#¥190201209-201604

T=2.20,MARK A

main90564-38015iNGK1#¥190201209-201604

T=2.25,MARK Q

main90564-45153iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.750,MARK 50

main90564-45154iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.755,MARK 51

main90564-45155iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.800,MARK 52

main90564-45156iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.825,MARK 53

main90564-45157iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.850,MARK 54

main90564-45158iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.875,MARK 55

main90564-45159iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.900,MARK 56

main90564-45160iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.925,MARK 57

main90564-45161iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=1.950,MARK 58

main90564-45162iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=1.975,MARK 59

main90564-45163iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=2.000,MARK 60

main90564-45164iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.025,MARK 61

main90564-45165iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.050,MARK 62

main90564-45166iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=2.075,MARK 63

main90564-45167iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.100,MARK 64

main90564-45168iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.125,MARK 65

main90564-45169iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.150,MARK 66

main90564-45170iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥120201604-202103

T=2.175,MARK 67

main90564-45171iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥120201604-202103

T=2.200,MARK 68

main90564-45172iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.225,MARK 69

main90564-45173iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.250,MARK 70

main90564-45174iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.275,MARK 71

main90564-45175iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.300,MARK 72

main90564-45176iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.325,MARK 73

main90564-45177iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.350,MARK 74

main90564-45178iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.375,MARK 75

main90564-45179iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.400,MARK 76

main90564-45180iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.425,MARK 77

main90564-45181iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.450,MARK 78

main90564-45182iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.475,MARK 79

main90564-45183iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.500,MARK 80

main90564-45184iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.525,MARK 81

main90564-45185iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.550,MARK 82

main90564-45186iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.575,MARK 83

main90564-45187iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.600,MARK 84

main90564-45188iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.625,MARK 85

main90564-45189iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.650,MARK 86

main90564-45190iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.675,MARK 87

main90564-45191iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.700,MARK 88

main90564-45192iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.725,MARK 89

main90564-45193iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥190201604-202103

T=2.750,MARK 90

main90564-45194iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.775,MARK 91

main90564-45195iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥190201604-202103

T=2.800,MARK 92

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90366-28019iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥1,890201604-202103

main90366-T0004iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main90366-T0004iNGK11..STD201209-201310

main90366-T0048iNGK1#201301-201604

(L)

33331GEAR, REVERSE

main33331-0D050iNGK1#201301-201604

(L)

main33331-20090iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥8,000201604-202103

main33331-52030iNGK11..STD¥13,900201209-201310

main33331-52030iNGK1#..CROSS,X,XLS,XS¥13,900201209-201604

(J)

33332GEAR, 2ND

main33332-0D040iNGK1#201301-201604

(L)

main33332-0D090iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33332-52011iNGK11..STD¥12,600201209-201310

main33332-52011iNGK1#..CROSS,X,XLS,XS¥12,600201209-201604

(J)

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-34009iNGK11..STD¥1,550201209-201310

main90364-34009iNGK1#..CROSS,X,XLS,XS¥1,550201209-201604

(J)

main90364-S0004iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90364-T0030iNGK1#201301-201604

(L)

33332CSPACER (FOR 2ND GEAR BEARING)

main90560-34005iNGK1#¥70201209-201604

33333GEAR, 3RD

main33034-0D050iNGK1#201301-201604

(L)

main33034-0D100iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33034-52020iNGK11..STD¥11,600201209-201310

main33034-52020iNGK1#..CROSS,X,XLS,XS¥11,600201209-201604

(J)

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-34008iNGK1#¥1,530201209-201604

(J)

main90364-S0001iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90364-T0031iNGK1#201301-201604

(L)

33334GEAR, 4TH

main33035-0D030iNGK1#201301-201604

(L)

main33035-0D090iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33035-52040iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main33035-52040iNGK11..STD201209-201310

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-34008iNGK1#¥1,530201209-201604

(J)

main90364-S0001iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90364-T0031iNGK1#201301-201604

(L)

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-34005iNGK1#¥70201209-201604

main90560-37004iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥70201604-202103

33335GEAR, 1ST

main33335-0D050iNGK1#201301-201604

(L)

main33335-0D100iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33335-52040iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main33335-52040iNGK11..STD201209-201310

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-34007iNGK11..STD¥1,700201209-201310

main90364-34007iNGK1#..CROSS,X,XLS,XS¥1,700201209-201604

(J)

main90364-S0003iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main90364-T0029iNGK1#201301-201604

(L)

33336GEAR, 5TH

main33036-0D060iNGK1#201301-201604

(L)

main33036-0D160iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33036-52011iNGK11..STD¥14,300201209-201310

main33036-52011iNGK1#..CROSS,X,XLS,XS¥14,300201209-201604

(J)

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-S0001iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main90364-T0001iNGK11..STD¥1,530201209-201310

main90364-T0001iNGK1#..CROSS,X,XLS,XS¥1,530201209-201604

(J)

main90364-T0032iNGK1#201301-201604

(L)

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-31003iNGK1#¥70201209-201604

33336CRING, SHAFT SNAP (FOR 5TH GEAR)

main90520-29049iNGK1#¥90201209-201604

T=2.28,MARK 1

main90520-29050iNGK1#¥90201209-201604

T=2.34,MARK 2

main90520-29052iNGK1#¥90201209-201604

T=2.40,MARK 3

main90520-29053iNGK1#¥90201209-201604

T=2.46,MARK 4

main90520-29054iNGK1#¥90201209-201604

T=2.52,MARK 5

main90520-29055iNGK1#¥90201209-201604

T=2.58,MARK 6

33346BWASHER, 5TH GEAR THRUST

main33346-52010iNGK1#¥480201209-201604

33346CBALL (FOR 5TH GEAR THRUST WASHER)

main90360-05012iNGK1#¥100201209-201604

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0D050iNGK1#201301-201604

(L)

main33361-0D100iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33361-52012iNGK11..STD¥7,600201209-201310

main33361-52012iNGK1#..CROSS,X,XLS,XS¥7,600201209-201604

(J)

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-32014iNGK1#¥90201209-201604

T=2.28,MARK A

main90520-32015iNGK1#¥90201209-201604

T=2.34,MARK B

main90520-32016iNGK1#¥90201209-201604

T=2.40,MARK C

main90520-32017iNGK1#¥90201209-201604

T=2.46,MARK D

main90520-32018iNGK1#¥90201209-201604

T=2.52,MARK E

main90520-32019iNGK1#¥90201209-201604

T=2.58,MARK F

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0D050iNGK1#201301-201604

(L)

main33362-0D080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33362-52011iNGK11..STD¥5,200201209-201310

main33362-52011iNGK1#..CROSS,X,XLS,XS¥5,200201209-201604

(J)

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-32014iNGK1#¥90201209-201604

T=2.28,MARK A

main90520-32015iNGK1#¥90201209-201604

T=2.34,MARK B

main90520-32016iNGK1#¥90201209-201604

T=2.40,MARK C

main90520-32017iNGK1#¥90201209-201604

T=2.46,MARK D

main90520-32018iNGK1#¥90201209-201604

T=2.52,MARK E

main90520-32019iNGK1#¥90201209-201604

T=2.58,MARK F

main90520-35034iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥90201604-202103

T=2.27,MARK 0

main90520-35035iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.32,MARK 1

main90520-35036iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.37,MARK 2

main90520-35037iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.42,MARK 3

main90520-35038iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥90201604-202103

T=2.47,MARK 4

main90520-35039iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.52,MARK 5

main90520-35040iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.57,MARK 6

main90520-35041iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥90201604-202103

T=2.62,MARK 7

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0D030iNGK1#201301-201604

(L)

main33364-0D070iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33364-52011iNGK1#201209-201604

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-0D030iNGK1#201301-201604

(L)

main33365-20080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥180201604-202103

main33365-52010iNGK11..STD¥80201209-201310

main33365-52010iNGK1#..CROSS,X,XLS,XS¥80201209-201604

(J)

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-20080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥180201604-202103

main33366-0D030iNGK1#201301-201604

(L)

main33366-52010iNGK11..STD¥80201209-201310

main33366-52010iNGK1#..CROSS,X,XLS,XS¥80201209-201604

(J)

33367BRING, SYNCHRONIZER (FOR 1ST GEAR)

main33367-0D030iNGK1#201301-201604

(L)

main33367-52010iNGK11..STD¥3,490201209-201310

main33367-52010iNGK1#..CROSS,X,XLS,XS¥3,490201209-201604

(J)

33367CRING, SYNCHRONIZER (FOR 2ND GEAR)

main33367-0D040iNGK1#201301-201604

(L)

main33367-52020iNGK11..STD¥3,490201209-201310

main33367-52020iNGK1#..CROSS,X,XLS,XS¥3,490201209-201604

(J)

33368GRING, SYNCHRONIZER (FOR 3RD GEAR)

main33368-0D060iNGK1#201301-201604

(L)

main33368-52010iNGK11..STD¥2,910201209-201310

main33368-52010iNGK1#..CROSS,X,XLS,XS¥2,910201209-201604

(J)

33368HRING, SYNCHRONIZER (FOR 4TH GEAR)

main33368-0D070iNGK1#201301-201604

(L)

main33368-52020iNGK1#..CROSS,X,XLS,XS¥2,910201209-201604

(J)

main33368-52020iNGK11..STD¥2,910201209-201310

33368JRING, SYNCHRONIZER (FOR 5TH GEAR)

main33369-0D030iNGK1#201301-201604

(L)

main33369-52010iNGK1#..CROSS,X,XLS,XS¥2,910201209-201604

(J)

main33369-52010iNGK11..STD¥2,910201209-201310

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-52010iNGK1#¥90201209-201604

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-52010iNGK1#¥90201209-201604

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33371-52010iNGK1#¥90201209-201604

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-0D050iNGK1#201301-201604

(L)

main33393-0D080iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33393-52011iNGK1#..CROSS,X,XLS,XS¥4,500201209-201604

(J)

main33393-52011iNGK11..STD¥4,500201209-201310

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33365-20080iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥180201604-202103

main33394-0D030iNGK1#201301-201604

(L)

main33394-52010iNGK1#..CROSS,X,XLS,XS¥110201209-201604

(J)

main33394-52010iNGK11..STD¥110201209-201310

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-0D030iNGK1#201301-201604

(L)

main33395-0D090iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33395-52011iNGK1#201209-201604

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0D040iNGK1#201301-201604

(L)

main33402-0D100iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33402-52020iNGK11..STD¥9,800201209-201310

main33402-52020iNGK1#..CROSS,X,XLS,XS¥9,800201209-201604

(J)

33422BGEAR, 4TH DRIVEN

main33422-0D030iNGK1#201301-201604

(L)

main33422-0D090iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33422-52060iNGK1#..CROSS,X,XLS,XS201209-201604

(J)

main33422-52060iNGK11..STD201209-201310

33423AGEAR, 3RD DRIVEN

main33423-0D050iNGK1#201301-201604

(L)

main33423-0D100iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202103

main33423-52010iNGK1#..CROSS,X,XLS,XS¥6,700201209-201604

(J)

main33423-52010iNGK11..STD¥6,700201209-201310

33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)

main90520-27070iNGK1#¥90201209-201604

T=2.22,MARK A

main90520-27071iNGK1#¥90201209-201604

T=2.28,MARK B

main90520-27072iNGK1#¥90201209-201604

T=2.34,MARK C

main90520-27073iNGK1#¥90201209-201604

T=2.40,MARK D

main90520-27074iNGK1#¥90201209-201604

T=2.46,MARK E

main90520-27075iNGK1#¥90201209-201604

T=2.52,MARK F

main90520-27076iNGK1#¥90201209-201604

T=2.58,MARK G

main90520-27077iNGK1#¥90201209-201604

T=2.64,MARK H

main90520-27078iNGK1#¥90201209-201604

T=2.70,MARK J

33428CGEAR, 5TH DRIVEN

main33428-0D060iNGK1#201301-201604

(L)

main33428-0D160iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33428-52010iNGK11..STD¥10,000201209-201310

main33428-52010iNGK1#..CROSS,X,XLS,XS¥10,000201209-201604

(J)

33431BSPACER, OUTPUT SHAFT

main33431-0D030iNGK1#201301-201604

(L)

main33431-52010iNGK11..STD¥1,050201209-201310

sub33431-52020¥950

main33431-52010iNGK1#..CROSS,X,XLS,XS¥1,050201209-201604

(J)

sub33431-52020¥950

33451SHAFT, REVERSE IDLER GEAR

main33451-0D030iNGK1#201301-201604

(L)

main33451-20060iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥1,750201604-202103

main33451-52010iNGK11..STD¥890201209-201310

main33451-52010iNGK1#..CROSS,X,XLS,XS¥890201209-201604

(J)

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08150iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥110201604-202103

main90109-08097iNGK1#¥140201209-201604

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥70201209-202103

main90430-08010iNGK1#..CROSS,X,XLS,XS¥70201209-201604

(J)

main90430-T0012iNGK1#201301-201604

(L)

53 parts on this diagram · 2 diagrams in section
