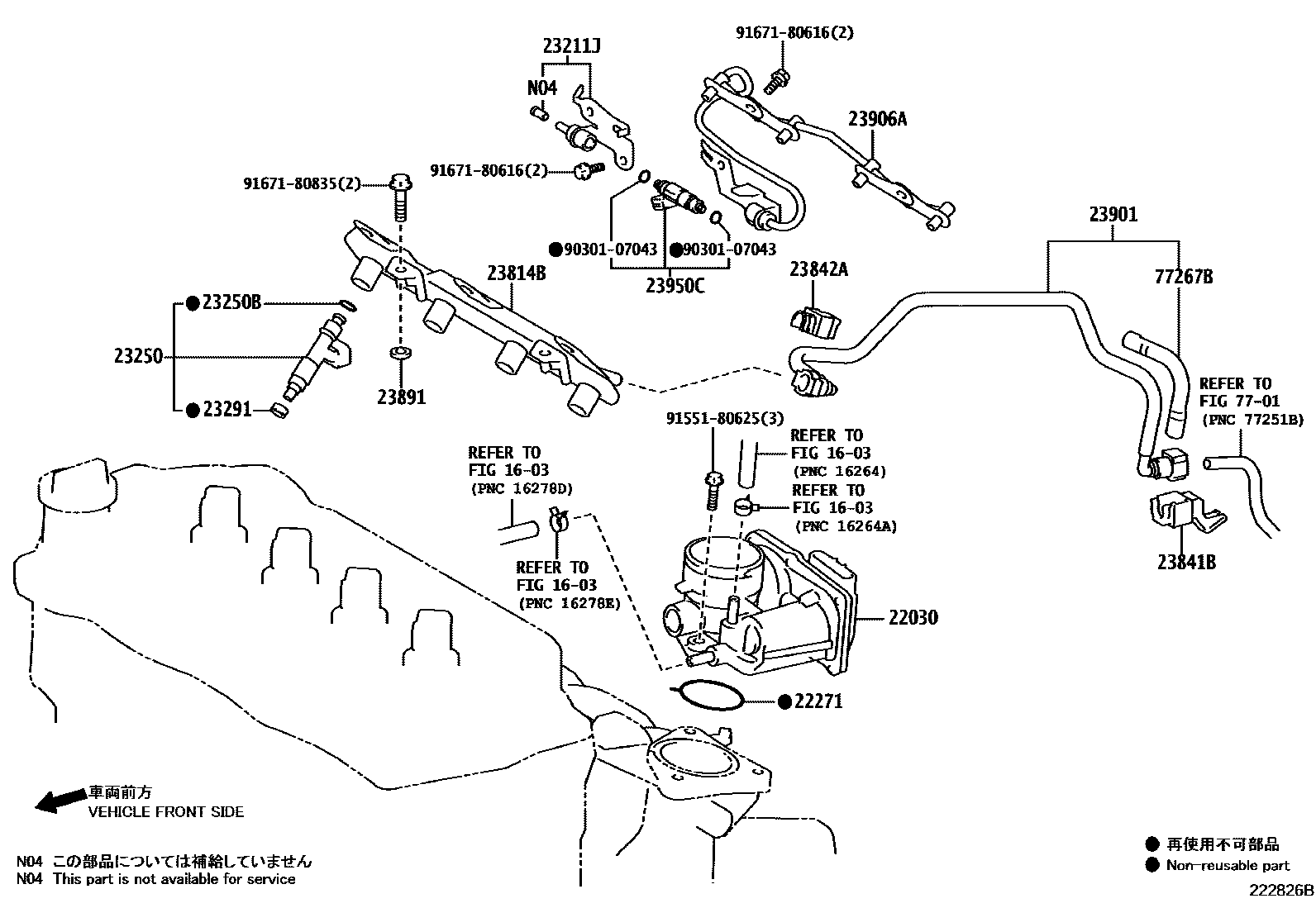

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NR#..NGK12..CROSS201604-201802

main22030-47040i1NRFBE,2NR#..NGK1#201209-201604

22271GASKET, THROTTLE BODY

main22271-0Y030i1NRFBE,2NR#..NGK1#201604

main22271-47030i1NRFBE,2NR#..NGK1#201209-201604

23211JBRACKET, SOLENOID VALVE

main23211-47020i1NRFBE,2NRFBE..NGK1#201209-201604

23250INJECTOR ASSY, FUEL

main23209-49215i2NRFE..NGK12,15201309-201604

main23209-49235i1NRFBE,2NRFBE..NGK1#201209-201604

main23209-49245i2NRFE..NGK12,15..X,XLS,XS201604-201802

main23209-49265i2NRFBE..NGK12..CROSS201604-201802

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1NRFBE,2NR#..NGK1#201209-201604

main90301-07037i2NR#..NGK12..CROSS201604-201802

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i1NRFBE,2NR#..NGK1#..X,XLS,XS201604-201802

main23291-47010i1NRFBE,2NR#..NGK1#201209-201604

23814BPIPE, FUEL DELIVERY

main23814-47010i1NRFBE,2NRFBE..NGK1#201209-201604

main23814-47030i2NRFE..NGK12,15201309-201604

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NRFBE,2NR#..NGK1#201209-201604

main23841-31070i2NRFE..NGK12,15;1NRFBE..NGK11..4FC;2NRFBE..NGK12..CROSS,XLS201604-202103

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-36010i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

main23842-47020i1NRFBE,2NR#..NGK1#201209-201604

23891SPACER, FUEL DELIVERY

main23891-47020i1NRFBE,2NRFBE..NGK1#201209-201604

main23891-47040i2NR#..NGK12..CROSS201604-201802

23901TUBE SUB-ASSY, FUEL

main23901-0Y040i1NRFBE,2NR#..NGK1#201209-201604

main23901-0Y130i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

23906AHOSE SUB-ASSY, FUEL

main23906-47010i1NRFBE,2NRFBE..NGK1#201209-201604

23950CVALVE ASSY, SOLENOID

main23950-47010i1NRFBE,2NRFBE..NGK1#201209-201604

7701

77267BPROTECTOR, FUEL TUBE, NO.2

main77267-47030iNGK1#201209-201604

9030107043

main90301-07043

9155180625

main91551-80625

9167180616

main91671-80616

9167180835

main91671-80835

20 parts on this diagram · 4 diagrams in section
