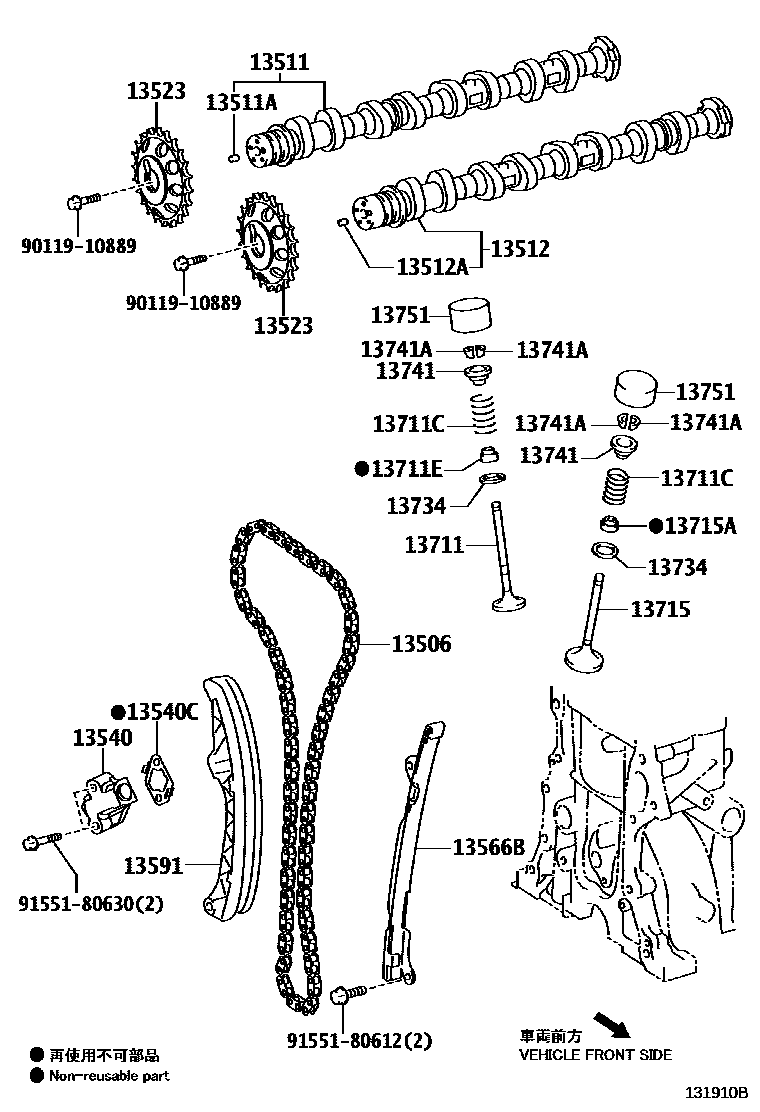

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=8,OD=5
13512CAMSHAFT, NO.2
13512APIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)
L=8,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711CSPRING, COMPRESSION(FOR OUTER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
9011910889
9155180612
9155180630
22 parts on this diagram · 2 diagrams in section
