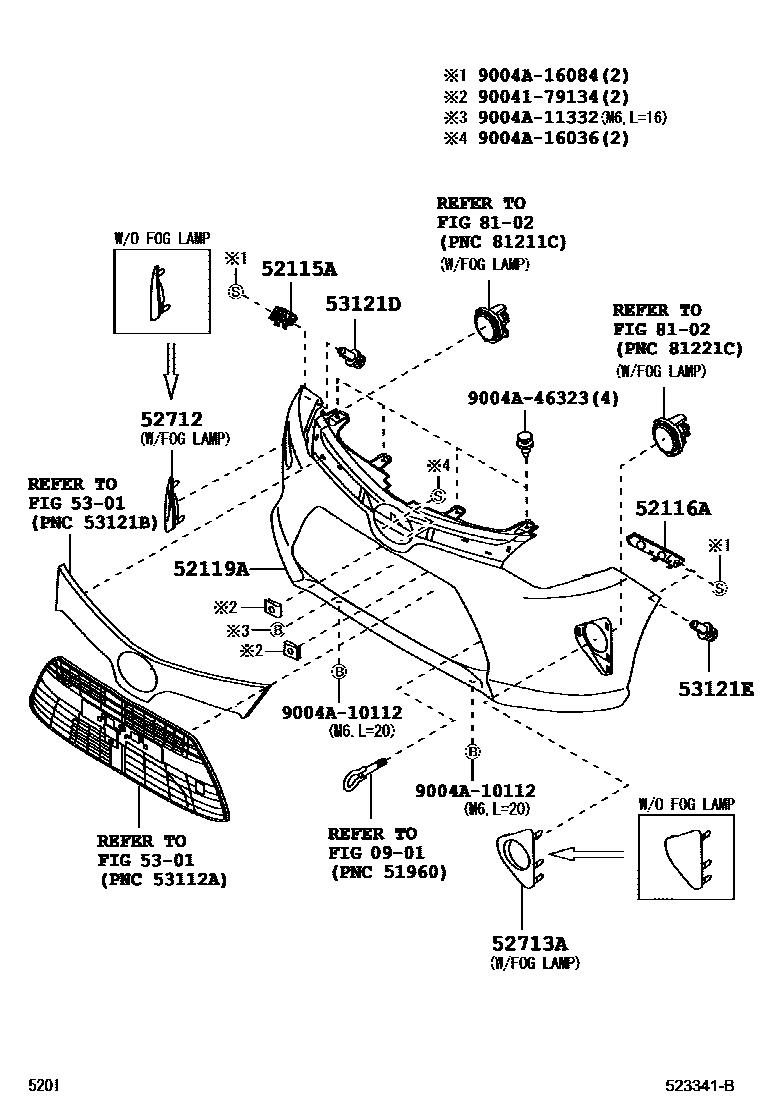

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

0901

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ180iB401201909-202207

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ190iB401201909-202207

52119ACOVER, FRONT BUMPER

main52119-BZL10iB401201606-201909

main52119-BZP90iB401..G;B401..5F..E202207

PAINT REQ.

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-BZ180iB401..E201606-201909

main52712-BZ190iB401..G201606-201909

main52712-BZ380iB401..E201909-202207

main52712-BZ390iB401..G201909-202207

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-BZ180iB401..E201606-201909

main52713-BZ190iB401..G201606-201909

main52713-BZ370iB401..5F..E202207

main52713-BZ380iB401..G202207

5301

53121DCLIP(FOR FRONT BUMPER), NO.2

main9004A-46380iB401..G;B401..5F..E202207

53121ECLIP(FOR FRONT BUMPER), NO.1

main9004A-46380iB401201909-202207

8102

9004179134

main90041-79134

9004A10112

main9004A-10112

9004A11332

main9004A-11332

9004A16036

main9004A-16036

9004A16084

main9004A-16084

9004A46323

main9004A-46323

16 parts on this diagram · 3 diagrams in section
