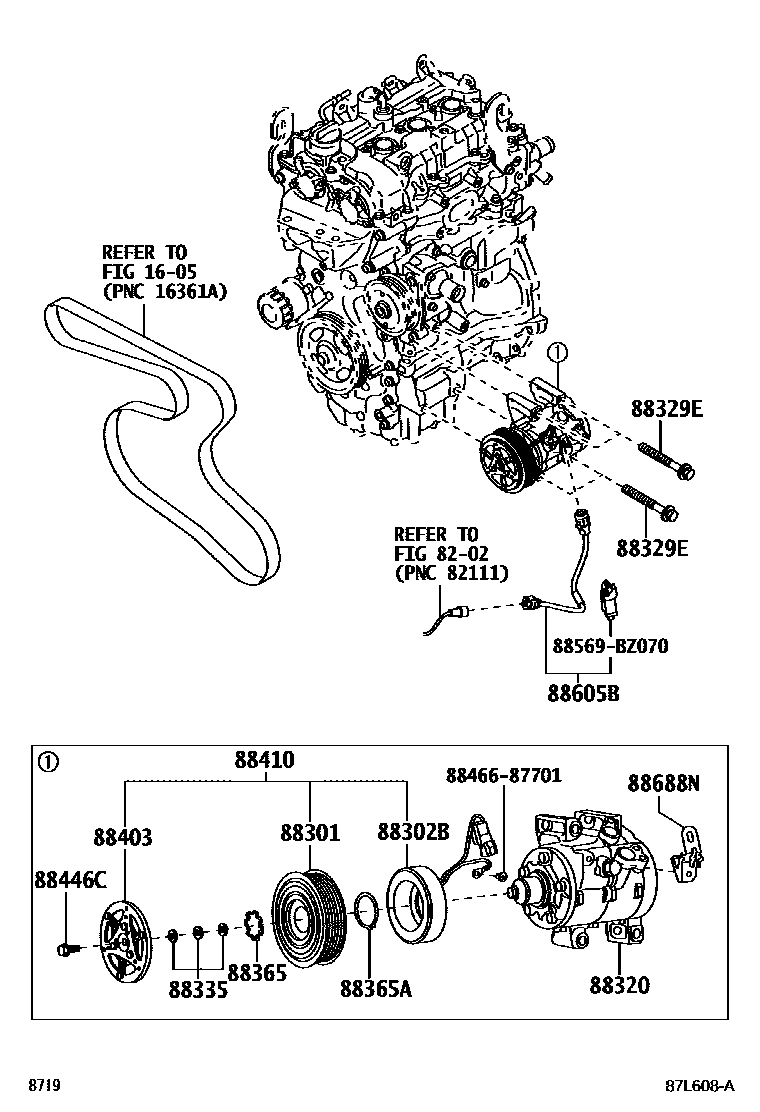

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1WAVE 0002 11KRVE

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ200iA351202303

main88412-BZ220iA350202306

88302BSTATOR, MAGNET CLUTCH

main88411-BZ310iA350202306

main88411-BZ320iA351202303

88320COMPRESSOR ASSY, COOLER

main88320-BZ380iA351202303

main88320-BZ450iA350202306

88329EBOLT, COMPRESSOR, NO.1

main91551-80880×4iA351202303

88335GASKET KIT, OVERHAUL

main88335-14020iA35#202303

88365RING, SNAP

main90099-07125iA35#202303

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iA35#202303

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iA35#202303

88410CLUTCH ASSY, MAGNET

main88410-BZ470iA350202306

main88410-BZ480iA351202303

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iA35#202303

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main82210-BZ040iA35#202303

88688NBRACKET, COOLER

main88688-BZ260iA350202306

main88688-BZ340iA351202303

8846687701

main88466-87701

88569BZ070CLAMP (FOR COOLER RELAY)

main88569-BZ070

16 parts on this diagram · 2 diagrams in section
