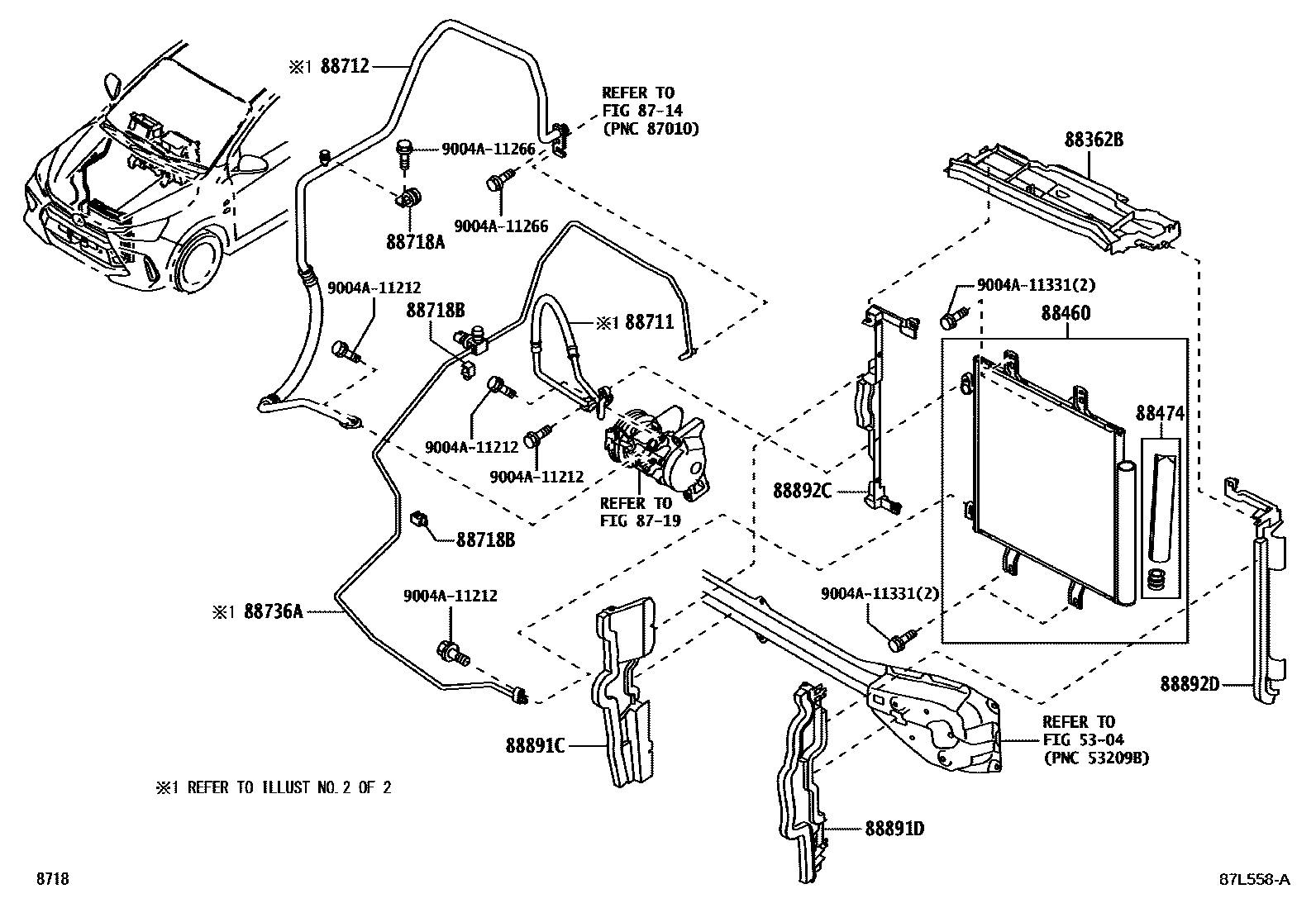

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1WAVE(CONDENSER) 0002 11KRVE(CONDENSER) 0003 1TUBE ASSY 0004 1WAVE(CONDENSER) 0005 1WAVE(TUBE ASSY) 0006 11KRVE(CONDENSER) 0007 11KRVE(TUBE ASSY)

5304

8714

8719

88362BPLATE, SEAL

main53039-BZ090iA35#202303

88460CONDENSER ASSY, COOLER

main88460-BZ410iA35#202303

88474DRYER, COOLER

main88474-B2010iA35#202303

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZA30iA351202303

main88711-BZA40iA350202306

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZ700iA351..RHD202303

main88712-BZ820iA351..LHD202303

main88712-BZB30iA350..RHD202306

main88712-BZB40iA350..LHD202306

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-BZ800iA35#202303

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-13060×2iA35#202303

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZJ90iA35#..RHD202303

main88716-BZK00iA35#..LHD202303

88891CPACKING C (FOR COOLER)

main53395-BZ040iA35#202303

88891DPACKING D (FOR COOLER)

main53396-BZ030iA35#202303

88892CPLATE, CONDENSER, NO.1

main53037-BZ090iA35#202303

88892DPLATE, CONDENSER, NO.2

main53038-BZ070iA35#202303

9004A11212

main9004A-11212

9004A11266

main9004A-11266

9004A11331

main9004A-11331

18 parts on this diagram · 7 diagrams in section
