MIRROR
8106
8202
8420
87810MIRROR ASSY, INNER REAR VIEW
LT.GRAY,TRIM2#
BLACK,TRIM2#
LT.GRAY,TRIM2#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
BLACK,TRIM2#
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-LAOS
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-LAOS
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-CAMBODIA
NO PAINT REQ.,DESTINATION PACKAGE(ASIA)-VIETNAM
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87915BCOVER, OUTER MIRROR, LOWER RH
87917BMIRROR, OUTER REAR VIEW, RH
DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
DESTINATION PACKAGE(ASIA)-VIETNAM
DESTINATION PACKAGE(ASIA)-LAOS
DESTINATION PACKAGE(ASIA)-CAMBODIA
8791ACOVER, OUTER MIRROR, RH NO.2
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-LAOS
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-VIETNAM
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-LAOS
NO PANIT REQ.,DESTINATION PACKAGE(ASIA)-CAMBODIA
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87945CCOVER, OUTER MIRROR, LOWER LH
87947BMIRROR, OUTER REAR VIEW, LH
DESTINATION PACKAGE(ASIA)-CAMBODIA
DESTINATION PACKAGE(ASIA)-VIETNAM
DESTINATION PACKAGE(ASIA)-BRUNEI,SRI LANKA
DESTINATION PACKAGE(ASIA)-LAOS
8794ACOVER, OUTER MIRROR, LH NO.2
63399B1020COVER, VISOR HOLDER HOLE
main63399-B1020
9004A14017
main9004A-14017
91671A0616
main91671-A0616

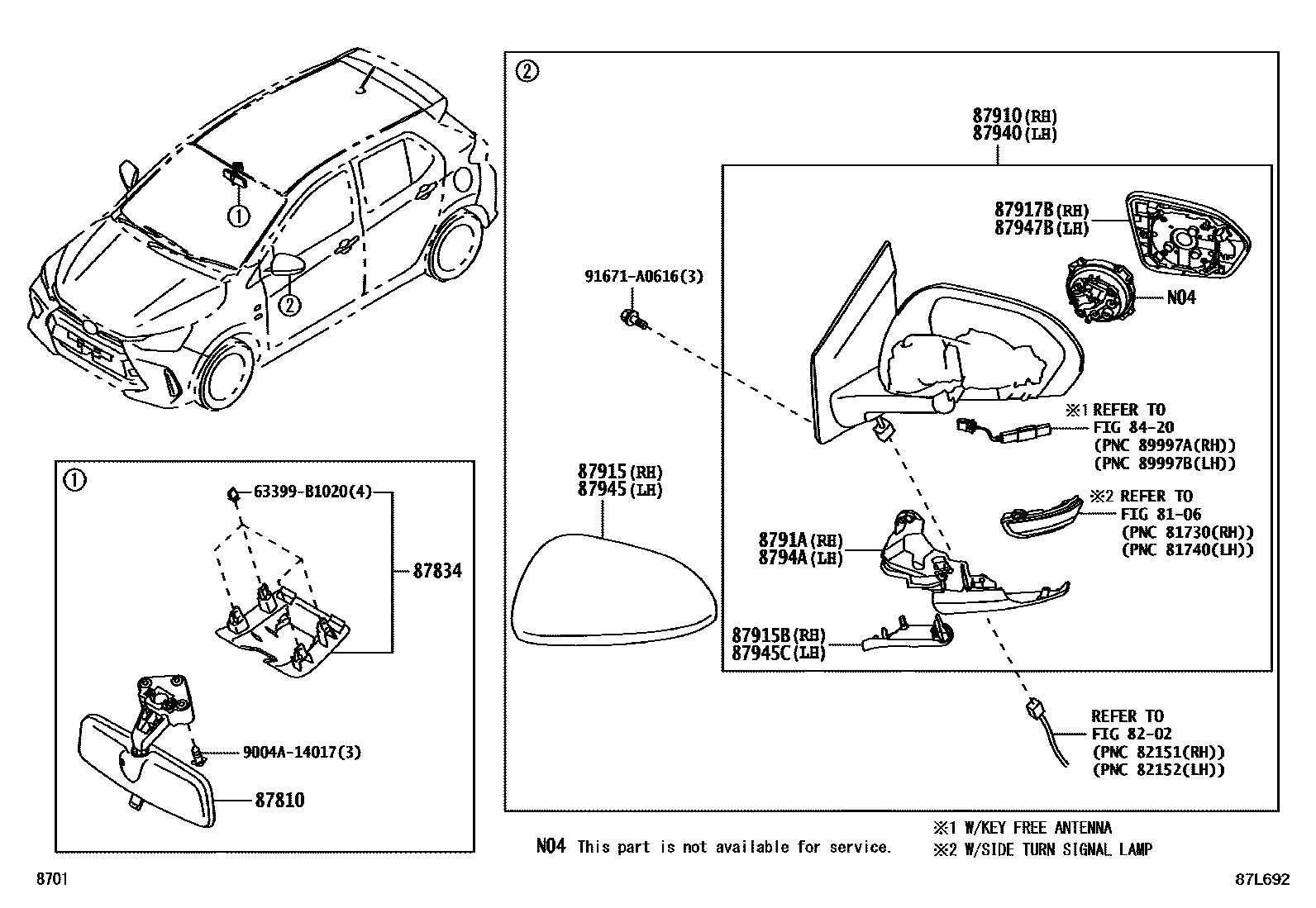

18 parts on this diagram · 2 diagrams in section
