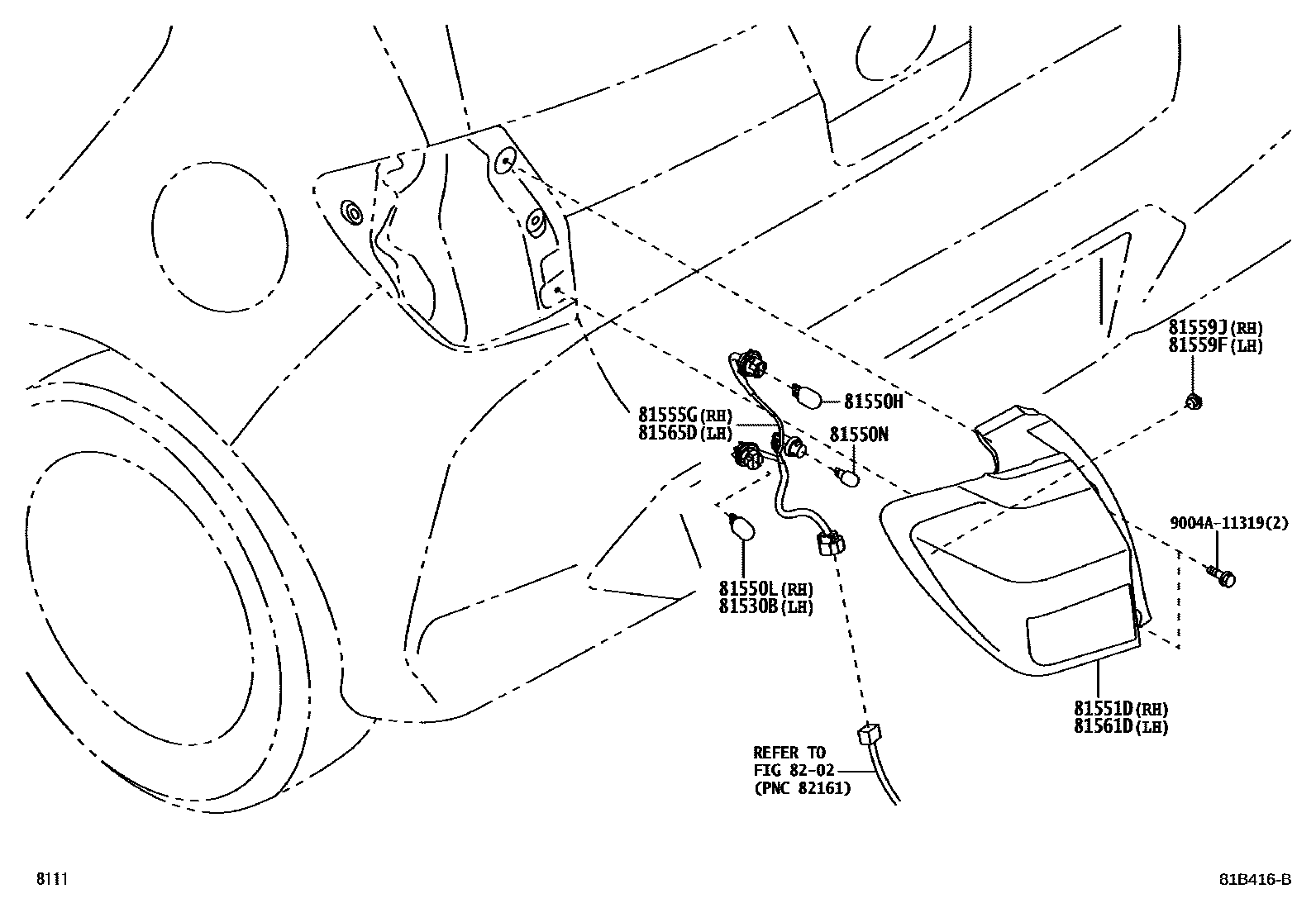

REAR COMBINATION LAMP

81530BBULB, REAR TURN SIGNAL LAMP

main9004A-81046iA35#202303

12V 21W

81550HBULB, TAIL & STOP LAMP

main9004A-81025×2iA35#202303

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main9004A-81046iA35#202303

12V 21W

81550NBULB, BACK UP LAMP

main9004A-81023×2iA35#202303

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-BZ620iA35#..N;A35#..E..GEN202303

main81551-BZ630iA35#..(E,G)..(IDN,PH)202303

DESTINATION PACKAGE(ASIA)-VIETNAM

81555GCORD, REAR COMBINATION LAMP, RH

main81555-BZ330iA35#202303

81559FCLIP, RR COMBINATION LAMP, LH

main81559-B2020iA35#202303

81559JCLIP, RR COMBINATION LAMP, RH

main81559-B2020iA35#202303

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-BZ610iA35#..N;A35#..E..GEN202303

main81561-BZ620iA35#..(E,G)..(IDN,PH)202303

DESTINATION PACKAGE(ASIA)-VIETNAM

81565DCORD, REAR COMBINATION LAMP, LH

main81565-BZ160iA35#202303

8202

9004A11319

main9004A-11319

12 parts on this diagram · 1 diagram in section
