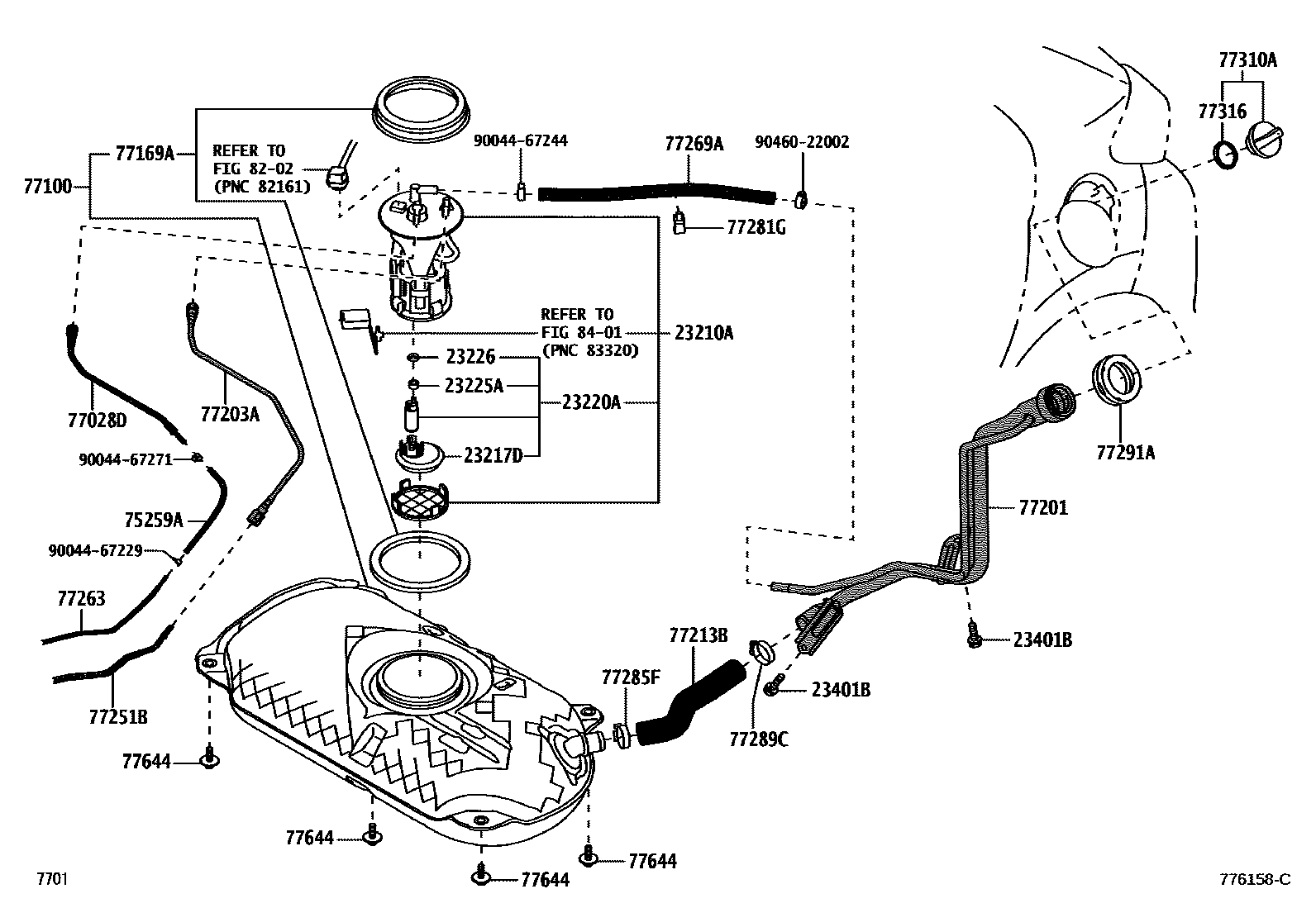

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1FUEL LID CABLE 0005 1FUEL LID CABLE

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-BZ270iWAVE,1KRVE..A35#202408

main23210-BZ271iWAVE,1KRVE..A35#202303-202407

23217DFILTER, FUEL PUMP

main23105-BZ020iWAVE,1KRVE..A35#202303

23220APUMP ASSY, FUEL W/FILTER

main23220-BZ050iWAVE,1KRVE..A35#202303

23225ASPACER, FUEL PUMP

main23225-BZ030iWAVE,1KRVE..A35#202303

23226RING, O(FOR FUEL PUMP)

main9004B-30027iWAVE,1KRVE..A35#202303

23401BBOLT

main90041-20137×2iWAVE,1KRVE..A35#202303

M8,L=20

75259AHOSE, FUEL

main77259-BZ120iA35#202303

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-BZ030iA35#202303

77100TANK ASSY, FUEL

main77001-BZ480iA35#202303

77169AGASKET, FUEL SUCTION TUBE SET

main77169-BZ040iA35#202303

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ290iA35#202303

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ200iA35#202303

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ240iA35#202303

77251BTUBE, FUEL MAIN

main77251-BZ370iA351..RHD202303

main77251-BZ380iA351..LHD202303

main77251-BZ480iA350..RHD202306

main77251-BZ490iA350..LHD202306

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-BZ310iA35#..RHD202303

main77263-BZ320iA35#..LHD202303

77269AHOSE, FUEL TANK BREATHER

main77269-BZ130iA35#202303

77281GCLAMP, FUEL HOSE

main77281-BZ040iA35#202303

77285FCLAMP, FUEL TUBE, NO.1

main90044-60129iA35#202303

77289CCLAMP, FUEL TUBE, NO.4

main90044-60129iA35#202303

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ050iA35#202303

77310ACAP ASSY, FUEL TANK

main77300-52030iA35#202303

77316GASKET, FUEL TANK CAP

main77316-52040iA35#202303

77644BOLT, FUEL TANK

main90041-20292×4iA35#202303

M8,L=29.5

8202

8401

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

9046022002

main90460-22002

29 parts on this diagram · 5 diagrams in section
