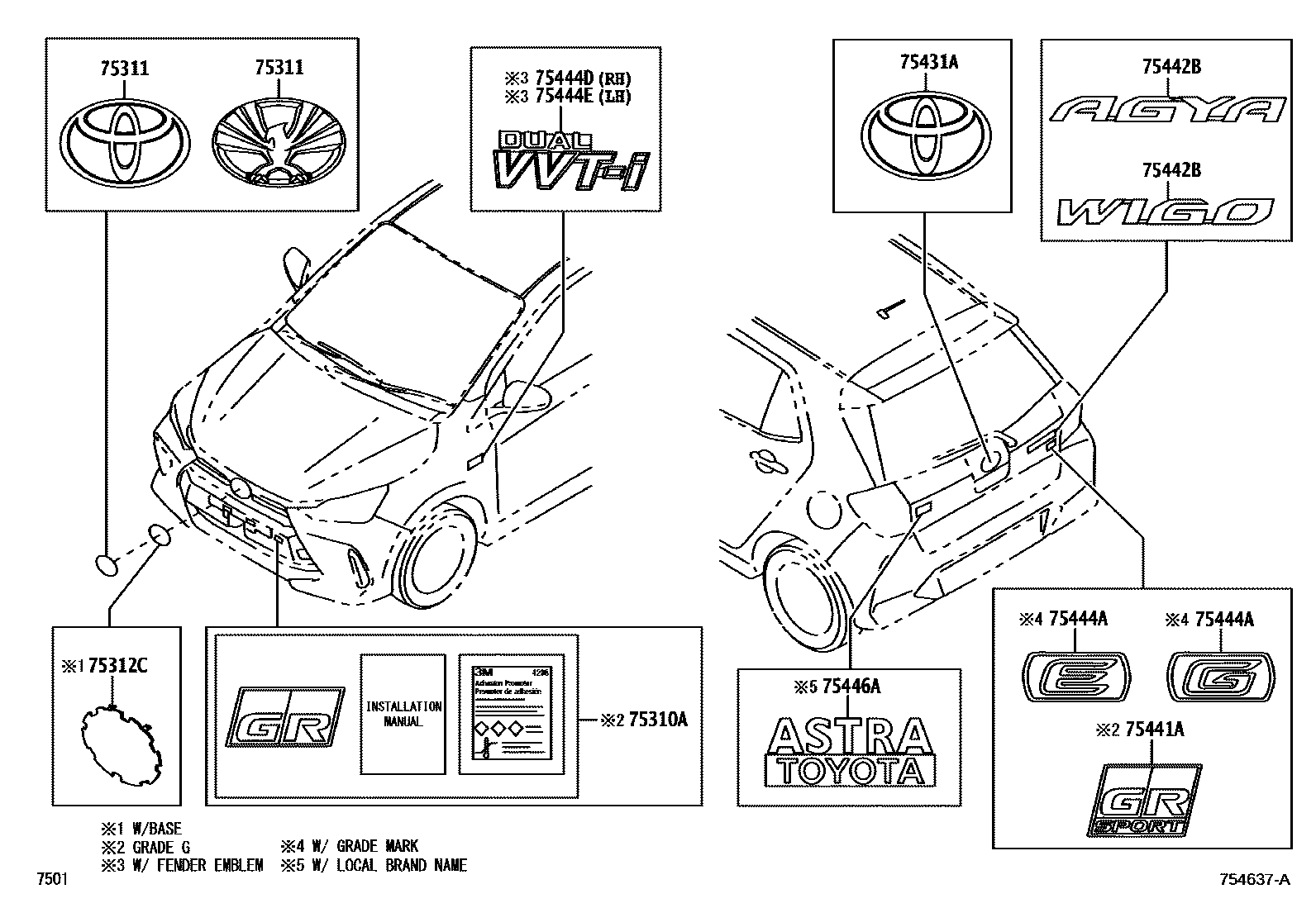

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main75444-BZC30iA351..G202303

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-BZ350iA351..(E,N)..IDN202303

main75311-BZ470iA351..G;A35#..GEN,PH202303

75312CBASE, FRONT BUMPER EMBLEM

main75312-BZ140iA351..G;A35#..GEN,PH202303

75431AEMBLEM, BACK DOOR, NO.1

main75311-BZ560iA35#202303

TOYOTA

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-BZ520iA351..G202303

GR SPORTS

75442BPLATE, BACK DOOR NAME, NO.2

main75442-BZ330iA351..IDN202303

AGYA

main75442-BZ330iA351..IDN202303

AGYA,DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR

main75442-BZ330iA351..IDN202303

AGYA,DESTINATION PACKAGE(OTHER-COSTA RICA

main75442-BZ330iA351..IDN202303

AGYA,DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)

main75442-BZ340iA35#..GEN,PH202303

WIGO

75444APLATE, BACK DOOR NAME, NO.4

main75444-BZ550iA350..CVT..N..PH;A35#..N..(GEN,IDN)202303

E

main75444-BZ560iA35#..E202303

G

75444DPLATE, FRONT FENDER, RH

main75443-BZ410iA351..(E,N)..IDN202303

DUAL VVT-I

75444EPLATE, FRONT FENDER, LH

main75443-BZ410iA351..(E,N)..IDN202303

DUAL VVT-I

75446APLATE, BACK DOOR NAME, NO.6

main75446-BZ120iA351..(E,N)..IDN202303

ASTRA TOYOTA

10 parts on this diagram · 1 diagram in section
