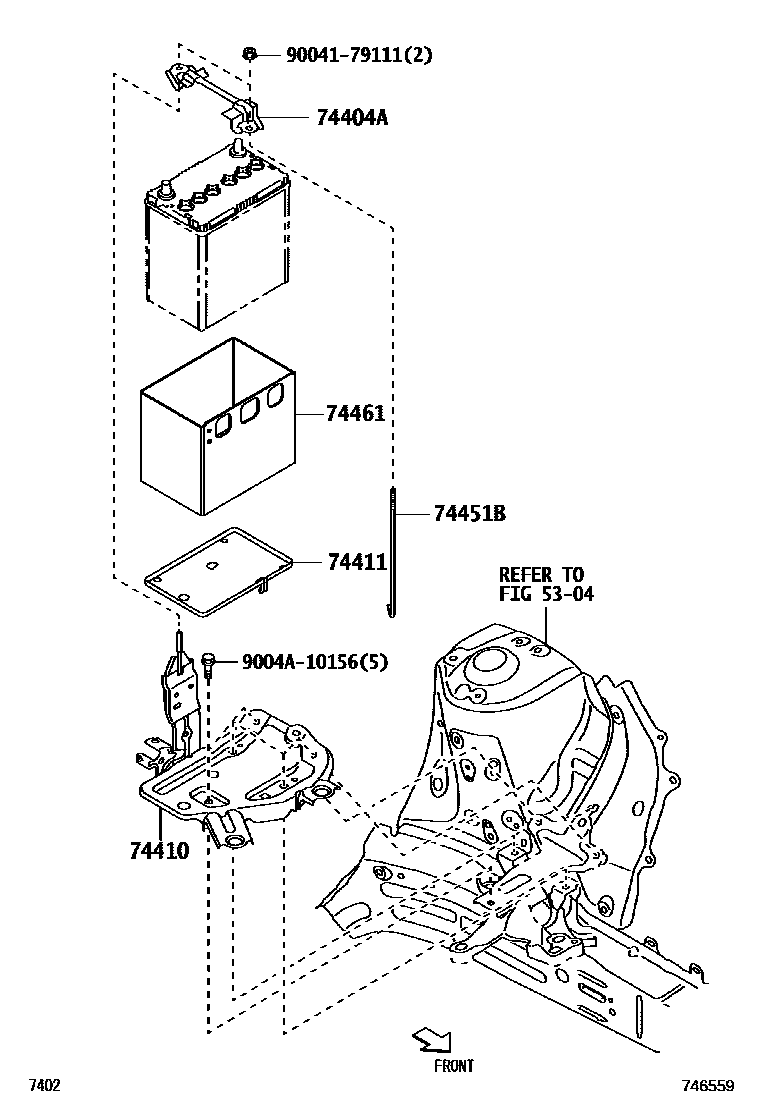

BATTERY CARRIER

5304

74404ACLAMP SUB-ASSY, BATTERY

main74404-BZ190iA35#202303

74410CARRIER ASSY, BATTERY

main74410-BZ060iA350202306

main74410-BZ070iA351202303

74411CARRIER, BATTERY

main74411-BZ160iA35#202303

74451BBOLT, BATTERY CLAMP

main74451-BZ150iA35#202303

74461COVER, BATTERY

main74405-BZ070iA35#202303

9004179111

main90041-79111

9004A10156

main9004A-10156

8 parts on this diagram · 1 diagram in section
