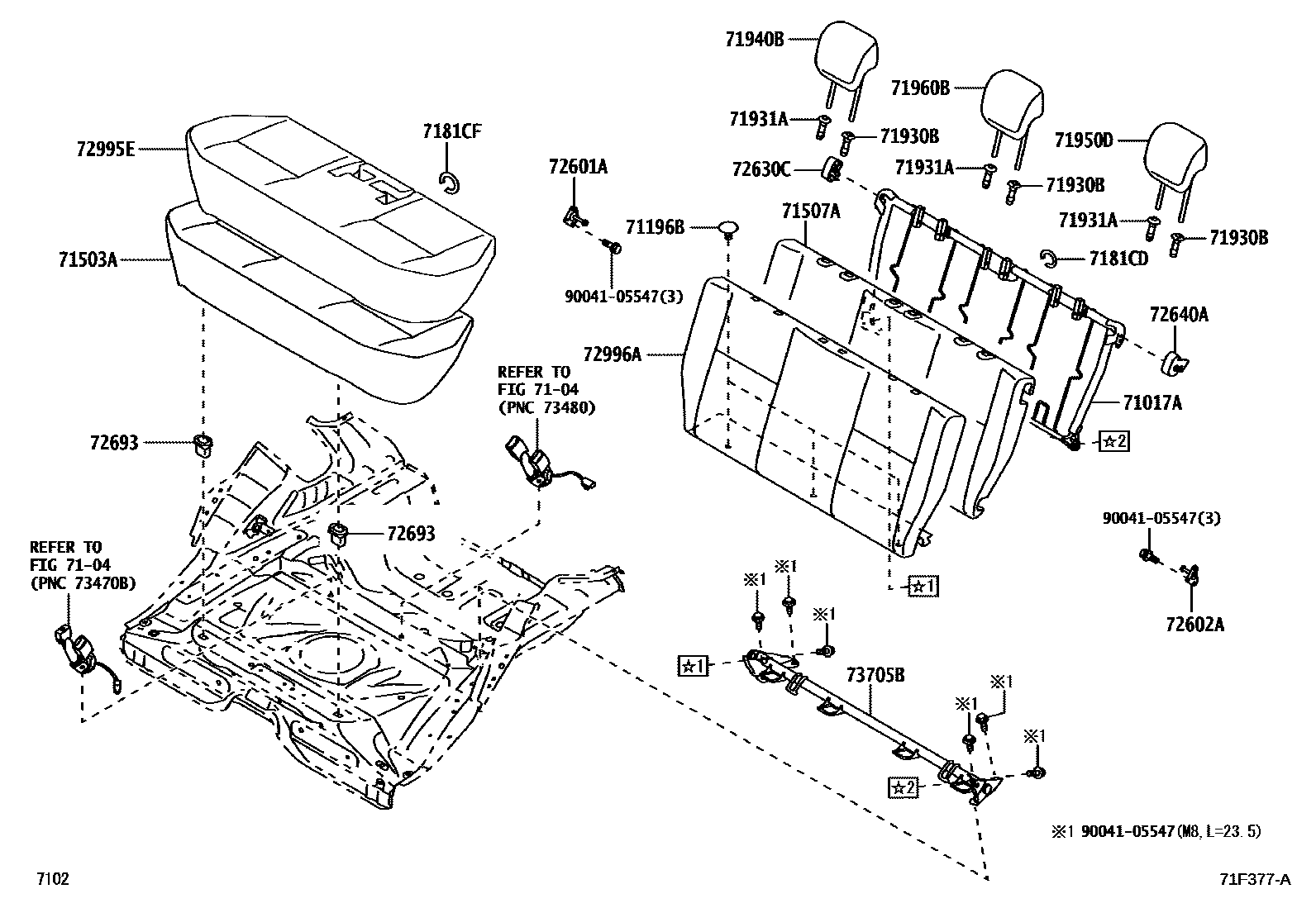

REAR SEAT & SEAT TRACK

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-BZ450iA35#202303

7104

71196BCLIP, REAR SEATBACK COVER

main90044-67414-C0×3iA35#202303

-

sub90044-67467

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-BZ680iA35#202303

71507APAD SUB-ASSY, REAR SEATBACK

main71507-BZ620iA35#202303

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main90468-18008×9iA35#202303

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main90468-18008×38iA35#202303

71930BSUPPORT ASSY, REAR SEAT HEADREST

main71930-0K050-C1×3iA35#202303

BLACK,TRIM2#

71931ASUPPORT, REAR SEAT HEADREST

main71931-0K040-C1×3iA35#202303

W/O(LOCK),BLACK,TRIM2#

71940BHEADREST ASSY, REAR SEAT, RH

main71940-BZE40-C0iA35#202303

BLACK,TRIM2#

71950DHEADREST ASSY, REAR SEAT, LH

main71940-BZE40-C0iA35#202303

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-BZ300-C0iA35#202303

BLACK,TRIM2#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-BZ100iA35#202303

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-BZ100iA35#202303

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-BZ040-C0iA35#202303

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-BZ050-C0iA35#202303

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-B1010×2iA35#202303

72995ECOVER, REAR SEAT CUSHION

main71075-BZP60-C1iA350..LHD..N202306

-,TRIM2#

main71075-BZP70-C1iA350..E;A350..RHD;A351..E,N202303

-,TRIM2#

main71075-BZS30-C2iA351..G202303

BLACK,TRIM2#

72996ACOVER, REAR SEATBACK

main71077-BZP20-C0iA350..LHD..N202306

-,TRIM2#

main71077-BZP30-C0iA350..E;A350..RHD;A351..E,N202303

-,TRIM2#

main71077-BZS10-C2iA351..G202303

BLACK,TRIM2#

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-BZ120iA35#202303

9004105547

main90041-05547

21 parts on this diagram · 1 diagram in section
