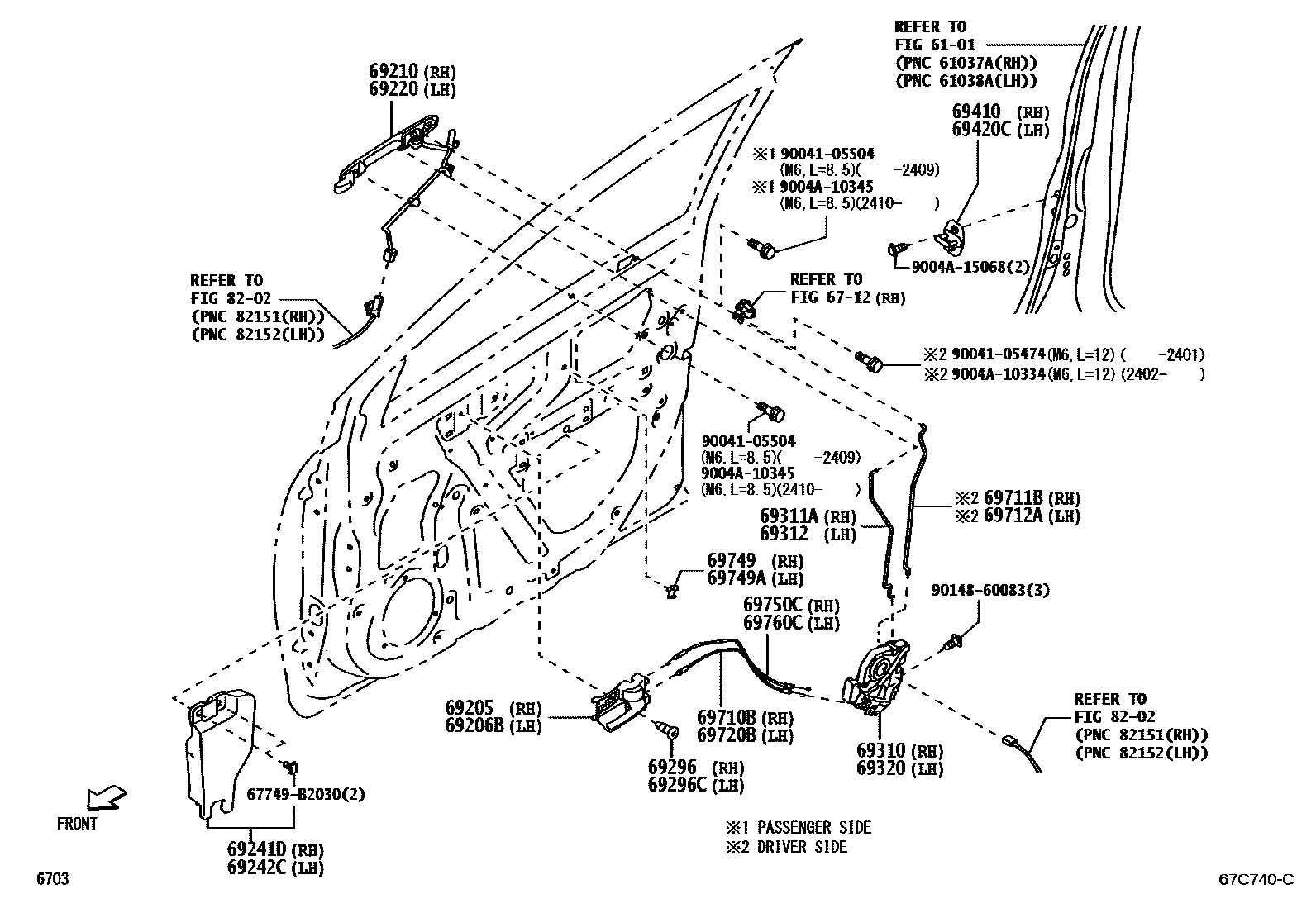

FRONT DOOR LOCK & HANDLE

6101

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ150-C0iA350..5F..PH202306

BLACK,TRIM2#

main69270-BZ160-C0iA35#..GEN,IDN;A350..CVT..PH202303

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ150-C0iA350..5F..PH202306

BLACK,TRIM2#

main69280-BZ160-C0iA35#..GEN,IDN;A350..CVT..PH202303

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ820-A0iA351..E..IDN202303

WHITE,W09

main69210-BZ820-B0iA351..E..IDN202303

SILVER ME.,S28

main69210-BZ820-B1iA351..E..IDN202303

GRAY ME.,1G3

main69210-BZ820-C0iA351..(E,G)..IDN202303

BLACK,X13

main69210-BZ820-D1iA351..E..IDN202303

RED M.M.,R79 ,XL4

main69210-BZ820-D2iA351..E..IDN202303

ORANGE ME.,R80

main69210-BZ820-F0iA351..(E,G)..IDN202303

YELLOW SE.,Y13

main69210-BZ830-A0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,WHITE,W09

main69210-BZ830-B0iA350..E..PH202306

SILVER ME.,S28

main69210-BZ830-B1iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-LAOS,GRAY ME.,1G3

main69210-BZ830-D0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-LAOS,RED M.M.,R79

main69210-BZ830-D1iA350..E..PH202306

ORANGE ME.,R80

main69210-BZ830-F0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,YELLOW SE.,Y13

main69210-BZA40-A0iA35#..RHD..N;A351..RHD..GEN202303

WHITE,W09

main69210-BZA40-B0iA35#..RHD..N;A351..RHD..GEN202303

SILVER ME.,S28

main69210-BZA40-B1iA35#..RHD..N;A351..RHD..GEN202303

GRAY ME.,1G3

main69210-BZA40-C0iA35#..RHD..N;A351..RHD..GEN202303

BLACK,X13

main69210-BZA40-D1iA35#..RHD..N;A351..RHD..GEN202303

RED M.M.,R79

main69210-BZA40-D2iA35#..RHD..N;A351..RHD..GEN202303

ORANGE ME.,R80

main69210-BZA40-F0iA35#..RHD..N;A351..RHD..GEN202303

YELLOW SE.,Y13

main69210-BZA50-A0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

WHITE,W09

main69210-BZA50-B0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

SILVER ME.,S28

main69210-BZA50-B1iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

GRAY ME.,1G3

main69210-BZA50-C0iA35#..LHD..GEN202303

BLACK,X13

main69210-BZA50-D0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

RED M.M.,R79

main69210-BZA50-D1iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

ORANGE ME.,R80

main69210-BZA50-F0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

YELLOW SE.,Y13

main69210-BZ830-C0iA350..CVT..E..GEN202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,BLACK,X13

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ720-A0iA351..E..IDN202303

WHITE,W09

main69220-BZ720-B0iA351..E..IDN202303

SILVER ME.,S28

main69220-BZ720-B1iA351..E..IDN202303

GRAY ME.,1G3

main69220-BZ720-C0iA351..(E,G)..IDN202303

BLACK,X13

main69220-BZ720-D1iA351..E..IDN202303

RED M.M.,R79 ,XL4

main69220-BZ720-D2iA351..E..IDN202303

ORANGE ME.,R80

main69220-BZ720-F0iA351..(E,G)..IDN202303

YELLOW SE.,Y13

main69220-BZ820-A0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,WHITE,W09

main69220-BZ820-B0iA350..E..PH202306

SILVER ME.,S28

main69220-BZ820-B1iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-LAOS,GRAY ME.,1G3

main69220-BZ820-D0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-LAOS,RED M.M.,R79

main69220-BZ820-D1iA350..E..PH202306

ORANGE ME.,R80

main69220-BZ820-F0iA350..E..PH202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,YELLOW SE.,Y13

main69220-BZA10-A0iA35#..RHD..N;A351..RHD..GEN202303

WHITE,W09

main69220-BZA10-B0iA35#..RHD..N;A351..RHD..GEN202303

SILVER ME.,S28

main69220-BZA10-B1iA35#..RHD..N;A351..RHD..GEN202303

GRAY ME.,1G3

main69220-BZA10-C0iA35#..RHD..N;A351..RHD..GEN202303

BLACK,X13

main69220-BZA10-D1iA35#..RHD..N;A351..RHD..GEN202303

RED M.M.,R79

main69220-BZA10-D2iA35#..RHD..N;A351..RHD..GEN202303

ORANGE ME.,R80

main69220-BZA10-F0iA35#..RHD..N;A351..RHD..GEN202303

YELLOW SE.,Y13

main69220-BZA20-A0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

WHITE,W09

main69220-BZA20-B0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

SILVER ME.,S28

main69220-BZA20-B1iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

GRAY ME.,1G3

main69220-BZA20-C0iA35#..LHD..GEN202303

BLACK,X13

main69220-BZA20-D0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

RED M.M.,R79

main69220-BZA20-D1iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

ORANGE ME.,R80

main69220-BZA20-F0iA351..LHD;A350..LHD..5F;A350..CVT..N..PH;A350..LHD..CVT..GEN202303

YELLOW SE.,Y13

main69220-BZ820-C0iA350..CVT..E..GEN202306

DESTINATION PACKAGE(ASIA)-CAMBODIA,BLACK,X13

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-BZ100iA35#202303

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-BZ100iA35#202303

69296SCREW, DOOR INSIDE HANDLE

main9004A-16093iA35#202303

69296CSCREW, DOOR INSIDE HANDLE

main9004A-16093iA35#202303

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ270iA35#..RHD202303

main69310-BZ390iA35#..LHD202303

main69310-BZ550iA351..LHD..E;A350..LHD..5F..N..GEN202303

DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR

main69310-BZ560iA350..RHD202306

DESTINATION PACKAGE(ASIA)-RHD ASIA

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-BZ200iA35#202303

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-BZ200iA35#202303

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ230iA35#..RHD202303

main69320-BZ360iA35#..LHD202303

main69320-BZ530iA351..LHD..E;A350..LHD..5F..N..GEN202303

DESTINATION PACKAGE(OTHER-PERU,BOLIVIA,ECUADOR

main69320-BZ540iA350..RHD202306

DESTINATION PACKAGE(ASIA)-RHD ASIA

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010iA35#202303

69420CPLATE ASSY, DOOR LOCK STRIKER

main69410-BZ010iA35#202303

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-BZ230iA35#202303

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ210iA35#..RHD202303

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ130iA35#..LHD202303

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-BZ230iA35#202303

69749CLAMP, FRONT DOOR LOCK LINK

main69749-BZ100iA35#202303

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-BZ100iA35#202303

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-BZ220iA35#202303

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-BZ220iA35#202303

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030

9004105474

main90041-05474

9004105504

main90041-05504

9004A10334

main9004A-10334

9004A10345

main9004A-10345

9004A15068

main9004A-15068

9014860083

main90148-60083

32 parts on this diagram · 1 diagram in section
