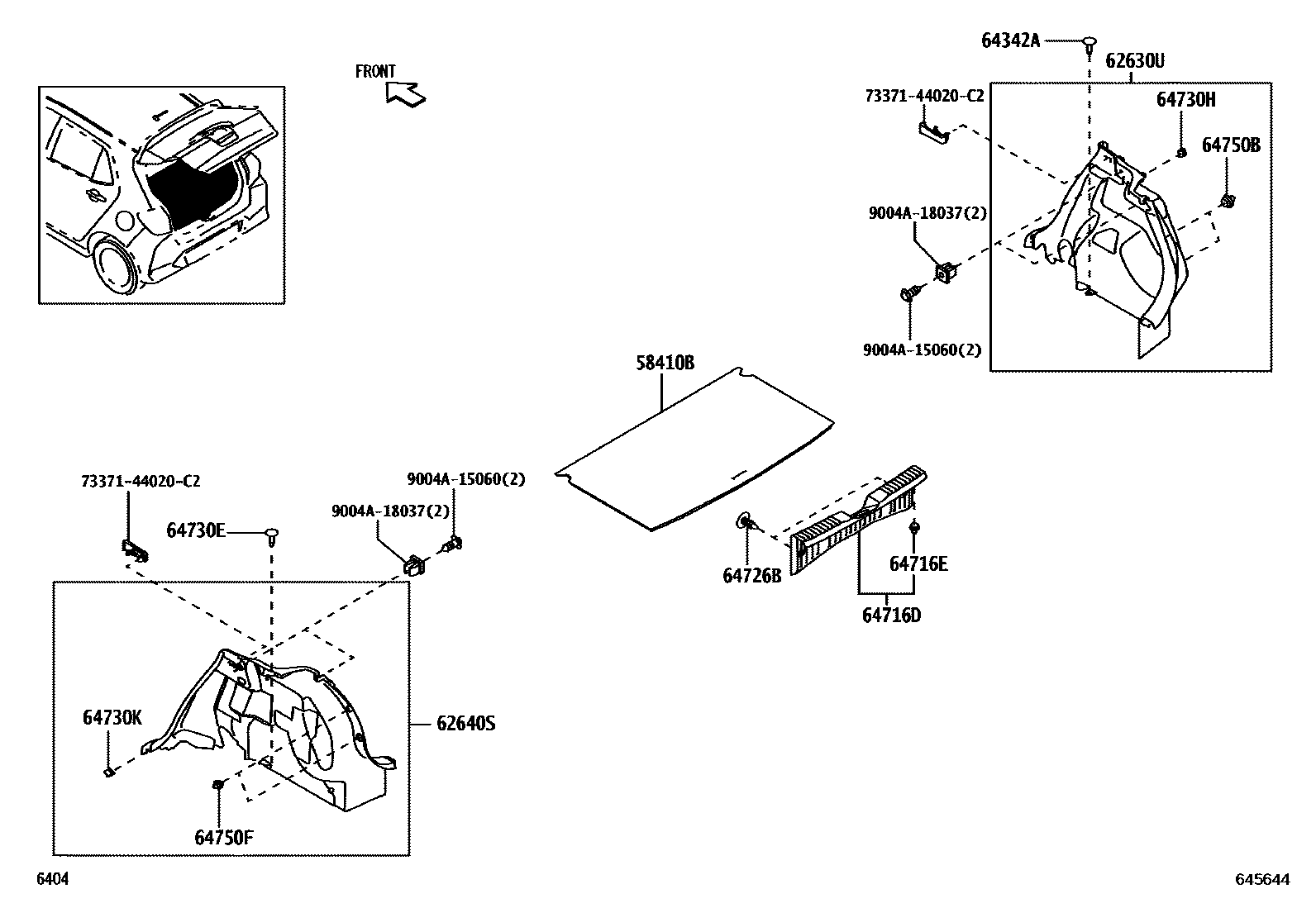

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-BZ370-C0iA35#..E,N202303

BLACK,TRIM2#

main58410-BZ400-C0iA351..G202303

BLACK,TRIM2#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-BZ090-C0iA35#202303

BLACK,TRIM2#

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-BZ090-C0iA35#202303

BLACK,TRIM2#

64342ACLIP

main90044-68046-C2iA35#202303

BLACK,TRIM2#

64716DCOVER, DECK TRIM, REAR

main64716-BZ130-C0iA35#202303

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main9004A-46338×4iA35#202303

64726BCLIP, DECK REAR TRIM

main90044-68046-C2×2iA35#202303

BLACK,TRIM2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90044-68046-C2iA35#202303

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main9004A-46308iA35#202303

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main9004A-46308iA35#202303

64750BRETAINER(FOR DECK SIDE TRIM PANEL)

main90467-10161×2iA35#202303

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×2iA35#202303

7337144020C2HANGER, REAR SEAT SHOULDER BELT, RH

main73371-44020C2

9004A15060

main9004A-15060

9004A18037

main9004A-18037

15 parts on this diagram · 2 diagrams in section
