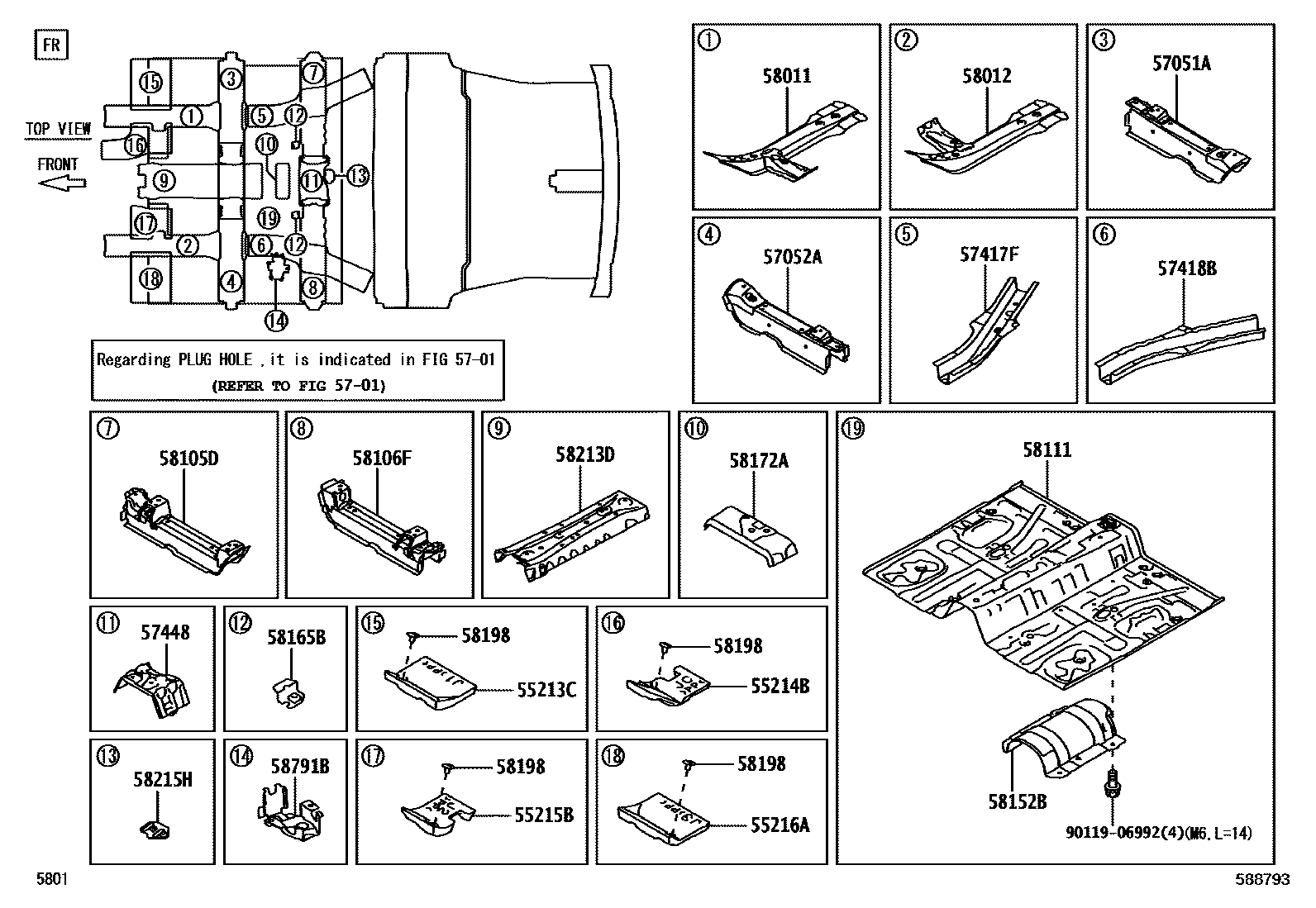

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT 0002 1FRONT 0003 1REAR

55213CPAD, DASH PANEL INSULATOR, NO.2

main55213-BZ050iA35#202303

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ200iA35#..5F;A35#..LHD..CVT202303

main55214-BZ210iA35#..RHD..CVT202303

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ190iA35#202303

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-BZ130iA35#202303

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ330iA35#202303

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ270iA35#..RHD202303

main57052-BZ280iA35#..LHD202303

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-BZ120iA35#202303

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-BZ020iA35#202303

57448RETAINER, CENTER FLOOR CROSSMEMBER

main57055-BZ050iA35#202303

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-BZ090iA35#202303

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-BZ090iA35#202303

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-BZ170iA35#202303

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-BZ060iA35#202303

58111PAN, FRONT FLOOR

main58111-BZ450iA35#202303

58152BINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58151-BZ050iA351202303

main58151-BZ130iA350202306

58165BCOVER, FRONT FLOOR, RH

main58165-BZ030×4iA35#202303

58172APLATE, PARKING BRAKE MOUNTING

main46521-BZ060iA35#202303

58198CLIP, FOOTREST

main9004A-46131-C1×4iA35#202303

BLACK

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-BZ210iA35#202303

58215HRETAINER, FRONT FLOOR

main58215-BZ040iA35#202303

58791BCARRIER, JACK

main58791-BZ090iA35#202303

9011906992

main90119-06992

23 parts on this diagram · 3 diagrams in section
