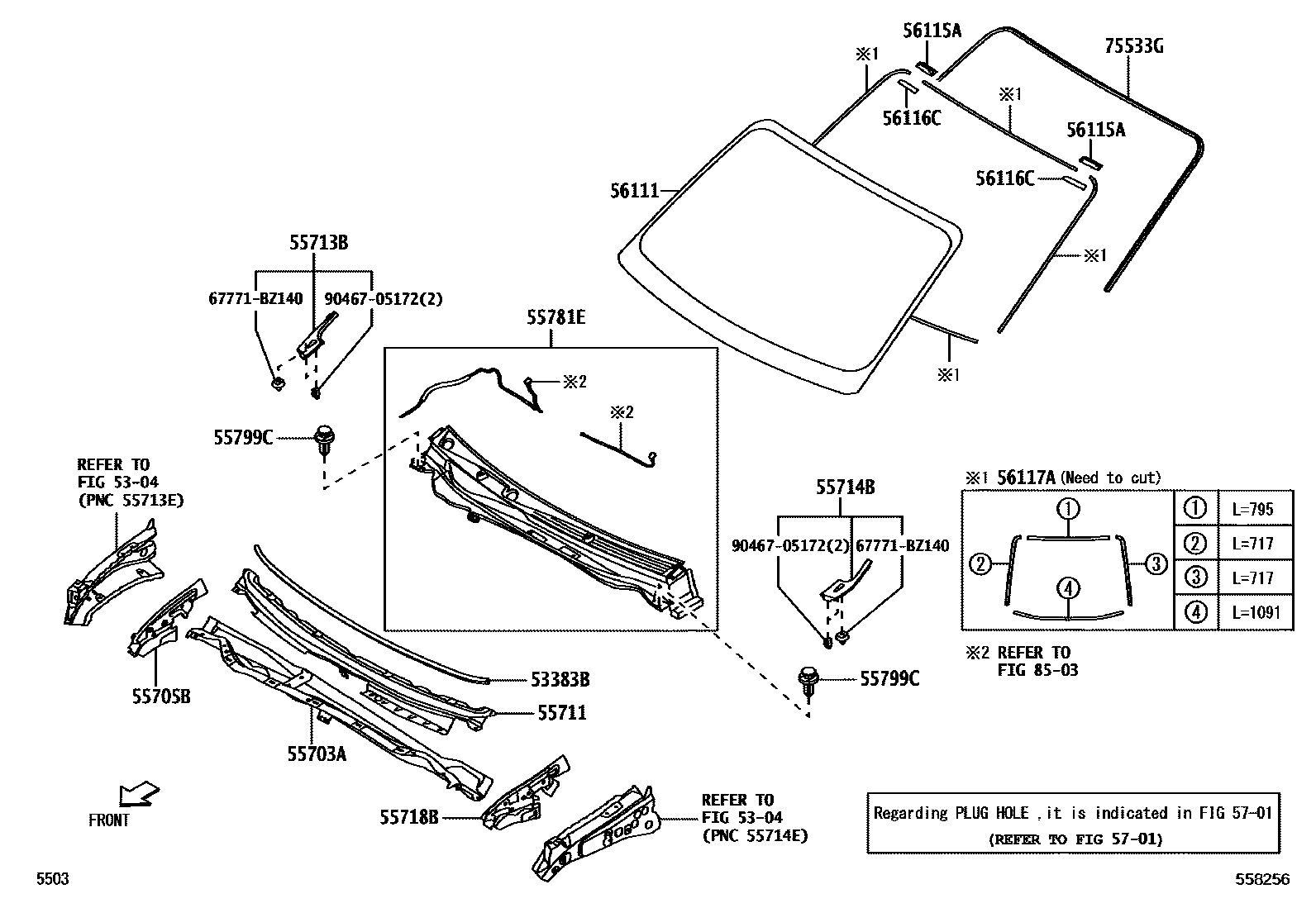

COWL PANEL & WINDSHIELD GLASS

5304

53383BSEAL, HOOD TO COWL TOP

main53383-BZ190iA35#202303

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ820iA35#..RHD..CVT202303

main55703-BZ830iA35#..RHD..5F202303

main55703-BZ840iA351..LHD..CVT202303

main55703-BZ850iA351..5F..GEN202303

main55703-BZ890iA350..LHD..CVT202306

main55703-BZA00iA350..LHD..5F202306

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-BZ120iA35#..RHD202303

main55717-BZ110iA35#..LHD202303

55711PANEL, COWL TOP, OUTER

main55701-BZ320iA35#..RHD202303

main55701-BZ330iA35#..LHD202303

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-BZ160iA35#202303

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-BZ160iA35#202303

55718BPANEL, COWL TOP SIDE, INNER LH

main55706-BZ110iA35#..LHD202303

main55718-BZ110iA35#..RHD202303

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ230iA35#..RHD202303

main55708-BZ240iA35#..LHD202303

55799CCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323×2iA35#202303

56111GLASS, WINDSHIELD

main56111-BZD10iA35#202303

ASAHIMAS

main56111-BZG10iA35#202303

MULIA

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402×2iA35#202303

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iA35#202303

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ300iA35#202303

L=3320

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-BZ230iA35#202303

8503

67771BZ140WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-BZ140

9046705172

main90467-05172

19 parts on this diagram · 1 diagram in section
