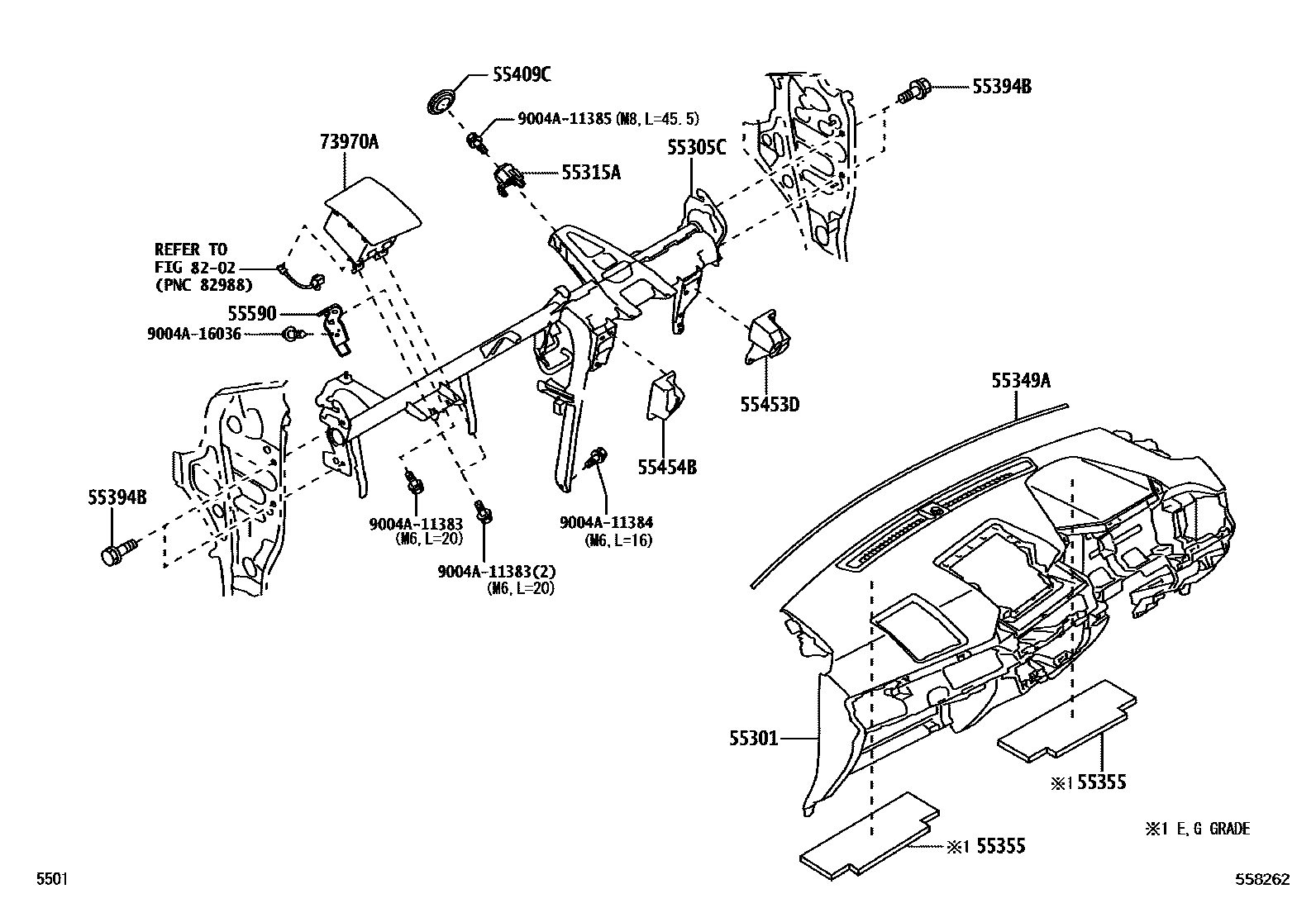

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZB90-C0iA351..IDN202303

BLACK,TRIM2#

main55311-BZC00-C0iA35#..RHD..GEN202306

BLACK,TRIM2#

main55311-BZC20-C0iA350..PH202306

DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)&HEATER-W/O,BLACK,TRIM2#

main55311-BZC30-C0iA35#..LHD..GEN202303

BLACK,TRIM2#

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-BZD40iA35#..RHD..5F202303

main55305-BZD50iA35#..RHD..CVT202303

main55305-BZD60iA35#..LHD..5F202303

main55305-BZD70iA35#..LHD..CVT202303

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iA35#202303

55349ACUSHION, INSTRUMENT PANEL

main55349-BZ140iA35#202303

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ230×2iA35#..E,G202303

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4iA35#202303

55409CPLUG, HOLE

main90048-71319iA35#202303

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ230iA35#..LHD202303

main55453-BZ260iA35#..RHD202303

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ220iA35#..RHD202303

main55454-BZ230iA35#..LHD202303

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-BZ140iA35#..RHD202303

main55590-BZ150iA35#..LHD202303

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ430-C0iA35#..RHD202303

BLACK,TRIM2#

main73970-BZ440-C0iA35#..LHD202303

BLACK,TRIM2#

8202

9004A11383

main9004A-11383

9004A11384

main9004A-11384

9004A11385

main9004A-11385

9004A16036

main9004A-16036

16 parts on this diagram · 10 diagrams in section
