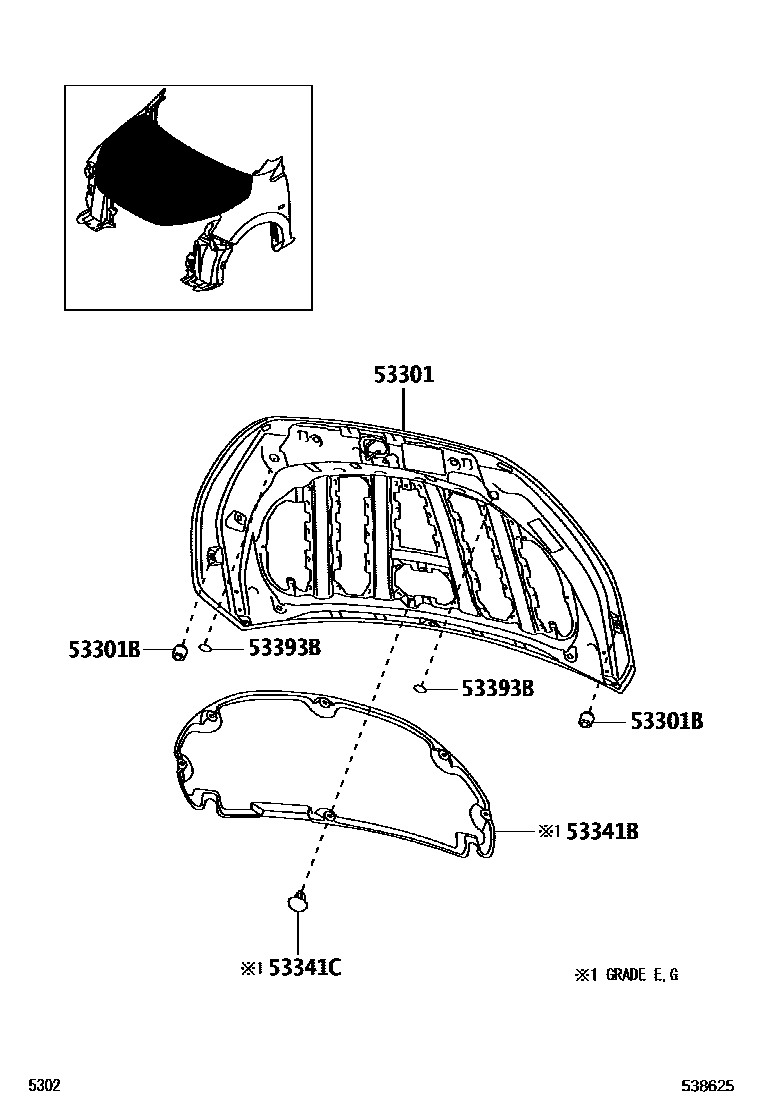

HOOD & FRONT FENDER

0001 1HOOD 0002 1FENDER LINER 0003 1FENDER

53301HOOD SUB-ASSY

main53301-BZ440iA35#202303

53301BCUSHION, HOOD BUMPER

main90541-09125×2iA35#202303

53341BINSULATOR, HOOD

main53341-BZ190iA35#..E,G202303

53341CCLIP(FOR HOOD INSULATOR)

main9004A-46258×6iA35#..E,G202303

53393BPROTECTOR, HOOD, FRONT

main53393-B1020×2iA35#202303-202311

main53393-BZ040×2iA35#202312

5 parts on this diagram · 3 diagrams in section
