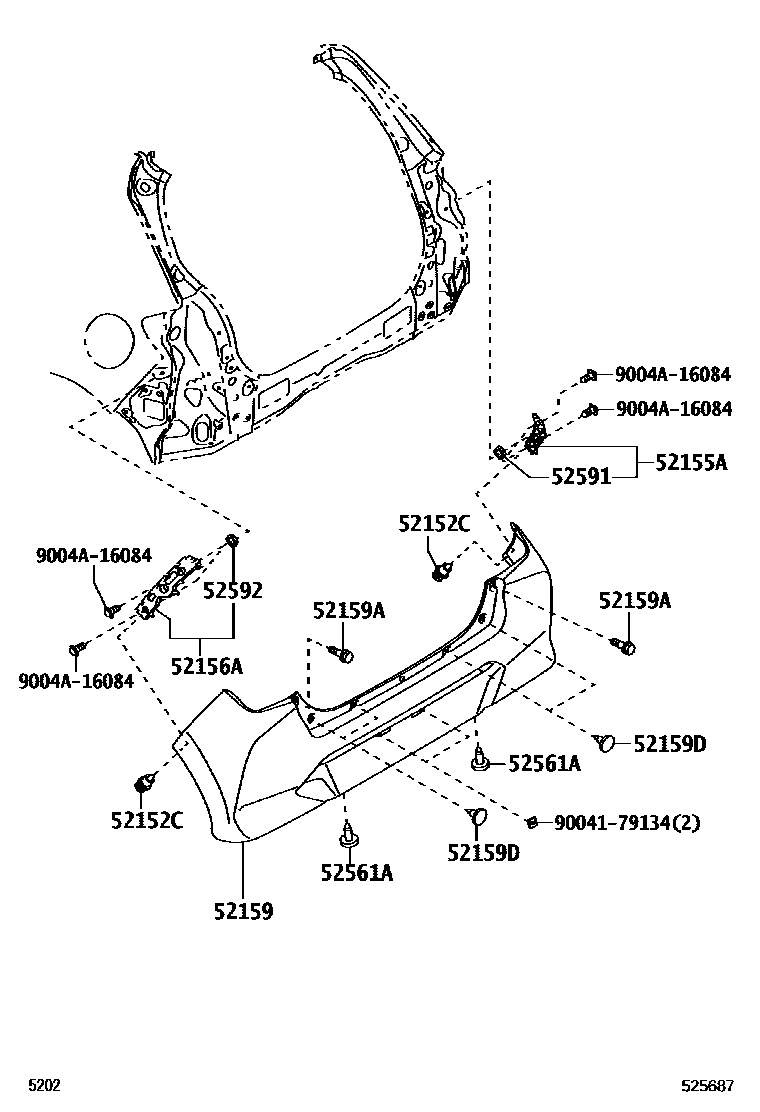

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52152CCLIP, REAR BUMPER SIDE

main9004A-46380iA35#202303

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ280iA35#202303

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ280iA35#202303

52159COVER, REAR BUMPER

main52159-BZP80iA35#..GEN202303

PAINT REQ.

main52159-BZQ00iA350..5F..PH;A351..(E,N)..IDN202303

PAINT REQ.

main52159-BZQ60iA350..CVT..E..GEN202306

PAINT REQ.,DESTINATION PACKAGE(ASIA)-CAMBODIA

main52159-BZQ60iA350..E..PH202306

PAINT REQ.

main52159-BZU20iA350..CVT..N..PH202306

PAINT REQ.

main52159-BZV30iA351..G202303

PAINT REQ.

52159ABOLT(FOR REAR BUMPER COVER)

main90041-05546iA35#..E,N¥110202303-202309

main9004A-10248iA35#202309

52159DCLIP, REAR BUMPER COVER

main90044-68381iA35#¥110202303

52561ACLIP(FOR REAR BUMPER RETAINER)

main9004A-46323iA35#¥170202303

52591SEAL, REAR BUMPER SIDE, RH

main15528-BZ030iA35#202303

52592SEAL, REAR BUMPER SIDE, LH

main15528-BZ030iA35#202303

9004179134

main90041-79134¥300

9004A16084

main9004A-16084

11 parts on this diagram · 3 diagrams in section
