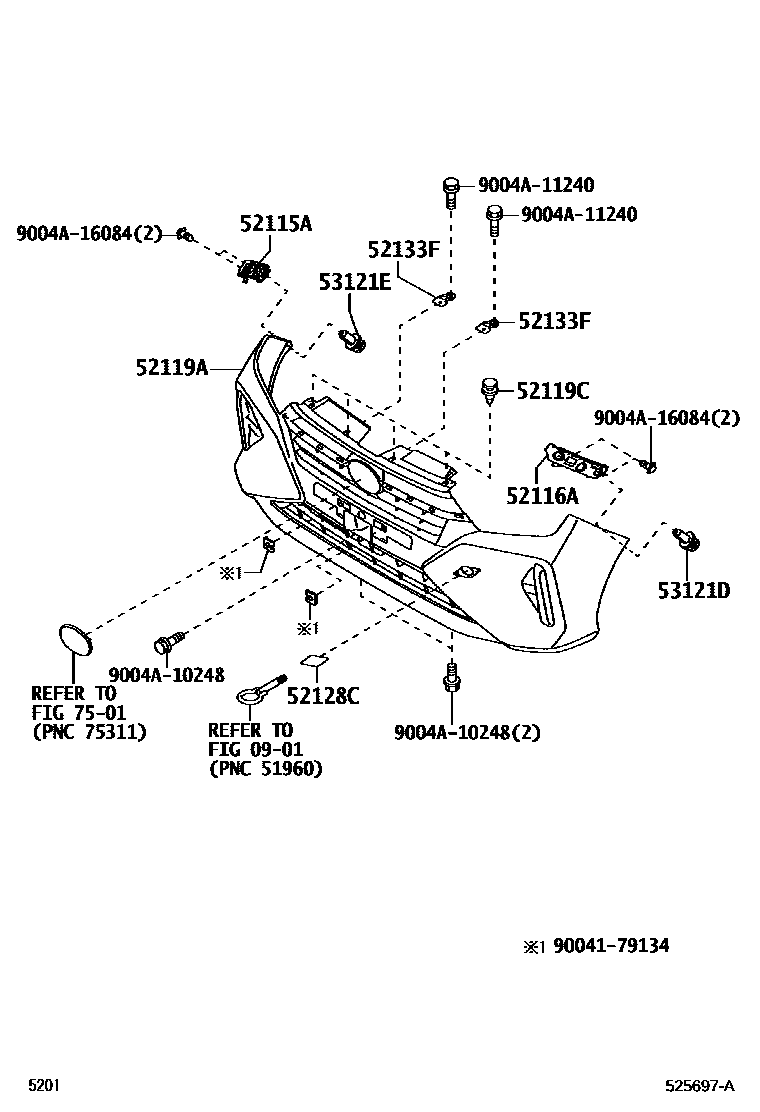

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

0901

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ320iA35#202303

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ320iA35#202303

52119ACOVER, FRONT BUMPER

main52119-BZT70iA351..G202303

PAINT REQ.

main52119-BZW00iA35#..E,N202303

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main9004A-46323iA35#202303

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-BZ620iA35#202303

NO PAINT REQ.

52133FBRACKET, FRONT BUMPER, RH

main52133-BZ160iA35#202303

53121DCLIP(FOR FRONT BUMPER), NO.2

main9004A-46380iA35#202303

53121ECLIP(FOR FRONT BUMPER), NO.1

main9004A-46380iA35#202303

7501

9004179134

main90041-79134

9004A10248

main9004A-10248

9004A11240

main9004A-11240

9004A16084

main9004A-16084

14 parts on this diagram · 3 diagrams in section
