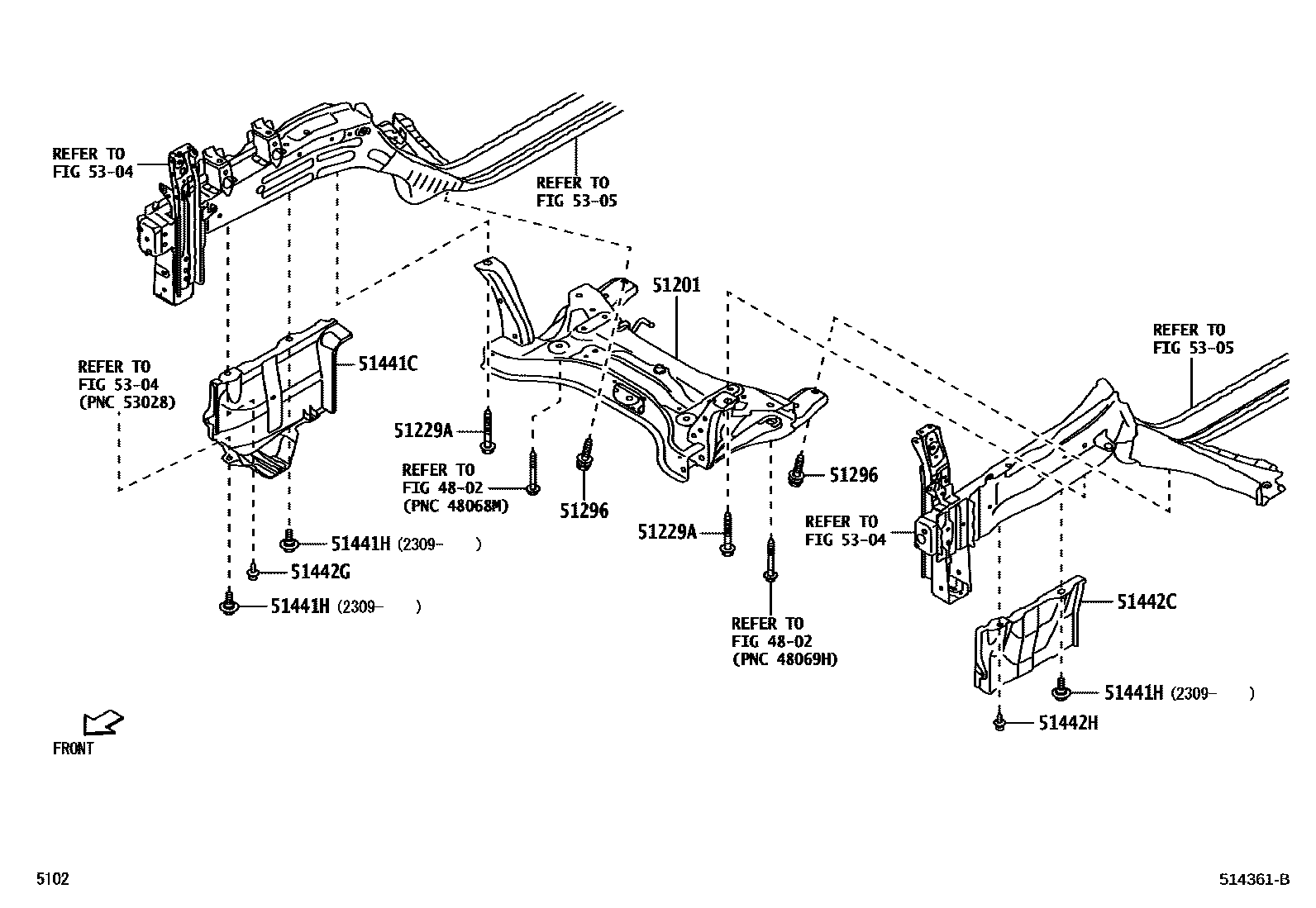

SUSPENSION CROSSMEMBER & UNDER COVER

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ180iA35#202303

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594×2iA35#202303

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025×2iA35#202303-202503

M10,L=31

51441CCOVER, ENGINE UNDER, RH

main51441-BZ300iA35#202303

51441HBOLT, W/WASHER(FOR ENGINE UNDER COVER)

main9004A-10248×3iA35#202309

51442CCOVER, ENGINE UNDER, LH

main51442-BZ070iA35#202303

51442GCLIP, ENGINE UNDER COVER, NO.1

main9004A-46323iA35#202303

RH

51442HCLIP, ENGINE UNDER COVER, NO.2

main9004A-46323iA35#202303

LH

5304

5305

11 parts on this diagram · 1 diagram in section
