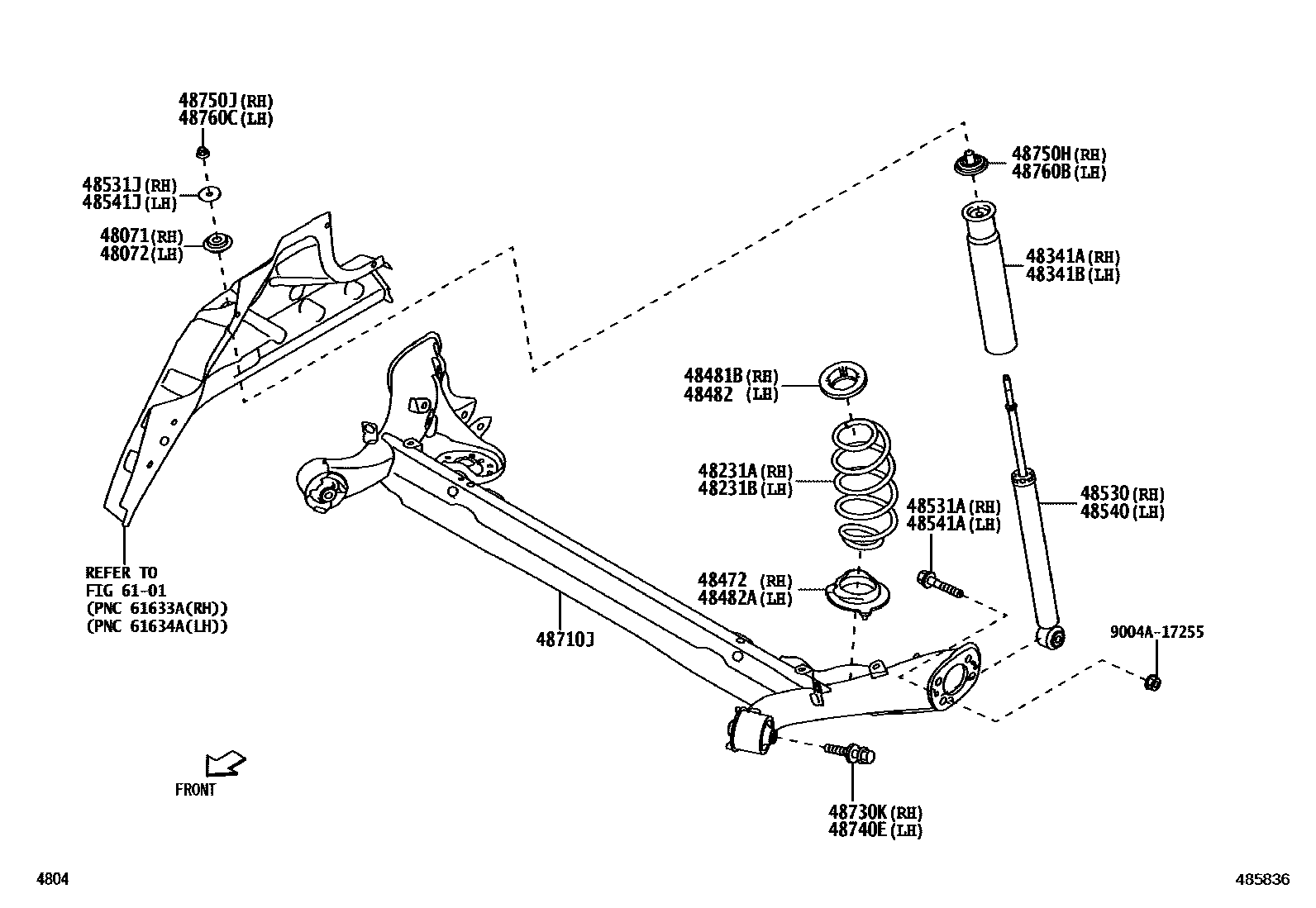

REAR SPRING & SHOCK ABSORBER
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48231ASPRING, COIL, REAR RH
DESTINATION PACKAGE(ASIA)-VIETNAM
DESTINATION PACKAGE(OTHER-COSTA RICA
48231BSPRING, COIL, REAR LH
DESTINATION PACKAGE(ASIA)-VIETNAM
DESTINATION PACKAGE(OTHER-COSTA RICA
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48472SEAT, REAR SPRING, LOWER
RH
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48482ASEAT, REAR SPRING, LOWER
LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-BZC00
MARK 48531-BZC20
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-BZC00
MARK 48531-BZC20
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
48710JARM ASSY, REAR SUSPENSION, NO.1
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
RH
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
6101
9004A17255
main9004A-17255
25 parts on this diagram · 1 diagram in section
