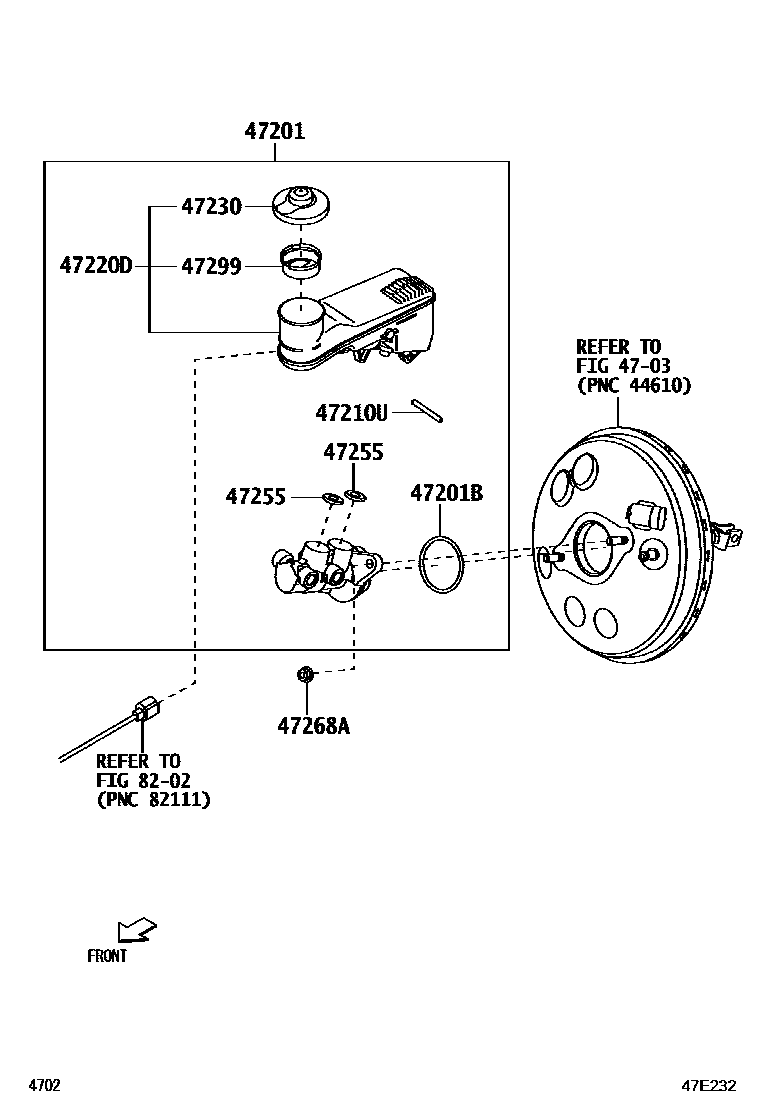

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZB20iA35#..RHD202303

main47201-BZB40iA35#..LHD202303

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main9004A-30046iA35#202303

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iA35#202303

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-BZ410iA35#..RHD202303

main47220-BZ430iA35#..LHD202303

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ130iA35#202303

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ110iA35#202303

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iA35#202303

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iA35#202303

8202

10 parts on this diagram · 1 diagram in section
