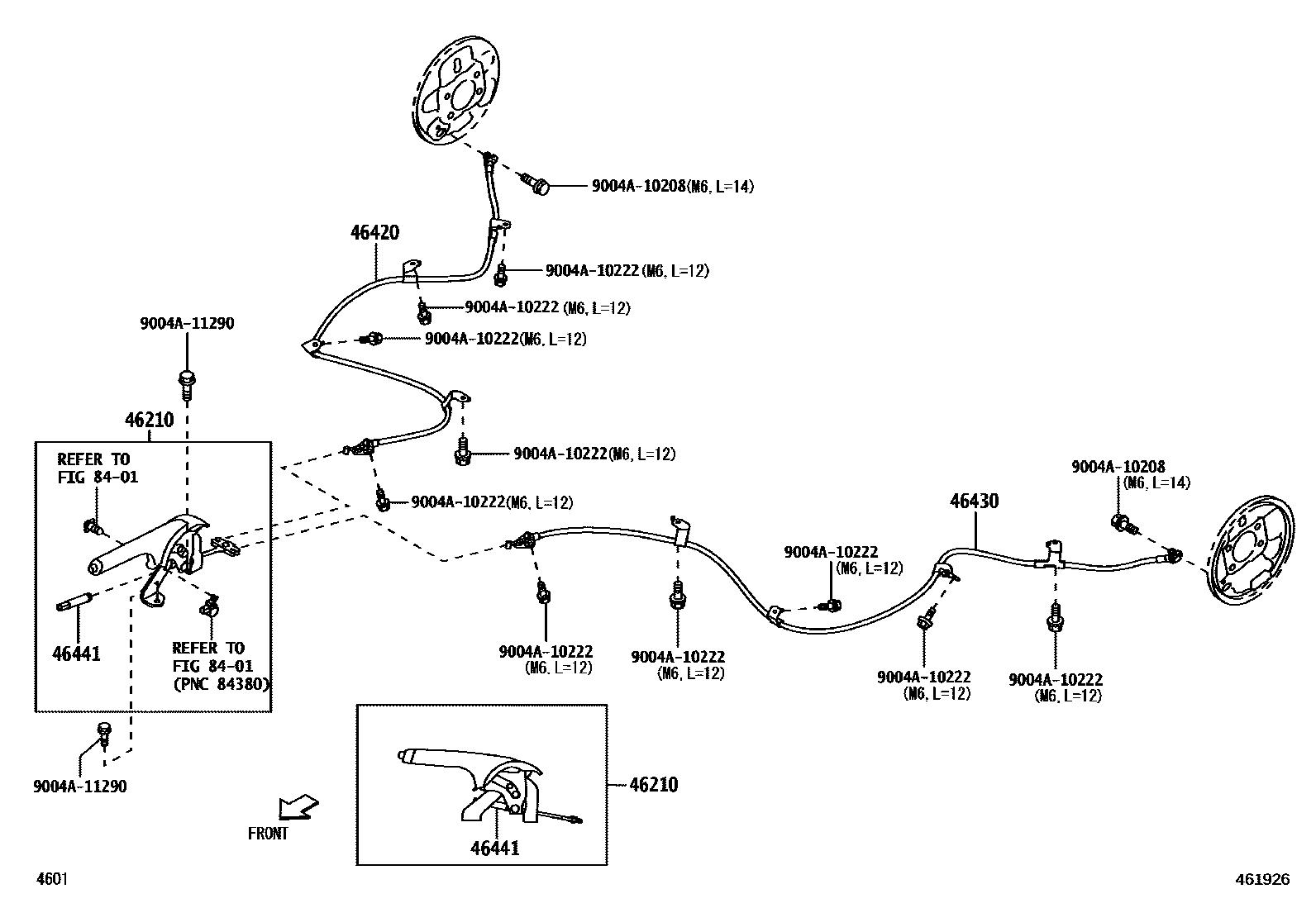

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-BZ330-C0iA351..IDN;A35#..LHD..N..GEN202303

BLACK,TRIM2#

main46210-BZ340-C0iA350..PH;A350..RHD;A35#..E..GEN202303

BLACK,TRIM2#

main46210-BZ340-C0iA350..PH;A350..RHD;A35#..E..GEN202303

DESTINATION PACKAGE(ASIA)-VIETNAM,BLACK,TRIM2#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ420iA35#202303

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ420iA35#202303

46441NUT, WIRE ADJUSTING, NO.1

main46441-BZ040iA35#202303

8401

9004A10208

main9004A-10208

9004A10222

main9004A-10222

9004A11290

main9004A-11290

8 parts on this diagram · 1 diagram in section
