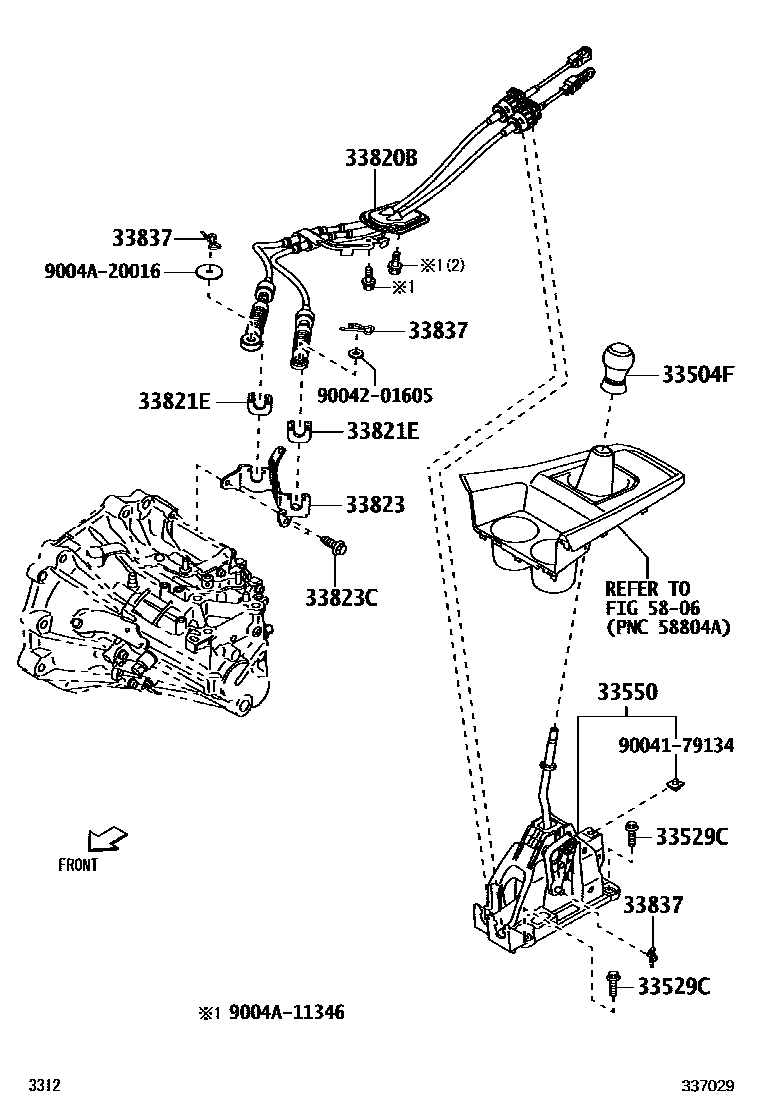

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ282-C1iA35#..CVT..(E,N)202303

BLACK,TRIM2#

main33504-BZ300-C1iA35#..5F..(E,N)202303

BLACK,TRIM2#

main33504-BZ530-C1iA351..5F..G202303

-,TRIM2#

main33504-BZ540-C1iA351..CVT..G202303

BLACK,TRIM2#

33529CBOLT, SHIFT LEVER

main9004A-11274×4iA35#202303

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ710-C0iA35#..CVT..(GEN,PH)202303

BLACK,TRIM2#

main33550-BZ720-C0iA351..CVT..IDN202303

BLACK,TRIM2#

main33550-BZ730iA35#..5F202303

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ490iA35#..CVT202303

main33820-BZ500iA35#..5F202303

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010iA35#..5F202303

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ090iA35#..5F202303

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90105-T0120×2iA35#202303

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iA35#..CVT202303

main90044-68076×3iA35#..5F202303

5806

9004179134

main90041-79134

9004201605

main90042-01605

9004A11346

main9004A-11346

9004A20016

main9004A-20016

13 parts on this diagram · 4 diagrams in section
