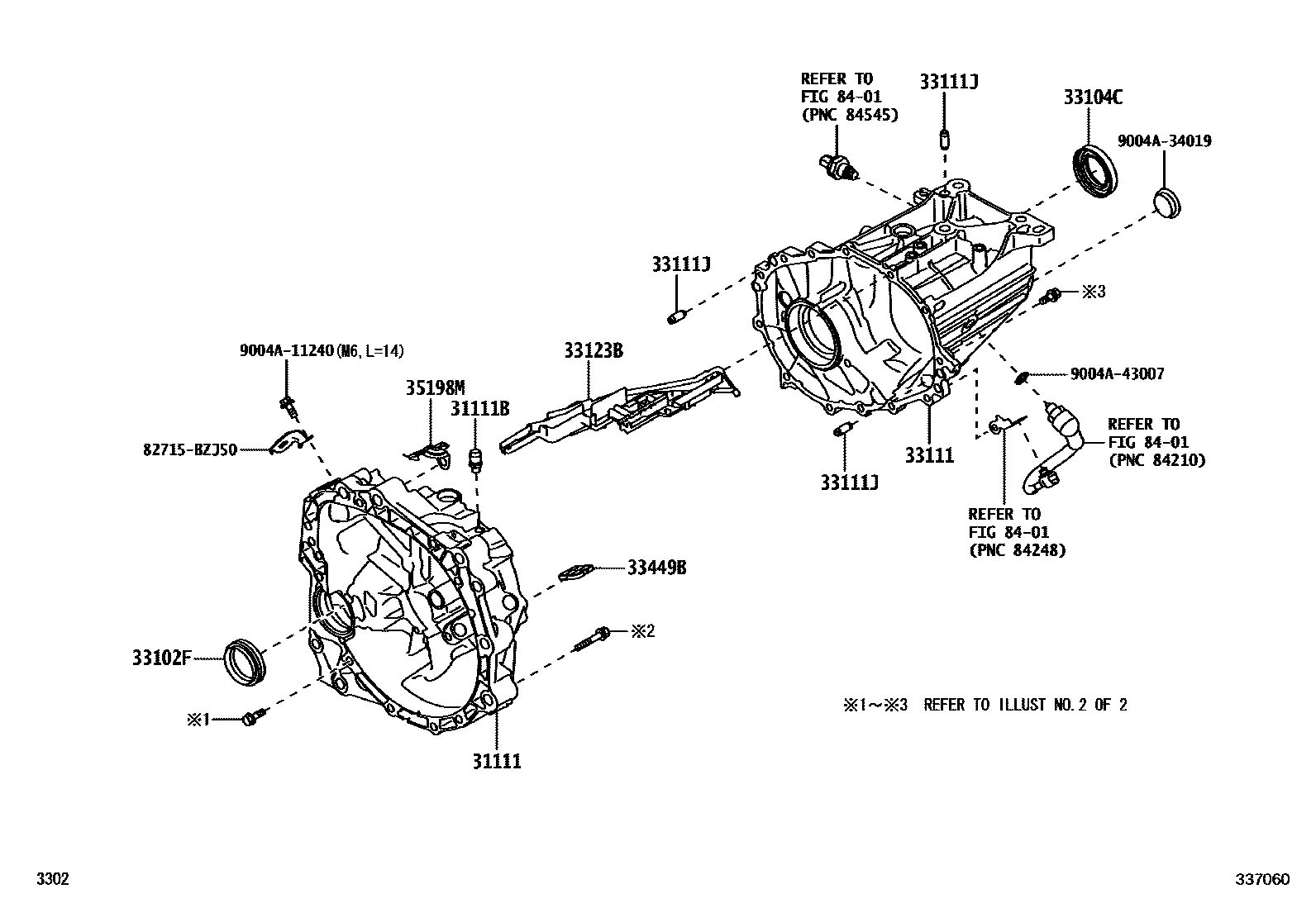

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31115-BZ080iA351..5F202303

main31115-BZ100iA350..5F202306

31111BPLUG(FOR CLUTCH HOUSING)

main9004A-93003iA35#..5F202303

sub90049-15026

33102FSEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE RH)

main9004A-31051iA35#..5F202303

33104CSEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE LH)

main9004A-31050iA35#..5F202303

33111CASE, MANUAL TRANSMISSION

main33111-BZ100iA35#..5F202303

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main9004A-25032iA35#..5F202303

L=25,OD=10

33123BRECEIVER, CASE COVER OIL, NO.1(MTM)

main33123-BZ030iA35#..5F202303

33449BMAGNET, TRANSMISSION

main33449-BZ070iA35#..5F202303

35198MBRACKET, WIRE HARNESS CLAMP

main82715-B2510iA35#..5F202303

8401

82715BZJ50BRACKET,WIRING HARNESS CLAMP

main82715-BZJ50

9004A11240

main9004A-11240

9004A34019

main9004A-34019

9004A43007

main9004A-43007

14 parts on this diagram · 3 diagrams in section
