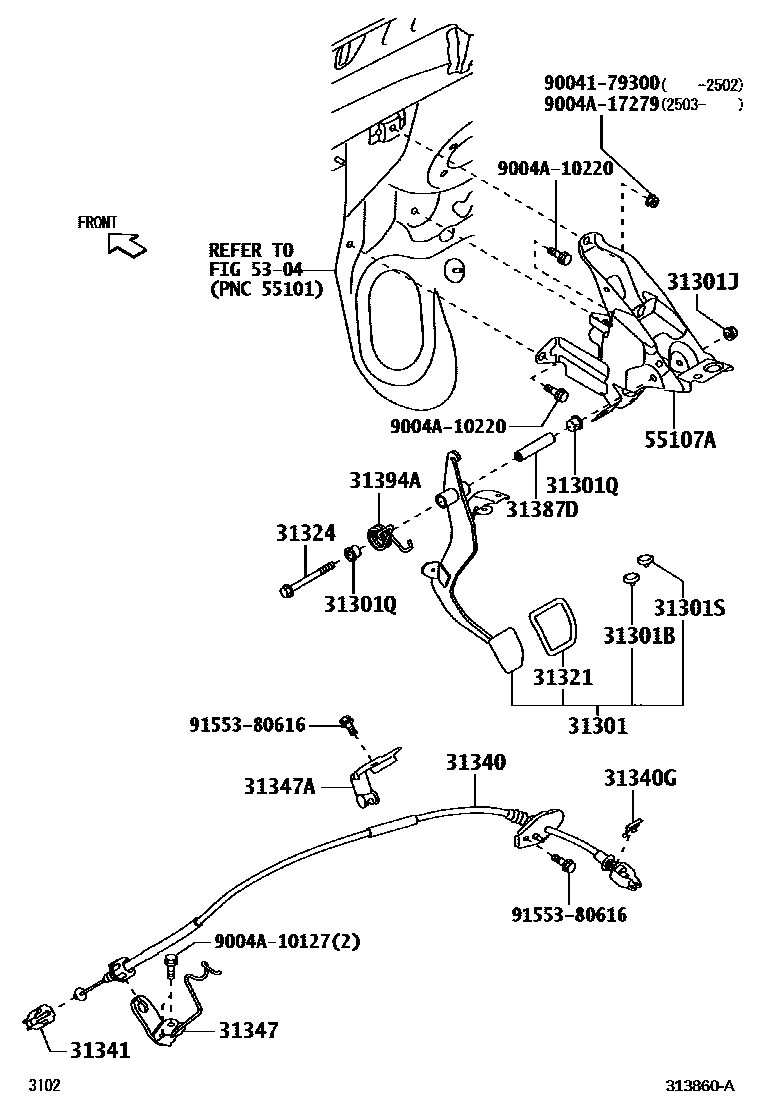

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1RHD 0002 1LHD

31301PEDAL SUB-ASSY, CLUTCH

main31310-BZ580iA35#..RHD..5F202303

main31310-BZ590iA35#..LHD..5F202303

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90045-40226iA35#..5F202303

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main9004A-17260iA35#..5F202303

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main9004A-38094×2iA35#..5F202303

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main9004A-54003iA35#..5F202303

31321PAD, CLUTCH PEDAL

main47121-BZ080iA35#..5F202303-202412

main47121-BZ081iA35#..5F202501

31324SHAFT, CLUTCH PEDAL

main9004A-10281iA35#..5F202303

31340CABLE ASSY, CLUTCH RELEASE

main31340-BZ330iA35#..RHD..5F202303

main31340-BZ340iA35#..LHD..5F202303

31340GCLIP(FOR CLUTCH RELEASE CABLE)

main90044-68143iA35#..5F202303

31341BRACKET, CLUTCH CABLE

main31341-BZ130iA35#..5F202303

31347CLAMP, CLUTCH CABLE

main31347-BZ270iA35#..5F202303

31347ACLAMP, CLUTCH CABLE, NO.1

main31347-BZ280iA35#..RHD..5F202303

main31347-BZ290iA35#..LHD..5F202303

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

main9004A-56112iA35#..5F202303

31394ASPRING, PEDAL W/HOOK

main31394-BZ170iA35#..5F202303

5304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-BZ560iA35#..RHD..5F202303

main55107-BZ570iA35#..LHD..5F202303

9004179300

main90041-79300

9004A10127

main9004A-10127

9004A10220

main9004A-10220

9004A17279

main9004A-17279

9155380616

main91553-80616

21 parts on this diagram · 2 diagrams in section
