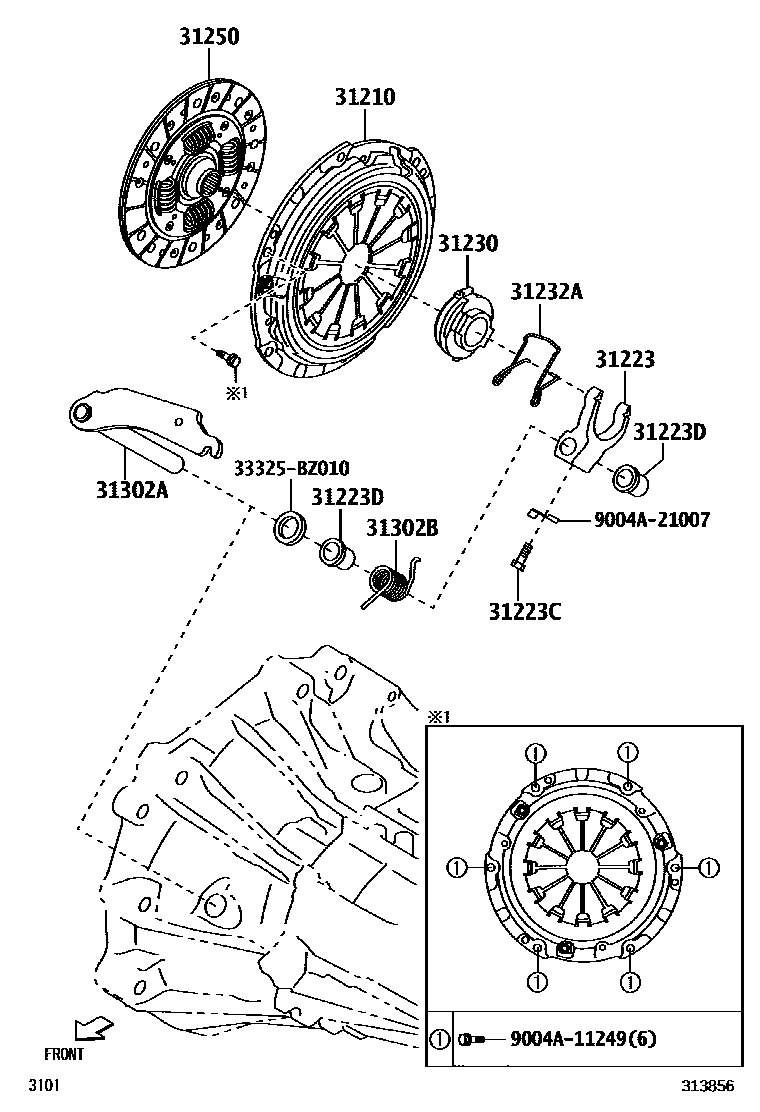

CLUTCH & RELEASE FORK

31210COVER ASSY, CLUTCH

main31210-BZ260iA351..5F202303

main31210-BZ310iA350..5F202306

31223YOKE, CLUTCH RELEASE LEVER

main31223-BZ041iA35#..5F202303

31223CBOLT, HEXAGON(FOR CLUTCH RELEASE LEVER YOKE)

main9004A-10280iA35#..5F202303

31223DBUSH(FOR CLUTCH RELEASE LEVER YOKE)

main9004A-38087×2iA35#..5F202303

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ070iA35#..5F202303

31232ACLIP, RELEASE BEARING HUB

main31232-BZ050iA35#..5F202303

31250DISC ASSY, CLUTCH

main31250-BZ310iA351..5F202303

main31250-BZ360iA350..5F202306

31302ALEVER SUB-ASSY, CLUTCH RELEASE FORK

main31302-BZ060iA35#..5F202303

31302BSPRING, TORSION(FOR CLUTCH RELEASE FORK LEVER)

main9004A-50149iA35#..5F202303

33325BZ010DFFLECTOR, DUST (FOR MTM OUTPUT SHAFT COMPANION FLANGE)

main33325-BZ010

9004A11249

main9004A-11249

9004A21007

main9004A-21007

12 parts on this diagram · 1 diagram in section
