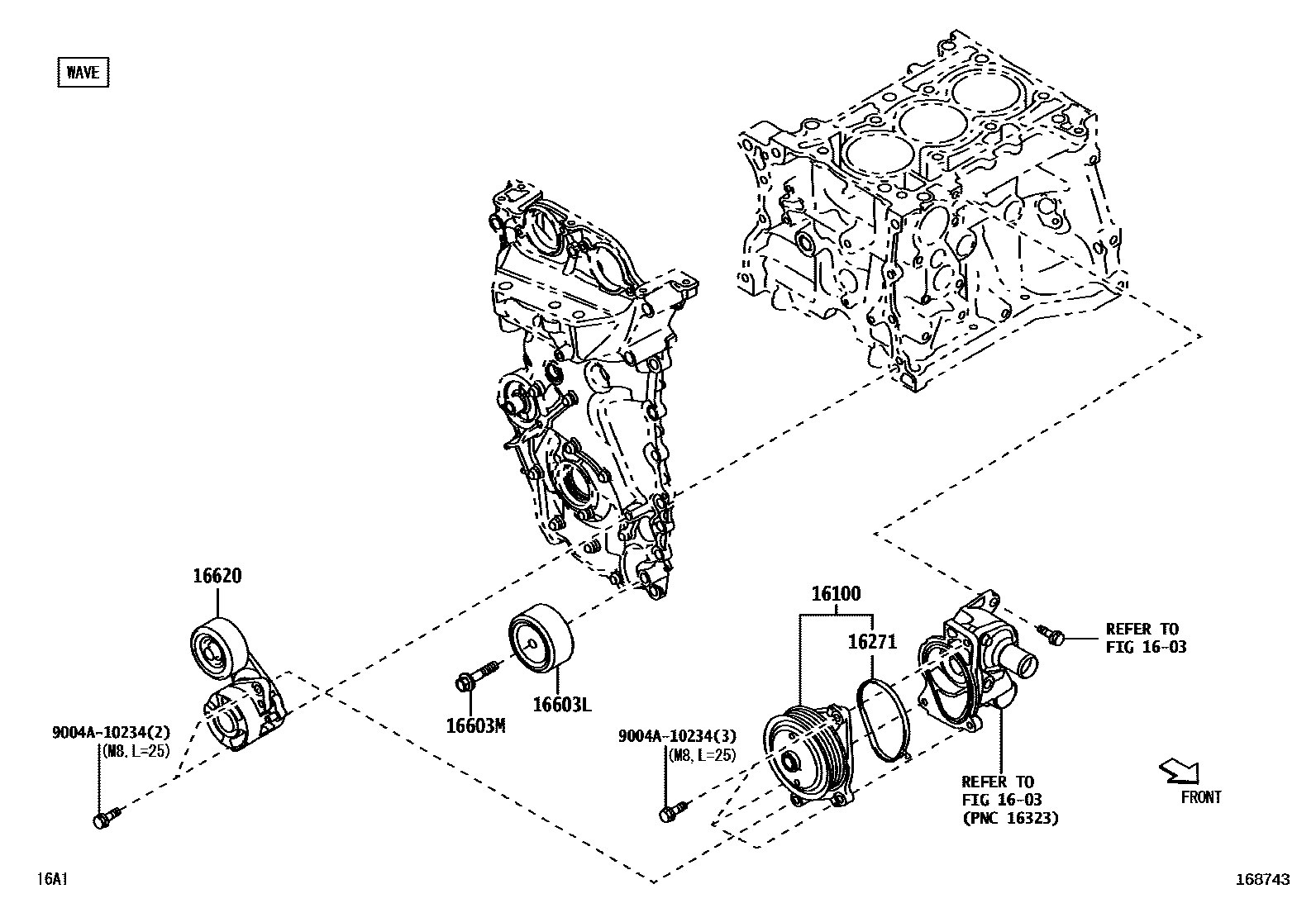

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-B9027i1KRVE..A350202306

main16100-B9710iWAVE..A351202303

16271GASKET, WATER PUMP

main16271-BZ050i1KRVE..A350202306

main16271-BZ080iWAVE..A351202303

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-B1011iWAVE..A351202303

16603MBOLT(FOR IDLER PULLEY)

main91672-81050iWAVE..A351202303

M10,L=50

16620TENSIONER ASSY, V-RIBBED BELT

main16620-BZ050iWAVE..A351202303

9004A10234

main9004A-10234

7 parts on this diagram · 2 diagrams in section
