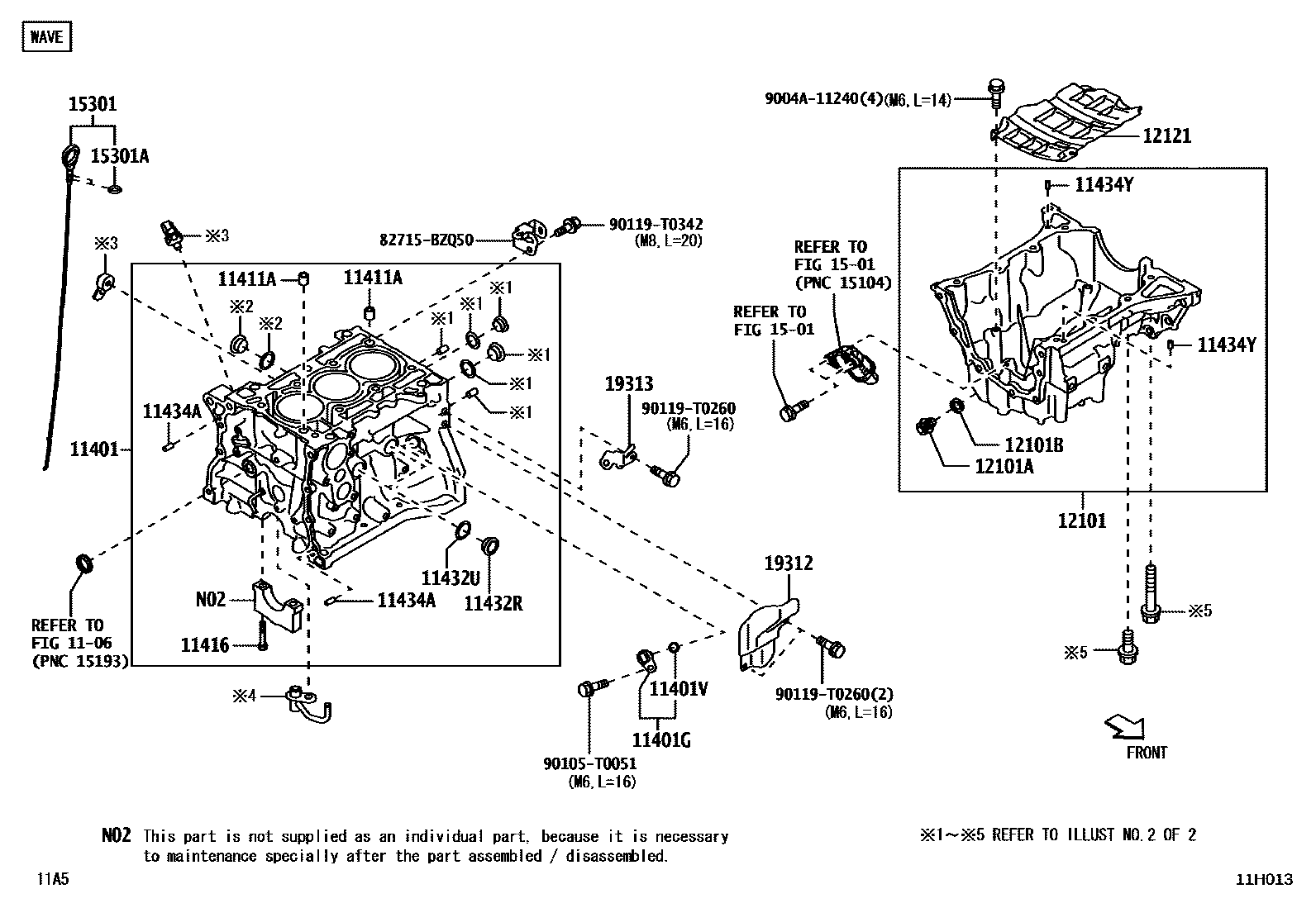

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-B9710iWAVE..A351202303

main11401-BZ101i1KRVE..A350202306

11401GSENSOR, CRANK POSITION

main19311-BZ060iWAVE..A351202303

11401VO-RING, CRANK POSITION SENSOR

main9004A-30063iWAVE..A351202303

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main9004A-25038i1KRVE..A350202306

main90253-13017iWAVE..A351202303

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main9004A-10278iWAVE..A351202303

main90105-10531i1KRVE..A350202306

M10,L=68

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-22008i1KRVE..A350202306

main90341-24006iWAVE..A351202303

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-24013iWAVE..A351202303

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003iWAVE..A351202303

L=14,OD=6

11434YPIN, STRAIGHT(FOR OIL PAN)

main9004A-25045iWAVE,1KRVE..A35#202303

12101PAN SUB-ASSY, OIL

main12101-BZ100i1KRVE..A350202306

main12101-BZ190iWAVE..A351202303

12101APLUG(FOR OIL PAN DRAIN)

main9004A-34015iWAVE,1KRVE..A35#202303

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main9004A-43022iWAVE,1KRVE..A35#202303

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-BZ080i1KRVE..A350202306

main12121-BZ120iWAVE..A351202303

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-BZ090i1KRVE..A350202306

main15301-BZ170iWAVE..A351202303

15301ARING, O(FOR OIL LEVEL GAGE)

main9004A-30048i1KRVE..A350202303

19312PROTECTOR, CRANK POSITION SENSOR

main19312-BZ030iWAVE..A351202303

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-BZ020iWAVE..A351202303

82715BZQ50BRACKET,WIRING HARNESS CLAMP

main82715-BZQ50

9004A11240

main9004A-11240

90105T0051

main90105-T0051

90119T0260

main90119-T0260

90119T0342

main90119-T0342

24 parts on this diagram · 4 diagrams in section
