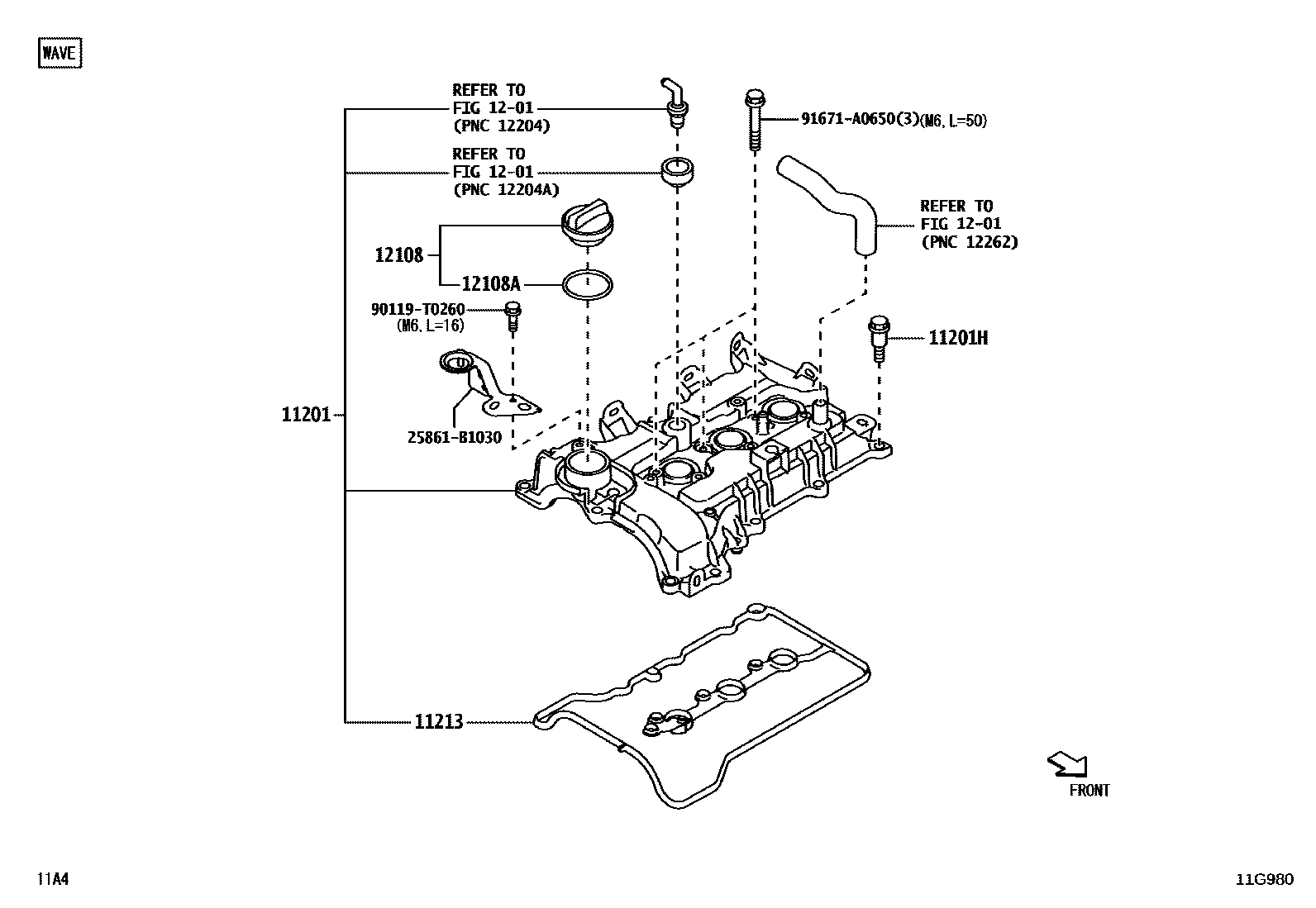

CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD COVER 0003 1CYLINDER HEAD 0004 1CYLINDER HEAD

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ091i1KRVE..A350202306

main11210-BZ090iWAVE..A351202303

11201HBOLT(FOR CYLINDER HEAD COVER)

main90041-09249i1KRVE..A350202306

M6,L=24

main90041-09275iWAVE..A351202303

M6,L=23.5

11213GASKET, CYLINDER HEAD COVER

main11213-BZ080i1KRVE..A350202306

main11213-BZ150iWAVE..A351202303

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-BZ060iWAVE,1KRVE..A35#202303

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140iWAVE,1KRVE..A35#202303

25861B1030BRACKET, VACUUM SWITCHING VALVE

main25861-B1030

90119T0260

main90119-T0260

91671A0650

main91671-A0650

9 parts on this diagram · 4 diagrams in section
