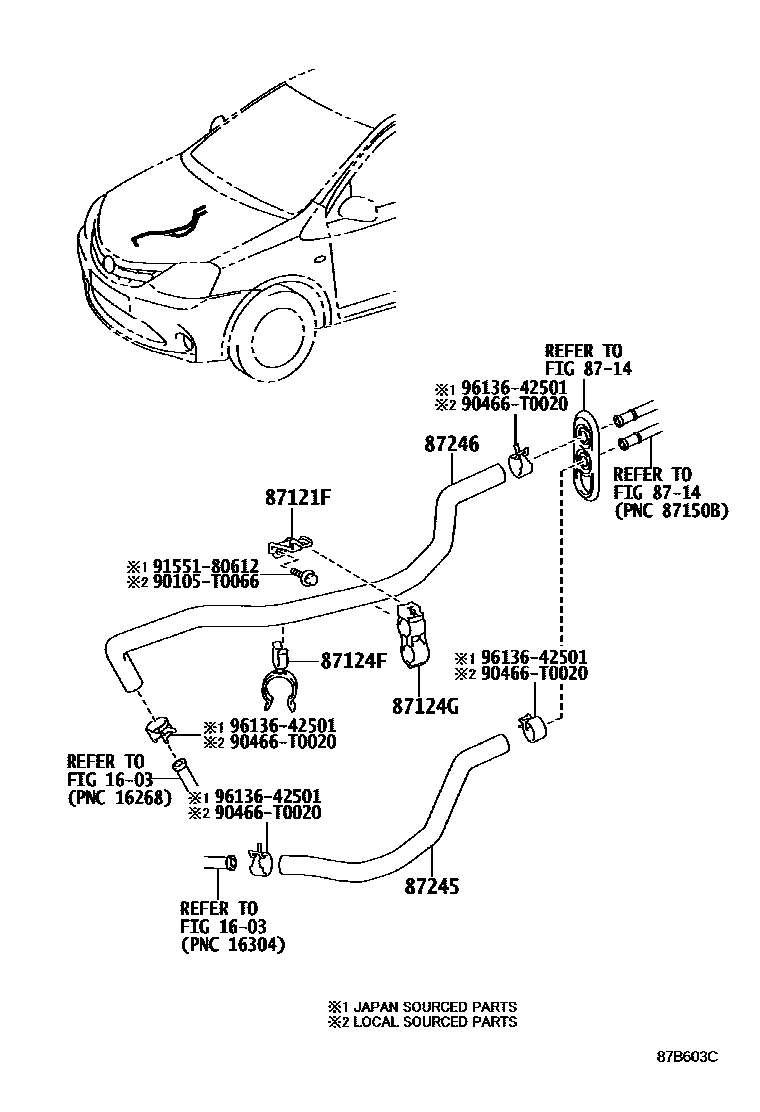

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

87121FBRACKET, HEATER

main87121-0D030iNGK1#201012-201303

main87121-0D080iNGK12,15..SA201303

87124FCLAMP, HEATER HOSE, NO.1

main87124-0D030iNGK1#201012-201303

87124GCLAMP, HEATER HOSE, NO.2

main87124-0D040iNGK1#201012-201303

main87124-0D320iNGK12,15..SA201303-201810

sub87124-0D560

main87124-0D560iNGK12,15..SA201811

8714

87245HOSE, HEATER WATER, INLET

main87245-0D390iNGK1#201012-201303

main87245-0D410iNUK1#201108-201303

main87245-0D580iNGK12,15..SA201303

87246HOSE, HEATER WATER, OUTLET

main87245-0D380iNGK1#..IND201012-201303

main87245-0D400iNUK1#201108-201303

90105T0066

main90105-T0066

90466T0020

main90466-T0020

9155180612

main91551-80612

9613642501

main96136-42501

11 parts on this diagram · 4 diagrams in section
