E
EPC Data

MIRROR

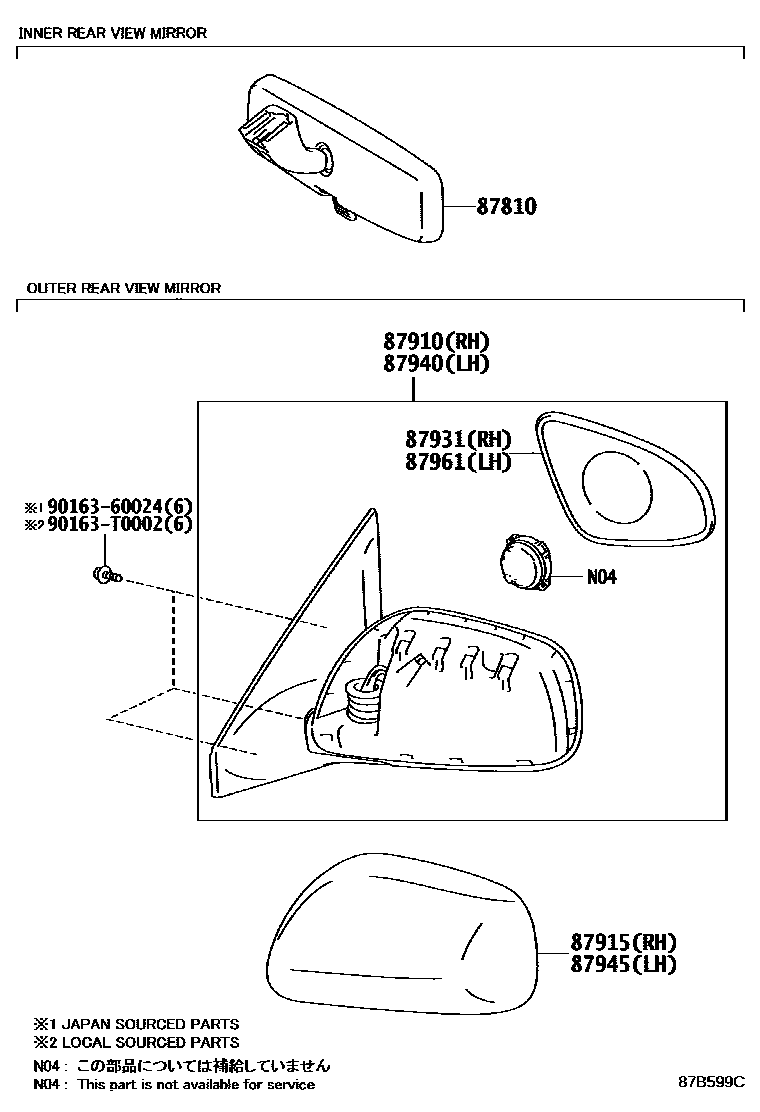

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041i201303-201712
main87810-06041i201411
MURAKAMI
main87810-0D060i201012-201303
main87810-0D060i201303-201411
SMR
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0D500i201012-201303
NO PAINT REQ.
sub87910-0D511
main87910-0D510i201203-201901
NO PAINT REQ.
sub87910-0D511
main87910-0D511i201901
NO PAINT REQ.
main87910-0D660i201303-201501
NO PAINT REQ.
main87910-0D870i201303-201712
NO PAINT REQ.
main87910-0D880i201504-201609
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
sub87910-0D881
main87910-0D880i201303-201901
NO PAINT REQ.
sub87910-0D881
main87910-0D880i201504-201609
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
sub87910-0D881
main87910-0D881i201901-201905
sub87910-0D882
main87910-0D882i201906
main87910-0D890i201303-201901
NO PAINT REQ.
sub87910-0D891
main87910-0D891i201901
NO PAINT REQ.
main87910-0DC30i201802-201901
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
sub87910-0DC31
main87910-0DC30i201609-201901
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
sub87910-0DC31
main87910-0DC30i201409-201802
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
sub87910-0DC31
main87910-0DC30i201409-201901
NO PAINT REQ.
sub87910-0DC31
main87910-0DC31i201901-201905
LUXURY PACKAGE(W(ABS & *ERCDM))
sub87910-0DC32
main87910-0DC31i201901-201906
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
sub87910-0DC32
main87910-0DC31i201905-201906
TWO TONE EXTERIOR COLOR
sub87910-0DC32
main87910-0DC32i201906
LUXURY PACKAGE(W(ABS & *ERCDM))
main87910-0DC32i201906
LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
87915COVER, OUTER MIRROR, RH
main87915-0D090i201802
NO PAINT REQ.,TWO TONE EXTERIOR COLOR
main87915-0D150i201012-201609
NO PAINT REQ.
main87915-0D180i201802
NO PAINT REQ.,TWO TONE EXTERIOR COLOR
main87915-0D180i201802
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
main87915-0D908i201012-201303
PAINT REQ.
main87915-0D910i201303
PAINT REQ.
main87915-0D912i201303-201504
PAINT REQ.
main87915-0D912i201504-201802
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
main87915-0D912i201504-201609
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
main87915-0D912i201504
PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
main87915-0D913i201303-201409
PAINT REQ.
87931OUTER MIRROR, RH
main87931-0D500i201012-201303
sub87931-0D511
main87931-0D510i201203-201901
sub87931-0D511
main87931-0D511i201901
main87931-0D660i201303
main87931-0D880i201504-201609
OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
sub87931-0D881
main87931-0D880i201504-201609
LUXURY PACKAGE(W(ABS & *ERCDM))
sub87931-0D881
main87931-0D880i201303-201901
sub87931-0D881
main87931-0D881i201901
main87931-0D890i201409-201504
OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
sub87931-0D881
main87931-0D890i201303-201901
sub87931-0D881
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0D500i201012-201303
NO PAINT REQ.
sub87940-0D511
main87940-0D510i201203-201901
NO PAINT REQ.
sub87940-0D511
main87940-0D511i201901
NO PAINT REQ.
main87940-0D650i201303-201501
NO PAINT REQ.
main87940-0D870i201303-201712
NO PAINT REQ.
main87940-0D880i201303-201901
NO PAINT REQ.
sub87940-0D881
main87940-0D880i201504-201609
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
sub87940-0D881
main87940-0D880i201504-201609
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
sub87940-0D881
main87940-0D881i201901-201905
sub87940-0D882
main87940-0D882i201906
main87940-0D890i201303-201901
NO PAINT REQ.
sub87940-0D891
main87940-0D891i201901
NO PAINT REQ.
main87940-0DC40i201802-201901
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
sub87940-0DC41
main87940-0DC40i201609-201901
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
sub87940-0DC41
main87940-0DC40i201409-201802
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
sub87940-0DC41
main87940-0DC40i201409-201901
NO PAINT REQ.
sub87940-0DC41
main87940-0DC41i201901-201905
LUXURY PACKAGE(W(ABS & *ERCDM))
sub87940-0DC42
main87940-0DC41i201901-201906
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
sub87940-0DC42
main87940-0DC41i201905-201906
TWO TONE EXTERIOR COLOR
sub87940-0DC42
main87940-0DC42i201906
LUXURY PACKAGE(W(ABS & *ERCDM))
main87940-0DC42i201906
LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
87945COVER, OUTER MIRROR, LH
main87945-0D130i201012-201609
NO PAINT REQ.
main87945-0D160i201802
NO PAINT REQ.,TWO TONE EXTERIOR COLOR
main87945-0D430i201802
NO PAINT REQ.,TWO TONE EXTERIOR COLOR
main87945-0D430i201802
NO PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))&TWO TONE EXTERIOR COLOR
main87945-0D908i201012-201303
PAINT REQ.
main87945-0D910i201303
PAINT REQ.
main87945-0D912i201504-201609
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
main87945-0D912i201303-201504
PAINT REQ.
main87945-0D912i201504
PAINT REQ.,LUXURY PACKAGE(W(ABS & *ERCDM))
main87945-0D912i201504-201802
PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
main87945-0D913i201303-201409
PAINT REQ.
87961MIRROR OUTER, LH
main87961-0D500i201012-201303
sub87961-0D511
main87961-0D510i201203-201901
sub87961-0D511
main87961-0D511i201901
main87961-0D650i201303
main87961-0D880i201504-201609
LUXURY PACKAGE(W(ABS & *ERCDM))
sub87961-0D881
main87961-0D880i201504-201609
OUTSIDE REAR VIEW MIRROR-MANUAL & WITH(SIDE TURN LAMP) & COLORED
sub87961-0D881
main87961-0D880i201303-201901
sub87961-0D881
main87961-0D881i201901
main87961-0D890i201303-201901
sub87961-0D881
main87961-0D890i201409-201504
OUTSIDE REAR VIEW MIRROR-*273 & WITH(SIDE TURN LAMP) & COLORED
sub87961-0D881
9016360024
main90163-60024
90163T0002
main90163-T0002

9 parts on this diagram · 2 diagrams in section
