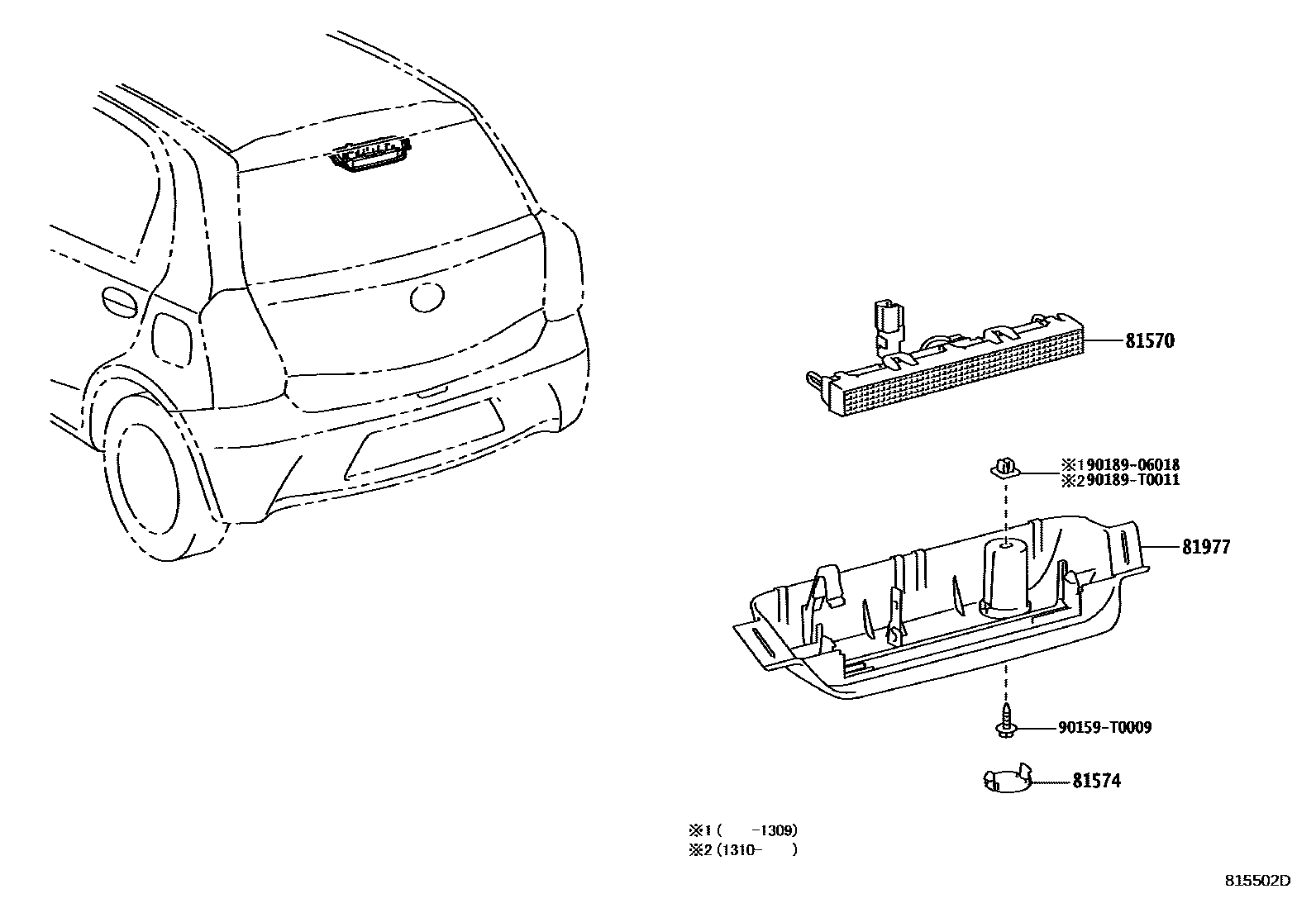

CENTER STOP LAMP

0001 1 0002 1 0003 1

81570LAMP ASSY, CENTER STOP

main81570-0D130-C0iNGK10,NUK10..G..IND201303-201509

BLACK,TRIM1#,4#

main81570-0D130-E0iNGK15,NUK15..(G,V)..IND201303-201509

GREGE,TRIM4#

main81570-0D131-A1iNGK15,NUK15..V201609

IVORY,TRIM0#

main81570-0D131-C0iNGK10,NUK10..G..IND201510

BLACK,TRIM2#

main81570-0D131-E0iNGK15,NUK15..(G,V)..IND201510

GREGE,TRIM4#

main81570-12430iNGK10..IDN201303

81574COVER, CENTER STOP LAMP

main81952-0D010-C0iNGK15..5D;NGK10..STD201012-201303

BLACK,TRIM1#,4#

main81952-0D060-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

81977COVER, CENTER STOP LAMP

main81977-0D060-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main81977-0D060-C0iNGK15,NUK15..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

main81977-0D060-E0iNGK15,NUK15..(G,V)..IND201303

GREGE,TRIM4#

main81977-0D070-C0iNGK10,NUK10..G..IND201510

BLACK,TRIM2#

main81977-0D130-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

90159T0009

main90159-T0009

9018906018

main90189-06018

90189T0011

main90189-T0011

6 parts on this diagram · 3 diagrams in section
