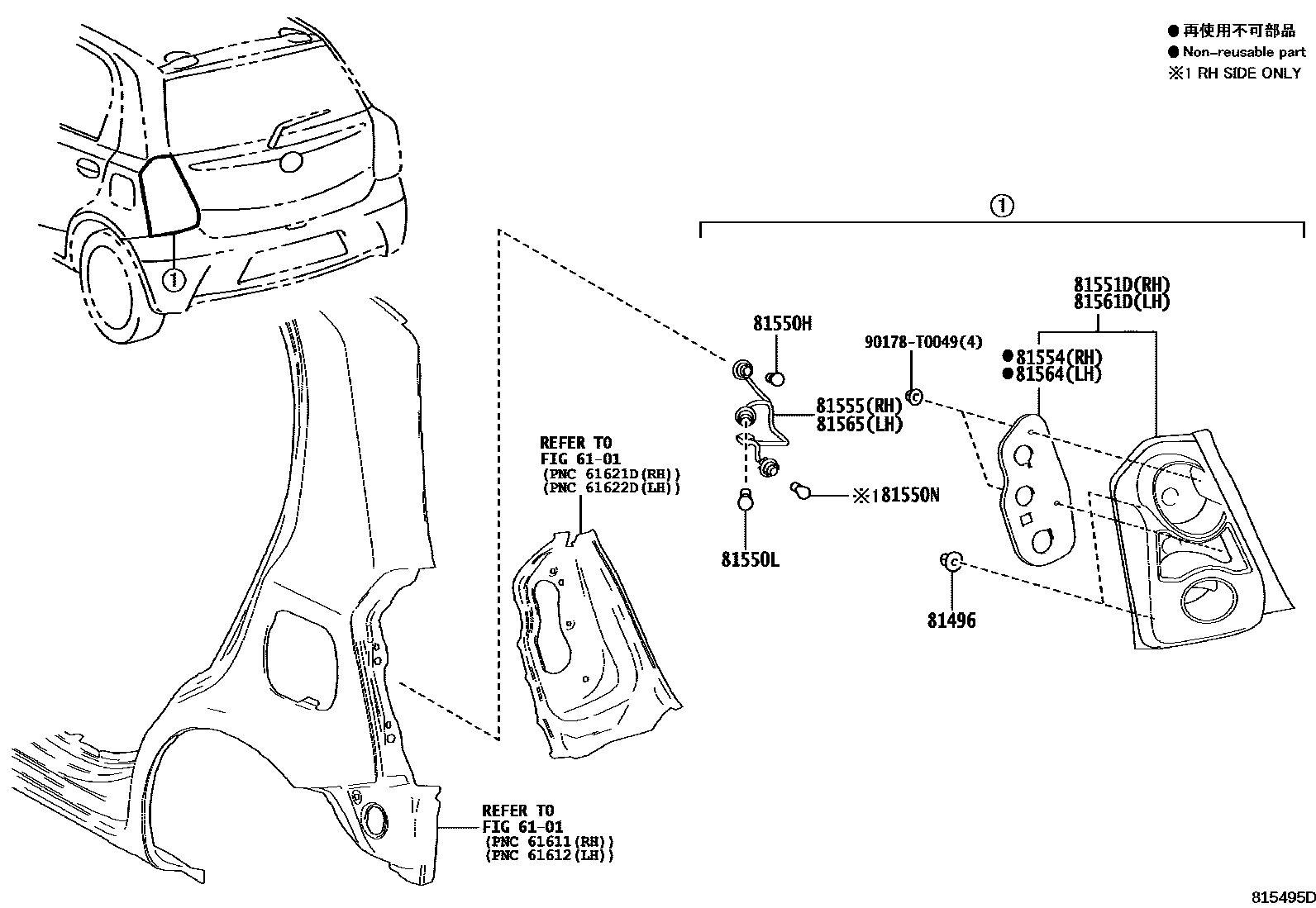

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iNGK10,12,NUK10..IND,SA201303

(L)

main81496-0D060iNGK10..IDN201603

main81496-52020iNGK10,12,NUK10..IND,SA201303

(J)

main81496-52020iNUK10..G;NGK10,15..5D..(G,STD,V)201012-201602

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D400iNGK10..IDN201303

81550HBULB, TAIL & STOP LAMP

main99132-21210iNGK1#,NUK1#201012-201303

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15009iNGK15,NUK15..4D201012-201303

12V 21W,AMBER

main90981-15020iNGK10..IDN201303

12V 21W,AMBER

main99132-11210iNGK1#,NUK10..5D201012-201303

12V 21W

81550NBULB, BACK UP LAMP

main90981-11059iNGK10,12,NUK10..IND,SA201303

12V 16W

main99132-11210iNGK1#,NUK1#201012-201303

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D300iNGK15,NUK15201303

main81551-0D310iNGK15,NUK15..4D201012-201303

main81551-0D320iNGK1#,NUK10..5D201012-201303

main81551-0D400iNGK10..IDN201303

main81551-0D490iNGK10,NUK10..IND;NGK12..G,STD,SUVV201303

main81551-0D580iNGK12..SUVG201404

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-0D300iNGK15,NUK15201303

main81552-0D310iNGK15,NUK15..4D201012-201303

main81552-0D320iNGK1#,NUK10..5D201012-201303

main81552-0D400iNGK10..IDN201303

main81552-0D490iNGK10,NUK10..IND;NGK12..G,STD,SUVV201303

main81552-0D580iNGK12..SUVG201404

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D310iNGK15,NUK15..4D201012-201303

main81555-0D320iNGK1#,NUK10..5D201012-201303

main81555-0D400iNGK10..IDN201303

main81555-0D490iNGK10,12,NUK10..IND,SA201303

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D310iNGK15,NUK15..4D201012-201303

main81561-0D320iNGK1#,NUK10..5D201012-201303

main81561-0D400iNGK10..IDN201303

main81561-0D490iNGK15,NUK15201303

main81561-0D500iNGK10,NUK10..IND;NGK12..G,STD,SUVV201303

main81561-0D590iNGK12..SUVG201404

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-0D300iNGK15,NUK15201303

main81552-0D310iNGK15,NUK15..4D201012-201303

main81562-0D320iNGK1#,NUK10..5D201012-201303

main81562-0D400iNGK10..IDN201303

main81562-0D500iNGK10,NUK10..IND;NGK12..G,STD,SUVV201303

main81562-0D590iNGK12..SUVG201404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D310iNGK15,NUK15201303

main81555-0D400iNGK10..IDN201303

main81565-0D310iNGK15,NUK15..4D201012-201303

main81565-0D320iNGK1#,NUK10..5D201012-201303

main81565-0D500iNGK10,12,NUK10..IND,SA201303

90178T0049

main90178-T0049

13 parts on this diagram · 5 diagrams in section
