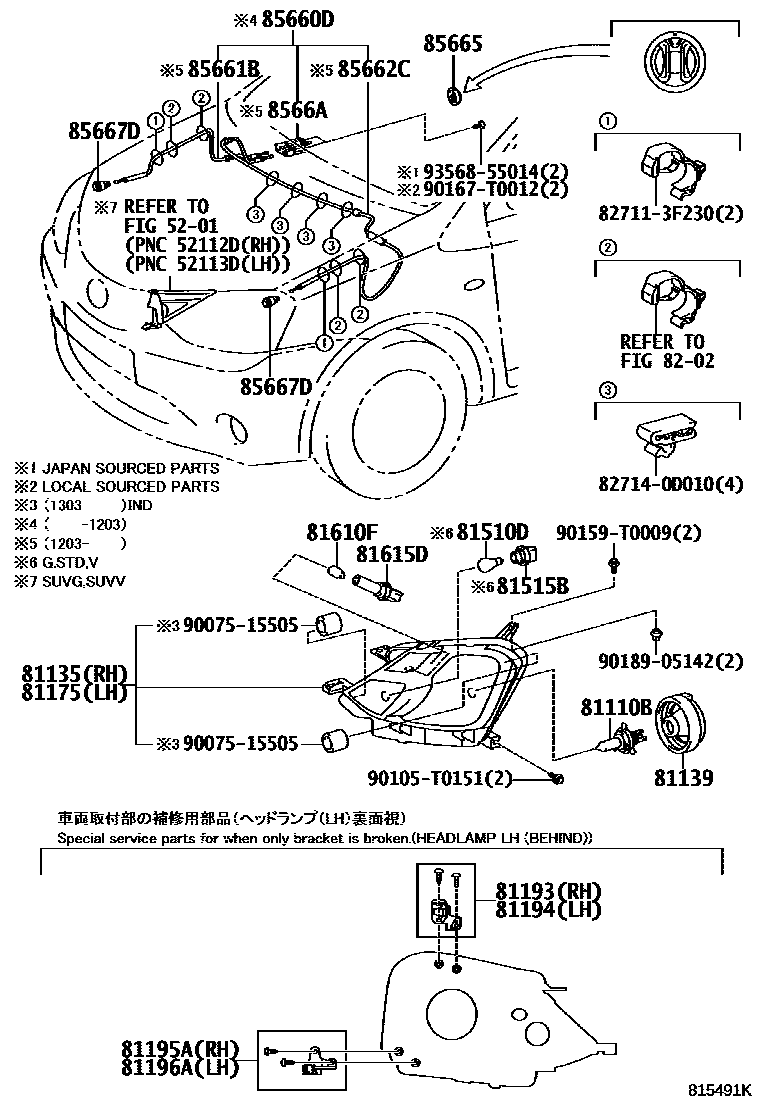

HEADLAMP

0001 1 0002 1

5201

81110HEADLAMP ASSY, RH

main81110-0D530iNGK10..IDN201303

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNGK1#,NUK1#..IND201203-201301

12V 60/55W,HALOGEN

main90981-13100×2iNGK10..IDN201403

12V 60/55W

main90981-TN001×2iNGK1#,NUK1#..IND201301-201303

12V 60/55W

81135UNIT ASSY, HEADLAMP, RH

main81130-0D420iNGK1#,NUK1#201012-201203

main81130-0D421iNGK1#,NUK1#..IND201203-201301

main81130-0D422iNGK1#,NUK1#..(G,STD,V)..(IND,SA)201303

main81130-0D423iNGK1#,NUK1#..IND201301-201303

main81130-0D530iNGK10..IDN201303

main81130-0DB30iNGK10,12,NUK10..SUVG,SUVV201404

81139COVER, HEADLAMP SOCKET

main90075-65002×2iNGK1#,NUK1#201012-201303

81175UNIT ASSY, HEADLAMP, LH

main81170-0D420iNGK1#,NUK1#201012-201203

main81170-0D421iNGK1#,NUK1#..IND201203-201301

main81170-0D422iNGK1#,NUK1#..(G,STD,V)..(IND,SA)201303

main81170-0D423iNGK1#,NUK1#..IND201301-201303

main81170-0D530iNGK10..IDN201303

main81170-0DB30iNGK10,12,NUK10..SUVG,SUVV201404

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0D030iNGK1#,NUK1#201012-201303

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0D030iNGK1#,NUK1#201012-201303

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-0D020iNGK1#,NUK1#201012-201303

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-0D020iNGK1#,NUK1#201012-201303

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iNGK1#,NUK1#201012-201303

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60069×2iNGK1#,NUK1#201012-201303

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNGK1#,NUK1#201012-201303

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNGK1#,NUK1#201012-201303

8202

85660DCABLE ASSY, HEADLAMP LEVELING

main85660-0D010iNGK1#,NUK1#201012-201203

85661BCABLE, HEADLAMP LEVELING, RH

main85661-0D030iNGK1#,NUK1#201203-201303

85662CCABLE, HEADLAMP LEVELING, LH

main85662-0D010iNGK1#,NUK1#201203-201303

85665KNOB, HEADLAMP LEVELING

main85665-0D010-C0iNGK1#,NUK1#..(G,V)..IND201012-201303

BLACK,TRIM1#

85667DCOVER, HEADLAMP LEVELING

main85667-0D010×2iNGK1#,NUK1#201012-201303

8566AGEAR, HEADLAMP LEVELING

main8566A-0D010iNGK1#,NUK1#201203-201303

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

827140D010

main82714-0D010

9007515505

main90075-15505

90105T0151

main90105-T0151

90159T0009

main90159-T0009

90167T0012

main90167-T0012

9018905142

main90189-05142

9356855014

main93568-55014

29 parts on this diagram · 2 diagrams in section
