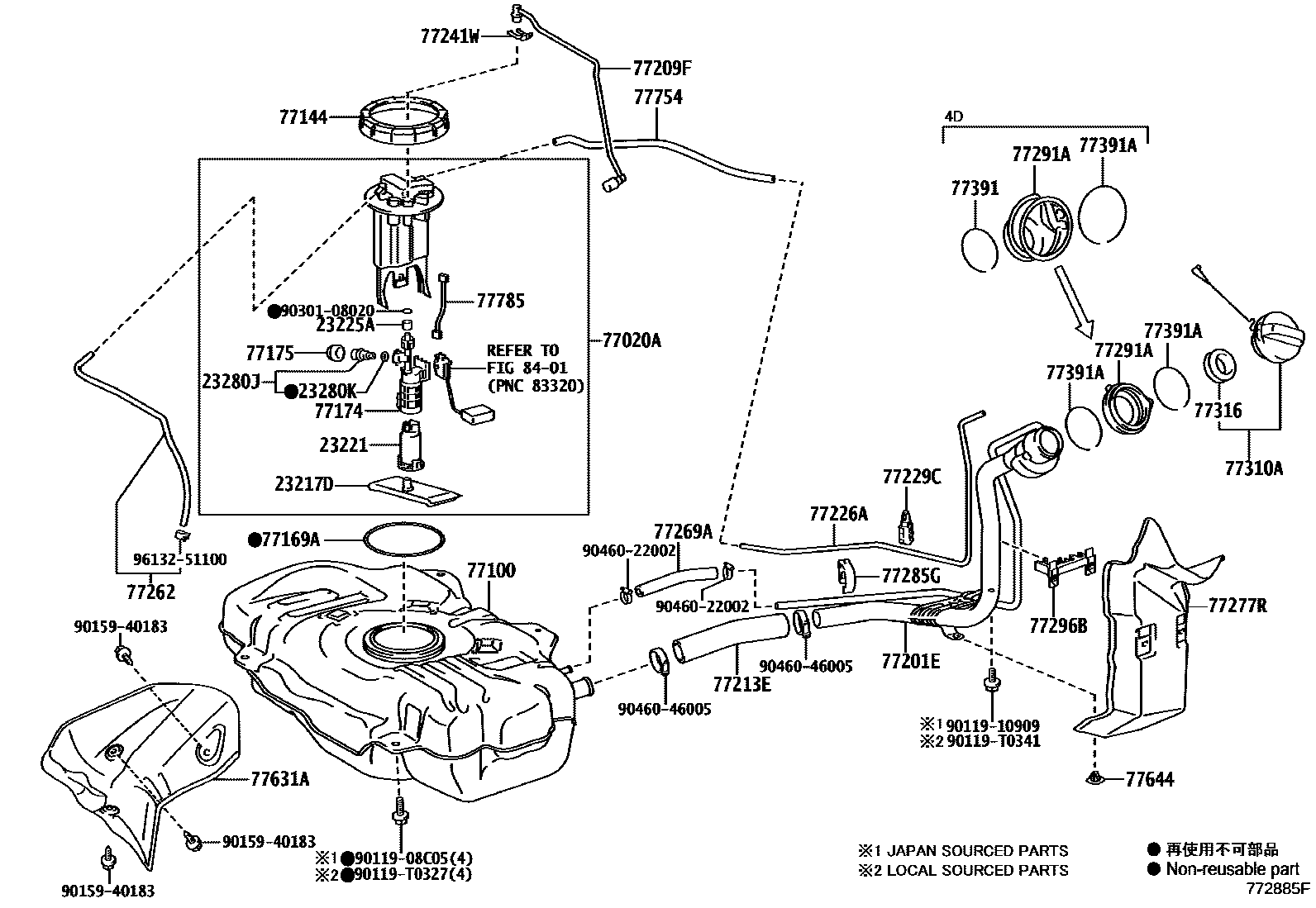

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0Y020i3NRFE..NGK10..IDN201303

main23217-47020i2NRFE,3NRFE..NGK1#..IND,SA201012-201309

sub23217-0Y020

23221PUMP, FUEL

main23221-0Y020i3NRFE..NGK10..IDN201303

main23221-47020i2NRFE,3NRFE..NGK1#201012-201203

sub23221-47021

sub77785-0D061

main23221-47021i2NRFE,3NRFE..NGK1#201203-201303

23225ASPACER, FUEL PUMP

main23225-0Y010i2NRFE,3NRFE..NGK1#201012-201303

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i3NRFE..NGK10..IDN201012-201303

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2NRFE,3NRFE..NGK1#201012-201303

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D090iNGK1#201012-201303

main77020-0D170iNGK10..IDN201303

77100TANK ASSY, FUEL

main77001-0D120iNGK1#,NUK1#201012-201303

main77001-0D300iNGK10..IDN201303

77144RETAINER, FUEL PUMP GAUGE

main77144-0D050iNGK1#,NUK1#..IND,SA201012-201303

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D060iNGK1#,NUK1#..IND,SA201012-201303

main77169-52040iNGK10..IDN201303

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D060iNGK1#201012-201303

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D020iNGK1#..IND,SA201012-201303

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0D150iNGK1#201012-201303

main77201-0D160iNUK1#201108-201303

main77201-0D270iNGK10..IDN201303-201508

main77201-0D271iNGK10..IDN201508

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D070iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201611

main77209-0D270iNGK10..IDN201611

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0D110iNGK1#,NUK1#201012-201110

sub77213-0D210

main77213-0D210iNGK1#,NUK1#..IND,SA201701

main77213-52210iNGK1#,NUK1#..IND,SA201110-201612

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0D010iNGK1#..IND,SA201012-201303

main77226-0D100iNGK10..IDN201303

77229CCLAMP, BREATHER TUBE

main77229-0D030iNGK1#,NUK1#201012-201303

main77229-0D090iNGK10..IDN201303

77241WCLIP, TUBE JOINT

main77241-33011iNGK1#..IND,SA201012-201303

77262TUBE, FUEL EMISSION, NO.2

main77028-0D060iNGK1#201012-201701

sub77028-0D190

main77028-0D190iNGK1#..IND,SA201701

main77028-52060iNGK10..IDN201303

77269AHOSE, FUEL TANK BREATHER

main77269-0D060iNGK1#,NUK1#201012-201110

sub77269-0D120

main77269-0D120iNGK1#,NUK1#..IND,SA201701

main95313-13017iNGK10..IDN201110-201612

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0D050iNGK1#,NUK1#201012-201303

main77277-0D090iNGK10..IDN201303

77285GCLAMP, FUEL TUBE, NO.1

main77285-0D020iNGK1#..IND,SA201012-201303

main77285-0D200iNGK10..IDN201303

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D090iNGK1#,NUK10..5D201012-201303

main77291-0D100iNGK15,NUK15..4D201012-201303

main77291-0D140iNGK10..IDN201303

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-0D030iNGK1#,NUK1#201012-201303

main77296-0D070iNGK10..IDN201303

77310ACAP ASSY, FUEL TANK

main77300-0K010iNGK10..IDN201608

main77300-12020iNGK10..IDN201508-201607

main77300-20020iNUK1#201108-201303

main77300-52030iNGK10,15..G,STD,V201012-201508

77316GASKET, FUEL TANK CAP

main77316-0K020iNGK10..IDN201608

main77316-52040iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201608

77391RING, FUEL INLET BOX

main77391-02020iNGK15,NUK15201012-201112

main77391-02020iNGK15,NUK15..4D201112-201303

(L)

main77391-12020iNGK15,NUK15..4D201112-201303

(J)

77391ARING, FUEL INLET BOX

main77391-02020iNGK1#,NUK10..5D201112-201303

(L)

main77391-02020iNGK10,NUK10201012-201112

main77391-12020iNGK10..IDN201112-201303

(J)

main77391-42010iNGK15,NUK15..4D201012-201303

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-0D050iNGK1#,NUK1#201012-201303

main77631-0D070iNGK10..IDN201303

77644BOLT, FUEL TANK

main77644-0K010iNGK1#,NUK1#..IND,SA201012

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-0D010iNGK1#201012-201701

sub77754-0D050

main77754-0D050iNGK1#..IND,SA201701

main77754-52070iNGK10..IDN201303

77785HARNESS, FUEL PUMP

main77785-0D060iNGK1#201012-201203

main77785-0D061iNGK1#201203-201303

main77785-0D120iNGK10..IDN201303

8401

9011908C05

main90119-08C05

9011910909

main90119-10909

90119T0327

main90119-T0327

90119T0341

main90119-T0341

9015940183

main90159-40183

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9613251100

main96132-51100

41 parts on this diagram · 6 diagrams in section
