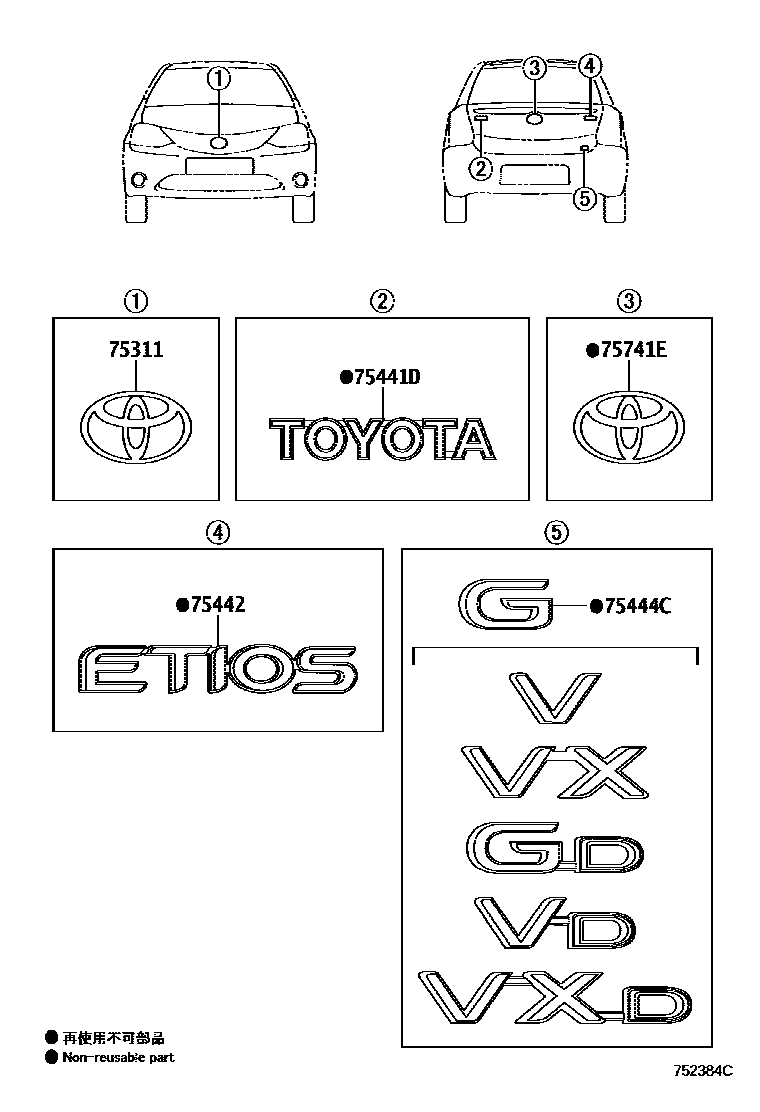

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-0D030iNGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND201303-202003

MLM PACKAGE

main75301-0D030iNGK1#,NUK1#201012-201303

main75301-0D050iNGK10..IDN201303-201712

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-0D020iNGK15,NUK15..IND201012-201303

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D110iNGK15..SA201012-201303

ETIOS

main75442-0D280iNGK15,NUK15..IND201303

ETIOS,INDONESIA SPEC

main75442-0D280iNGK15..(G,STD)..IND201303

ETIOS

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75444-0D050iNGK15..V201012-201303

V

main75444-0D130iNUK15..V201108-201303

VD

main75444-0D140iNGK15..G..IND201012-201303

G

main75444-0D150iNUK15..G201108-201303

GD

main75444-0D200iNUK15..V201303

VD

main75444-0D520iNUK15..G201303

GD

75741EEMBLEM, SYMBOL

main75431-0D160iNGK10..IDN201303

main90975-02064iNGK1#,NUK1#201012-201303

5 parts on this diagram · 4 diagrams in section
