BATTERY CARRIER

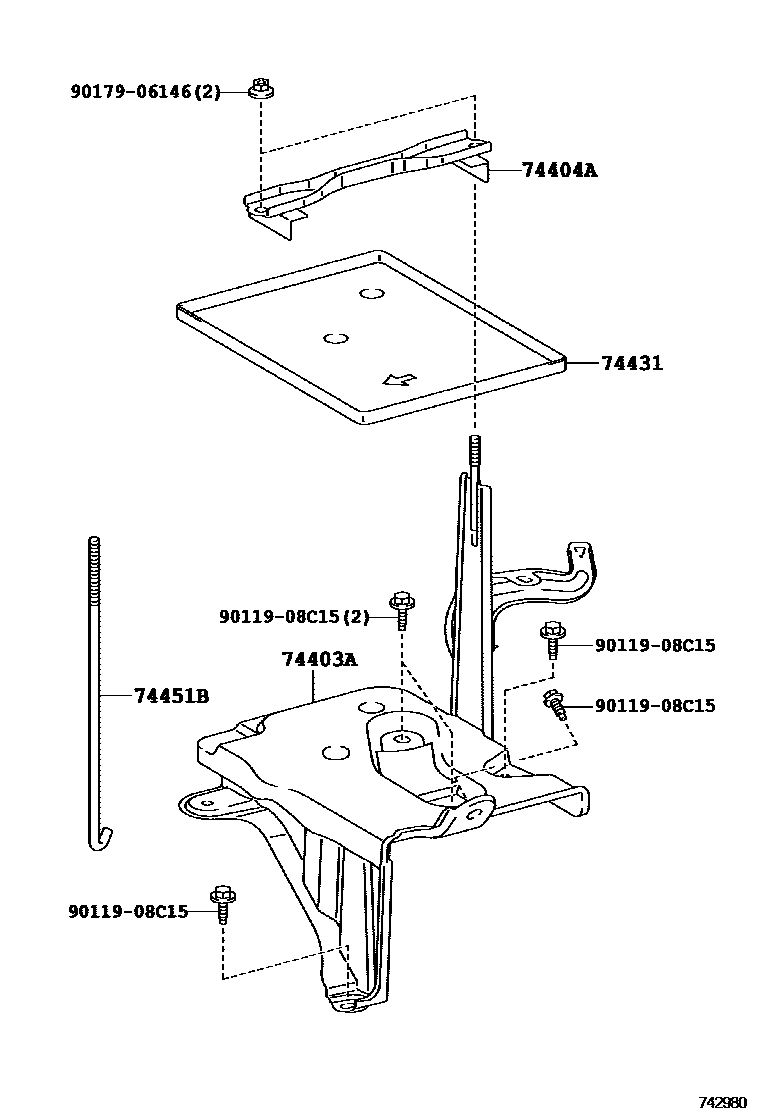

Parts diagram

74403ACARRIER SUB-ASSY, BATTERY

main74410-0D020i201012-201303

main74410-0D120i201303

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D060i201012-201309

main74404-0D110i201108-201303

main74404-0D140i201303

74431TRAY, BATTERY

main74431-0D080i201012-201309

main74431-0D090i201108-201303

main74431-0D170i201309

main74431-0D180i201303

74451BBOLT, BATTERY CLAMP

main74451-0D050i201012-201303

main74451-0D090i201303

9011908C15

main90119-08C15¥80

9017906146

main90179-06146¥100

6 parts on this diagram · 1 diagram in section
