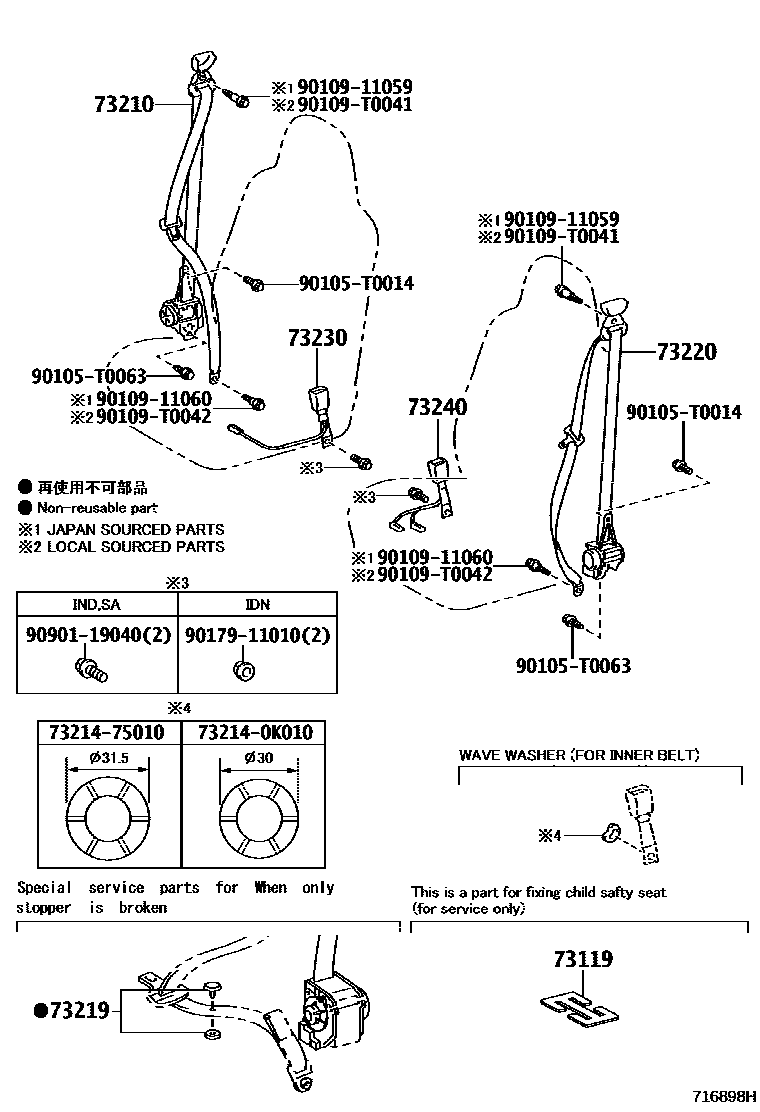

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR(CENTER SEAT BELT - 2P TY0003 1REAR(CENTER SEAT BELT - 3P TY0004 1REAR(CENTER SEAT BELT - 2P TY0005 1REAR(CENTER SEAT BELT - 3P TY

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNGK1#,NUK1#..IND,SA201012-201303

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D270-C1iNGK1#,NUK1#201012-201510

BLACK/GRAY,TRIM1#

sub73210-0D600

main73210-0D270-C1iNGK10,12,NUK10..SUVG,SUVV201404-201510

BLACK/GRAY,TRIM1#,2#

sub73210-0D600

main73210-0D270-C2iNGK1#,NUK1#..(G,V)..IND201207-201303

BLACK/GRAGE,TRIM4#

sub73210-0D600

main73210-0D270-E0iNGK10,15,NUK1#..(G,V)..IND201303-201510

GREGE/GREGE,TRIM4#

sub73210-0D600

main73210-0D450-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main73210-0D490-A0iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

sub73210-0D490

main73210-0D490-C1iNGK12..G,STD;NGK15..G..SA;NGK10,15,NUK1#..STD..(IND,SA)201510

GRAY,TRIM1#

sub73210-0D490

main73210-0D490-C1iNGK10,12,NUK10..SUVG,SUVV201510

GRAY,TRIM2#

sub73210-0D490

main73210-0D490-E1iNGK10,15,NUK1#..(G,V)..IND201510

GREGE,TRIM4#

sub73210-0D490

73219STOPPER, TONGUE PLATE

main73219-33010iNGK1#,NUK1#..IND,SA201012-201303

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D250-C1iNGK10,12,NUK10..SUVG,SUVV201404-201510

BLACK/GRAY,TRIM1#,2#

sub73220-0D590

main73220-0D250-C1iNGK1#,NUK1#201012-201510

BLACK/GRAY,TRIM1#

sub73220-0D590

main73220-0D250-C2iNGK1#,NUK1#..(G,V)..IND201207-201303

BLACK/GRAGE,TRIM4#

sub73220-0D590

main73220-0D250-E0iNGK10,15,NUK1#..(G,V)..IND201303-201510

GREGE/GREGE,TRIM4#

sub73220-0D590

main73220-0D440-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main73220-0D480-A0iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

sub73220-0D480

main73220-0D480-C1iNGK10,12,NUK10..SUVG,SUVV201510

GRAY,TRIM2#

sub73220-0D480

main73220-0D480-C1iNGK12..G,STD;NGK15..G..SA;NGK10,15,NUK1#..STD..(IND,SA)201510

GRAY,TRIM1#

sub73220-0D480

main73220-0D480-E1iNGK10,15,NUK1#..(G,V)..IND201510

GREGE,TRIM4#

sub73220-0D480

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D130-C0iNGK10..STD..IDN201303-201712

BLACK,TRIM1#

main73230-0D290-C0iNGK10,15,NUK15..V..IND201012-201609

BLACK,TRIM1#

sub73230-0D290

main73230-0D290-C0iNGK10,15,NUK1#..G..IND201303-201409

BLACK,TRIM40

sub73230-0D290

main73230-0D290-E0iNUK10..G,V;NGK10,15,NUK15..G..IND201303-201409

GREGE,TRIM4#

sub73230-0D290

main73230-0D290-E0iNUK10..G,V;NGK10,15,NUK15..G..IND201303-201409

GREGE,TRIM40

sub73230-0D290

main73230-0D300-C0iNGK1#,NUK1#..G..IND201012-201303

BLACK,TRIM1#,4#

main73230-0D300-C0iNGK1#,NUK15..V201012-201303

SAFTY PACKAGE,BLACK,TRIM1#,4#

main73230-0D300-C0iNGK15..SA201203-201303

BLACK,TRIM1#

main73230-0D590-A1iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

sub73230-0D590

main73230-0D590-C0iNGK12,NUK10..SUVV201404

BLACK,TRIM2#

sub73230-0D590

main73230-0D590-C0iNGK12..G;NGK15..G..SA201303

BLACK,TRIM1#

sub73230-0D590

main73230-0D590-C0iNGK12..SUVG201404-201906

BLACK,TRIM1#,2#

sub73230-0D590

main73230-0D590-E0iNGK10,15,NUK1#..V..IND201409-201906

GREGE,TRIM4#

sub73230-0D590

main73230-0D590-E0iNGK10,15,NUK1#..(G,V)..IND201303-201409

SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#

sub73230-0D590

main73230-0D600-C0iNGK10..(G,V)..IDN201501-201712

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D080-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main73230-0D290-A1iNGK10,15,NUK1#..V..IND201609-201906

IVORY,TRIM0#

sub73230-0D290

main73230-0D290-C0iNGK10,15,NUK15..V..IND201303-201409

BLACK,TRIM40

sub73230-0D290

main73230-0D290-C0iNGK12..G..IND;NGK10,15,NUK1#..STD..IND201012-201906

BLACK,TRIM1#

sub73230-0D290

main73230-0D290-C0iNGK12..SUVG201404-201906

BLACK,TRIM1#,2#

sub73230-0D290

main73230-0D290-C0iNGK10,NUK10..SUVG201404-201906

BLACK,TRIM2#

sub73230-0D290

main73230-0D290-C0iNGK1#,NUK15..V201012-201303

BLACK,TRIM1#,4#

sub73230-0D290

main73230-0D290-E0iNGK10,15,NUK15..V..IND201303-201409

GREGE,TRIM40

sub73230-0D290

main73230-0D290-E0iNUK10..G,V;NGK10,15,NUK15..G..IND201303-201906

GREGE,TRIM4#

sub73230-0D290

main73230-0D850-A0iNGK10,15,NUK1#..V201906

IVORY,TRIM0#

sub73230-0D850

main73230-0D850-C0iNGK12..G..IND;NGK10,15,NUK1#..STD..IND201906

BLACK,TRIM2#

sub73230-0D850

main73230-0D850-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201906

BLACK,TRIM1#

sub73230-0D850

main73230-0D850-E0iNGK10,15,NUK1#..G..IND201906

GREGE,TRIM4#

sub73230-0D850

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0014

main90105-T0014

90105T0063

main90105-T0063

9010911059

main90109-11059

9010911060

main90109-11060

90109T0041

main90109-T0041

90109T0042

main90109-T0042

9017911010

main90179-11010

9090119040

main90901-19040

16 parts on this diagram · 5 diagrams in section
