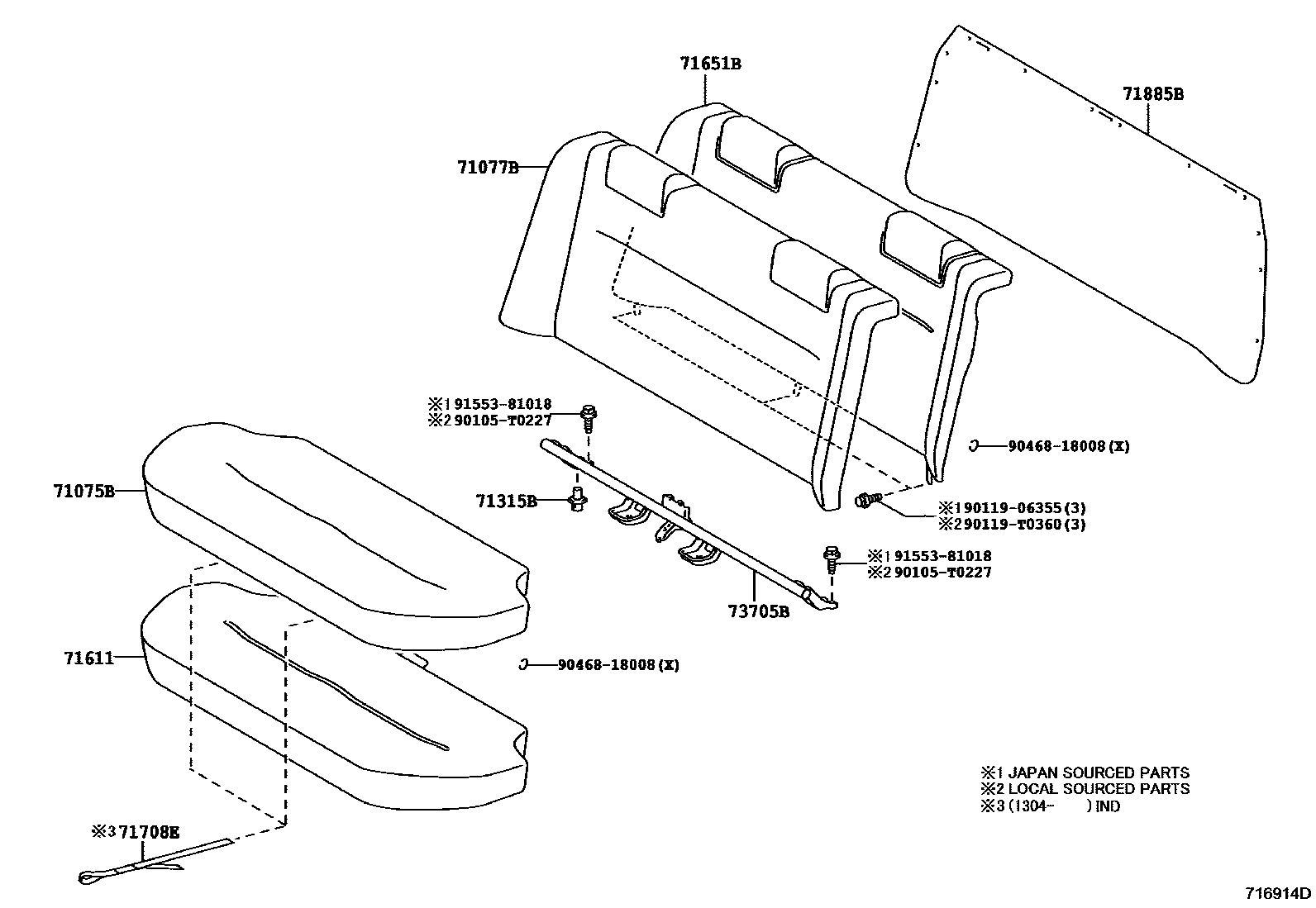

REAR SEAT & SEAT TRACK

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0D650-B1iNGK15,NUK15..STD..IND201012-201609

GRAY,TRIM1#

sub71075-0DG40

main71075-0D660-B1iNGK15..4D..G..SA201012-201303

GRAY,TRIM1#

main71075-0D670-B1iNGK10,NUK10..STD..IND201012-201609

GRAY,TRIM1#

sub71075-0DG50

main71075-0D680-B1iNGK15..5D..G201012-201303

GRAY,TRIM1#

main71075-0DD20-C0iNGK10..(G,STD)..IDN201303-201712

BLACK,TRIM1#

main71075-0DD30-C0iNGK10..V..IDN201303-201712

BLACK,TRIM1#

main71075-0DD60-E1iNGK15,NUK15..G..IND201207-201303

SAFTY PACKAGE,GREGE,TRIM4#

main71075-0DD60-E1iNGK15,NUK15..V201207-201303

GREGE,TRIM4#

main71075-0DD60-E3iNGK15,NUK15..V201303-201401

SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#

main71075-0DD60-E3iNGK15,NUK15..V201303-201401

GREGE,TRIM4#

main71075-0DD61-E4iNGK15,NUK15..(G,V)..IND201401-201609

GREGE,TRIM4#

main71075-0DD70-E1iNGK10,NUK10..G201207-201303

GREGE,TRIM4#

main71075-0DD70-E1iNGK10,NUK10..G201207-201303

SAFTY PACKAGE,GREGE,TRIM4#

main71075-0DD70-E3iNGK10..V..IND201303-201401

SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#

main71075-0DD70-E3iNGK10..V..IND201303-201401

GREGE,TRIM4#

main71075-0DD71-E4iNGK10,NUK10..(G,V)..IND201401-201609

GREGE,TRIM4#

main71075-0DE90-B0iNGK15,NUK15..G..IND201303-201304

GRAY,TRIM1#

sub71075-0DE90

main71075-0DE90-B1iNGK15..G..SA201303-201503

GRAY,TRIM1#

sub71075-0DE90

main71075-0DF00iNGK12..IND201303-201304

main71075-0DF00-B0iNGK10,NUK10..G..IND201303-201304

GRAY,TRIM1#

sub71075-0DF00

main71075-0DF00-B1iNGK12..G..SA201303-201503

GRAY,TRIM1#

sub71075-0DF00

main71075-0DG00-C0iNGK12..SUVG201404-201609

BLACK,TRIM2#

sub71075-0DK00

main71075-0DG40-B0iNGK15..STD..SA201303-201609

GRAY,TRIM1#

main71075-0DG50-B1iNGK12..STD201303-201609

GRAY,TRIM1#

main71075-0DK00-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201404-201609

BLACK,TRIM2#

main71075-0DK10-B0iNGK10,NUK10..G..IND201304-201609

GRAY,TRIM1#

main71075-0DK20-B0iNGK15,NUK15..G..IND201304-201401

GRAY,TRIM1#

main71075-0DM70-A0iNGK15..G..SA201503-201609

WHITE,TRIM1#

main71075-0DM80-A0iNGK12..G..SA201503-201609

WHITE,TRIM1#

main71075-0DT70-B0iNGK15,NUK15..STD..IND201609

GRAY,TRIM1#

main71075-0DT80-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main71075-0DT80-E0iNGK15,NUK15..(G,V)..IND201609

GREGE,TRIM4#

main71075-0DT90-B0iNGK15..STD..SA201609

GRAY,TRIM1#

main71075-0DU00-A0iNGK15..G..SA201609

WHITE,TRIM1#

main71075-0DU10-B0iNGK10,NUK10..STD..IND201609

GRAY,TRIM1#

main71075-0DU20-A0iNGK10,NUK10..V..IND201609

IVORY,TRIM0#

main71075-0DU20-E0iNGK10,NUK10..(G,V)..IND201609

GREGE,TRIM4#

main71075-0DU30-C0iNGK12..SUVG201609

BLACK,TRIM2#

main71075-0DU40-B0iNGK12..STD201609

GRAY,TRIM1#

main71075-0DU50-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201609

BLACK,TRIM2#

main71075-0DU60-B0iNGK12..G..IND201609

GRAY,TRIM1#

main71075-0DU70-A0iNGK12..G..SA201609

WHITE,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0D420-B1iNGK15,NUK15..STD..IND201012-201609

GRAY,TRIM1#

sub71077-0DN50

main71077-0D800-B1iNGK15..4D..G..SA201012-201303

GRAY,TRIM1#

main71077-0D810-B2iNGK15..5D..STD;NGK10,NUK10..G,STD201012-201303

GRAY,TRIM1#

sub71077-0DN60

main71077-0D810-B4iNGK10,NUK10..STD..IND201303-201609

GRAY,TRIM1#

sub71077-0DN60

main71077-0D820-B2iNGK15..5D..G201012-201303

GRAY,TRIM1#

main71077-0DG20-A0iNGK15..G..SA201503-201609

WHITE,TRIM1#

main71077-0DG80-C1iNGK10..STD..IDN201303-201712

BLACK,TRIM1#

main71077-0DG90-C1iNGK10..V..IDN201303-201501

BLACK,TRIM1#

main71077-0DK20-E0iNGK15,NUK15..V201303-201401

GREGE,TRIM4#

main71077-0DK20-E0iNGK15,NUK15..G..IND201303-201401

SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#

main71077-0DK21-E1iNGK15,NUK15..(G,V)..IND201401-201609

GREGE,TRIM4#

main71077-0DK30-E1iNGK10,NUK10..G..IND201303-201401

GREGE,TRIM4#

main71077-0DK30-E1iNGK10,NUK10..G..IND201303-201401

SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#

main71077-0DK31-E2iNGK10,NUK10..(G,V)..IND201401-201609

GREGE,TRIM4#

main71077-0DK40-E0iNGK10..V201207-201303

GREGE,TRIM4#

main71077-0DK40-E0iNGK10,NUK10..G201207-201303

SAFTY PACKAGE,GREGE,TRIM4#

main71077-0DK50-E0iNGK15,NUK15..V201207-201303

GREGE,TRIM4#

main71077-0DK50-E0iNGK15,NUK15..G..IND201207-201303

SAFTY PACKAGE,GREGE,TRIM4#

main71077-0DL80-B1iNGK15,NUK15..G..IND201303-201503

GRAY,TRIM1#

main71077-0DL90-B1iNGK10,NUK10..G..IND201303-201609

GRAY,TRIM1#

main71077-0DN40-C0iNGK10,12,NUK10..SUVG,SUVV201404-201609

BLACK,TRIM2#

main71077-0DN50-B0iNGK15..STD..SA201303-201609

GRAY,TRIM1#

main71077-0DN60-B0iNGK12..STD201303-201609

GRAY,TRIM1#

main71077-0DQ50-C0iNGK10..V..IDN201501-201712

BLACK,TRIM1#

main71077-0DQ60-C0iNGK10..G..IDN201501-201712

BLACK,TRIM1#

main71077-0DS60-A0iNGK12..G..SA201503-201609

WHITE,TRIM1#

main71077-0DY20-B0iNGK15,NUK15..STD..IND201609

GRAY,TRIM1#

main71077-0DY30-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main71077-0DY30-E0iNGK15,NUK15..(G,V)..IND201609

GREGE,TRIM4#

main71077-0DY40-B0iNGK15..STD..SA201609

GRAY,TRIM1#

main71077-0DY50-A0iNGK15..G..SA201609

WHITE,TRIM1#

main71077-0DY60-B0iNGK10,NUK10..STD..IND201609

GRAY,TRIM1#

main71077-0DY70-A0iNGK10,NUK10..V..IND201609

IVORY,TRIM0#

main71077-0DY70-E0iNGK10,NUK10..(G,V)..IND201609

GREGE,TRIM4#

main71077-0DY80-B0iNGK12..G..IND201609

GRAY,TRIM1#

main71077-0DY90-C0iNGK10,12,NUK10..SUVG,SUVV201609

BLACK,TRIM2#

main71077-0DZ00-B0iNGK12..STD201609

GRAY,TRIM1#

main71077-0DZ20-A0iNGK12..G..SA201609

WHITE,TRIM1#

71315BPIN, REAR SEAT HINGE

main71315-0D010iNGK1#,NUK1#201012-201303

71611PAD, REAR SEAT CUSHION

main71503-0D130iNGK15,NUK15..STD201012-201609

main71503-0D140iNGK15,NUK15..G,V201012-201609

main71503-0D150iNGK10,12,NUK10..STD..(IND,SA)201012-201609

main71503-0D160iNGK10,12,NUK10..(G,SUVG,SUVV,V)..(IND,SA)201012-201609

main71503-0D310iNGK10..IDN201303

main71503-0D600iNGK15,NUK15201609

main71503-0D610iNGK10,12,NUK10..IND,SA201609

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-0D030iNGK15..4D..STD;NGK15,NUK15..G..IND201012-201609

main71507-0D130iNGK15,NUK15..V;NGK15..4D..G..SA201012-201303

main71507-0D160iNGK15,NUK15..G,V201303-201609

main71651-0D160iNGK15..5D..STD;NGK10,NUK10..G,STD201012-201609

main71651-0D170iNGK10..V;NGK15..5D..G201012-201303

main71651-0D480iNGK10..(G,V)..IDN201303-201501

main71651-0D530iNGK12..G..IND201303-201609

sub71651-0DA10

main71651-0D640iNGK10..(G,V)..IDN201501

main71651-0DA10iNGK10,12,NUK10..IND,SA201609

main71651-0DA30iNGK15,NUK15201609

71708ESTRAP SUB-ASSY, REAR SEAT COVER

main71737-0D010-A2iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

sub71737-0D010

main71737-0D010-B0iNGK10,15,NUK1#..STD..IND201304

GRAY,TRIM1#

sub71737-0D010

main71737-0D010-C0iNGK10,15,NUK1#..G..IND201304-201401

BLACK,TRIM1#

sub71737-0D010

main71737-0D010-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201404

BLACK,TRIM2#

sub71737-0D010

main71737-0D010-E0iNGK10,15,NUK1#..G..IND201304-201401

SAFETY PACKAGE(WITH ABS),MD.GREGE,TRIM4#

sub71737-0D010

main71737-0D010-E0iNGK10,15,NUK15..V..IND201304-201401

MD.GREGE,TRIM4#

sub71737-0D010

main71737-0D010-E1iNGK10,15,NUK1#..(G,V)..IND201401

GREGE,TRIM4#

sub71737-0D010

71885BMAT, REAR SEATBACK

main71885-0D010iNGK15,NUK15..4D201012-201609

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-0D100iNGK15,NUK15201012-201609

main73705-0D110iNGK1#,NUK10..5D201012-201303

main73705-0D111iNGK10,12,NUK10..IND,SA201303-201609

sub73705-0D570

main73705-0D320iNGK10..IDN201303

main73705-0D570iNGK10,12,NUK10..IND,SA201609

main73705-0D580iNGK15,NUK15201609

90105T0227

main90105-T0227

9011906355

main90119-06355¥160

90119T0360

main90119-T0360

9046818008

main90468-18008¥80

9155381018

main91553-81018¥100

13 parts on this diagram · 6 diagrams in section
