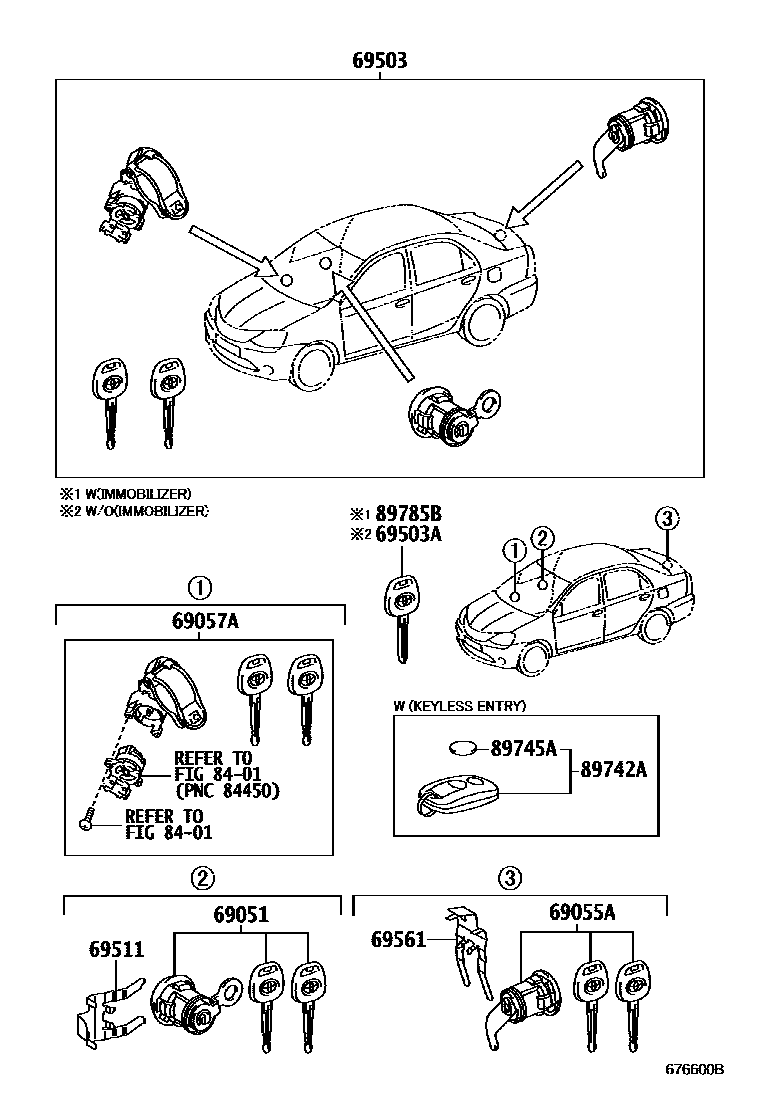

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0D150iNGK1#,NUK1#..IND,SA201012-201303

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-0D130iNGK15,NUK15..4D201012-201303

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0D290iNGK1#,NUK1#201012-201303

main69057-0D500iNGK10..IDN201303-201712

69503CYLINDER SET, LOCK

main69005-0D160iNGK15,NUK15201012-201303

main69005-0D170iNGK1#,NUK10..5D201012-201303

main69005-0D630iNGK10..IDN201303-201712

main69005-0DC80iNGK15..(G,STD)..IND201308-201409

INDONESIA SPEC

69503AKEY, BLANK

main90999-00199iNGK10..IDN201303

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-0D020iNGK1#,NUK1#..IND,SA201410-201609

(L)

main69511-0D020iNGK1#,NUK1#..IND,SA201609

main69511-16030iNGK1#,NUK1#..IND,SA201012-201410

main69511-16030iNGK1#,NUK1#..IND,SA201410-201609

(J)

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-0D020iNGK1#,NUK1#..IND,SA201609

main69511-0D020iNGK1#,NUK1#..IND,SA201410-201609

(L)

main69511-16030iNGK10..IDN201012-201410

main69511-16030iNGK1#,NUK1#..IND,SA201410-201609

(J)

8401

89742ATRANSMITTER, DOOR CONTROL

main89742-0D020iNGK1#,NUK1#..(G,V)..IND201012-201303

sub89742-0D030

main89742-0D020iNGK15..G..IND201303-201404

INDONESIA SPEC

sub89742-0D030

main89742-0D030iNGK12,15..STD..SA201203-201303

89745ABATTERY, TRANSMITTER

main89745-0D010iNGK1#,NUK1#..G,V201012-201303

sub89745-0K010

main89745-0D010iNGK15..G..IND201303

INDONESIA SPEC

sub89745-0K010

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-0D120iNGK1#,NUK1#201012-201303

main89785-0D120iNGK15..(G,STD)..IND201303

INDONESIA SPEC

11 parts on this diagram · 2 diagrams in section
