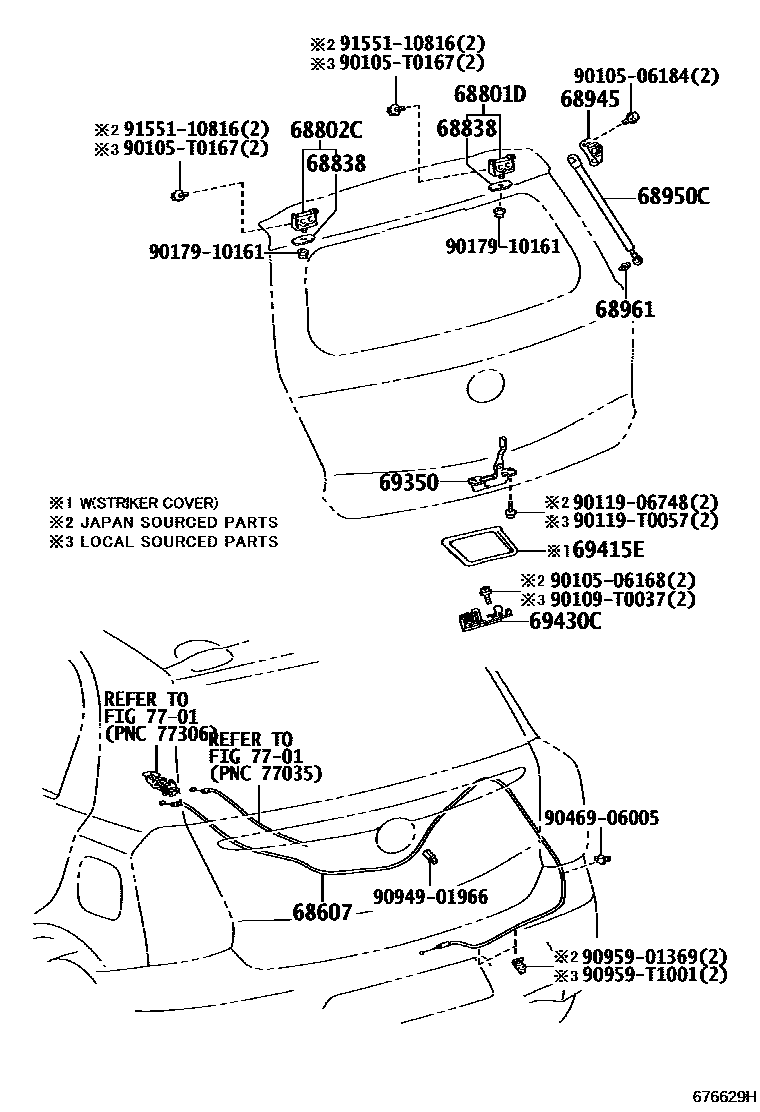

BACK DOOR LOCK & HANDLE

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-0D130iNGK1#,NUK10..5D201012-201303

main64607-0D180iNGK10..IDN201303

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-0D030iNGK10,12,NUK10..IND,SA201012-201303

main68801-0D260iNGK10..IDN201303

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-0D030iNGK1#,NUK10..5D201012-201303

main68801-0D260iNGK10..IDN201303

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D050iNGK1#,NUK10..5D201012-201303

T=1.0

main68838-0D060iNGK10,12,NUK10..IND,SA201012-201303

T=1.5

main68838-0D070iNGK10,12,NUK10..IND,SA201012-201303

T=2.0

main68838-0D200iNGK10..IDN201303

T=1.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D040iNGK10..IDN201303

main68945-52080iNGK1#,NUK10..5D201012-201303

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D040iNGK12..STD;NGK12..G..IND201409

LUXURY PACKAGE(W(ABS & *ERCDM))

main68950-0D040iNGK10..V;NGK15..5D..G201012-201303

main68950-0D050iNGK15..5D..STD;NGK10,NUK10..G,STD201012-201409

68961BOLT, BACK DOOR STAY

main68961-10030iNGK1#,NUK10..5D201012-201303

69350LOCK ASSY, BACK DOOR

main69350-0D110iNGK1#,NUK10..5D201012-201303

69415ECOVER, BACK DOOR LOCK STRIKER

main62671-0D010iNGK15..5D..STD;NGK10,NUK10..G,STD201012-201303

main62671-0D050iNGK10..(G,STD)..IDN201303-201712

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D050iNGK10,12,NUK10..IND,SA201012-201303

7701

9010506168

main90105-06168

9010506184

main90105-06184

90105T0167

main90105-T0167

90109T0037

main90109-T0037

9011906748

main90119-06748

90119T0057

main90119-T0057

9017910161

main90179-10161

9046906005

main90469-06005

9094901966

main90949-01966

9095901369

main90959-01369

90959T1001

main90959-T1001

9155110816

main91551-10816

23 parts on this diagram · 1 diagram in section
