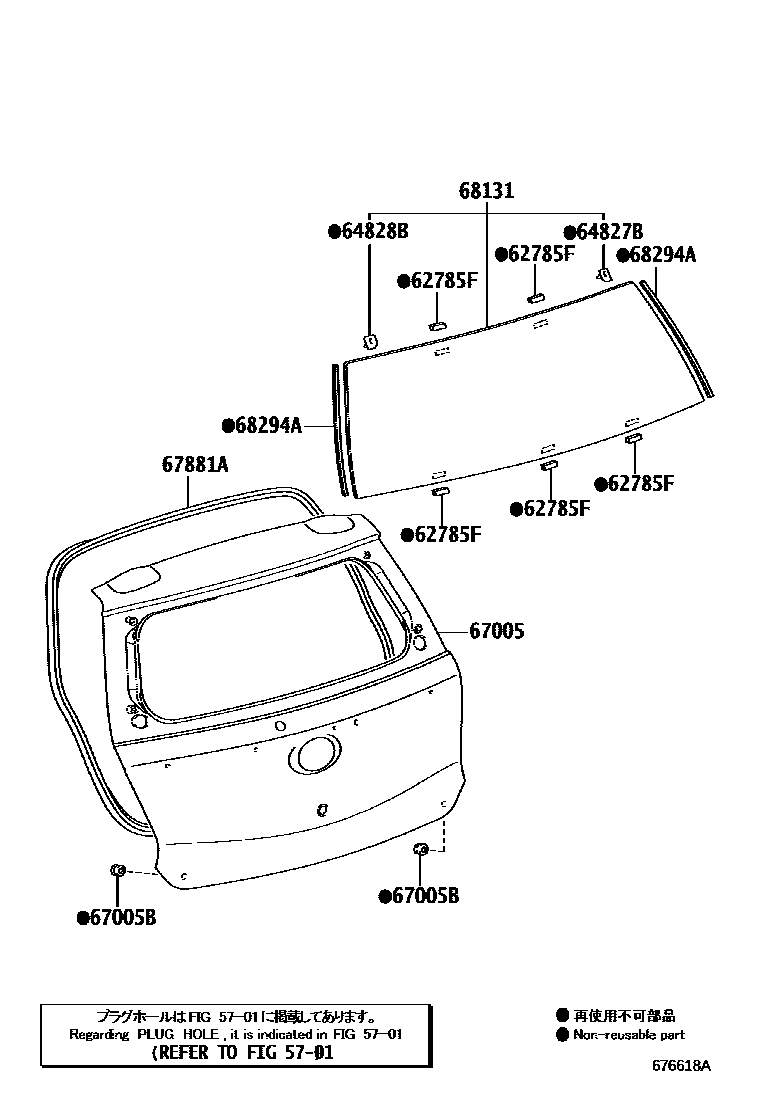

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-52010iNGK10,12,NUK10..IND,SA201012-201303

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0D010iNGK10,12,NUK10..IND,SA201012-201303

main64827-0D080iNGK10..IDN201303

64828BCLIP, BACK WINDOW GLASS, LH

main64828-0D010iNGK1#,NUK10..5D201012-201303

main64828-0D080iNGK10..IDN201303

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D080iNGK12..G..SA;NGK10..V..IND201012-201309

sub67005-0D081

main67005-0D081iNGK12..G..SA;NGK10,NUK10..V..IND201310

main67005-0D090iNGK12..STD;NGK10,12,NUK10..(G,STD)..IND201012-201309

sub67005-0D091

main67005-0D091iNGK12..STD;NGK12..G..IND201310-201409

main67005-0D140iNGK10,12,NUK10..SUVG,SUVV201404

main67005-0D240iNGK10..(G,V)..IDN201303-201712

sub67005-0D370

main67005-0D250iNGK10..STD..IDN201303-201712

sub67005-0D091

main67005-0D370iNGK10,NUK10..G..IND201409

LUXURY PACKAGE(W(ABS & *ERCDM))

main67005-0D790iNGK12..G..SA201802

TWO TONE EXTERIOR COLOR

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNGK1#,NUK10..5D201012-201303

67881AWEATHERSTRIP, BACK DOOR

main67881-0D050iNGK1#,NUK10..5D201012-201303

main67881-0D100iNGK10..IDN201303

68131GLASS, BACK DOOR

main68105-0D100iNGK10,NUK10..STD..IND201012-201409

sub68105-0D110

main68105-0D110iNGK12..STD;NGK10,12,NUK10..G..IND201012-201303

main68105-0D150iNGK10..IDN201303

68294ADAM, BACK DOOR GLASS ADHESIVE

main56117-50140iNGK10,12,NUK10..IND,SA201012-201303

L=2000

main64813-0D210iNGK10..IDN201303-201402

sub64813-0D340

main64813-0D340iNGK10..IDN201403

9 parts on this diagram · 2 diagrams in section
