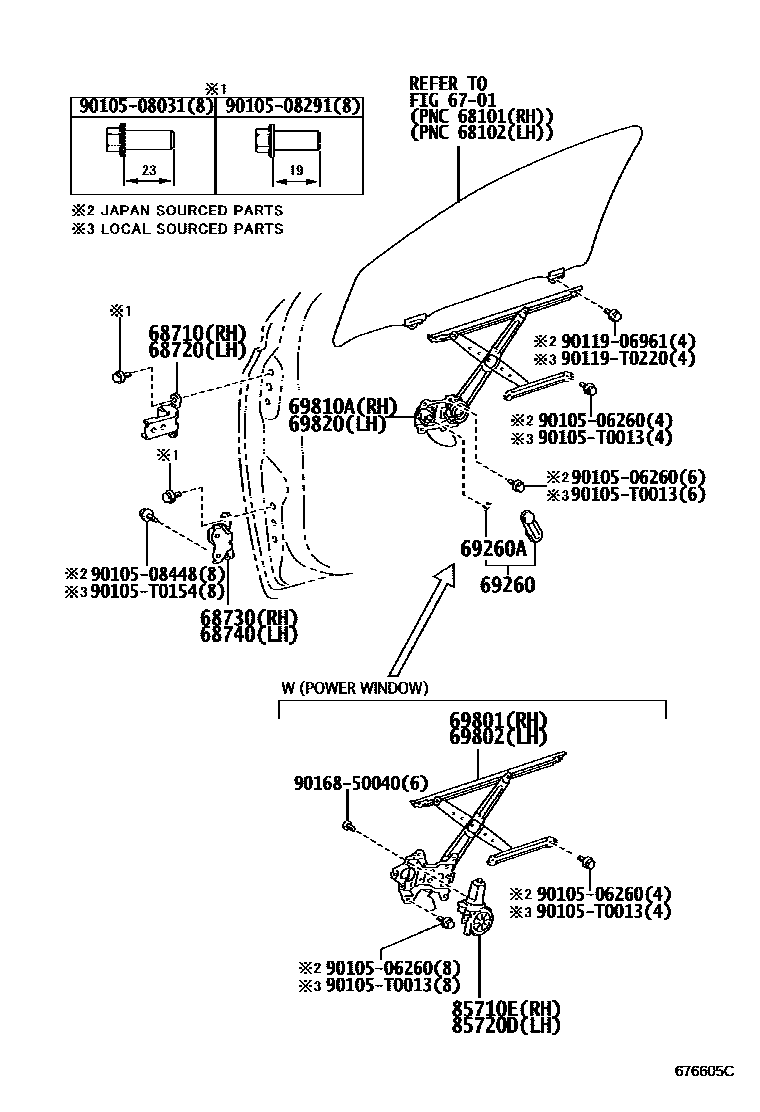

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D060iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D060iNGK1#,NUK1#..IND,SA201012-201303

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D050iNGK1#,NUK1#..IND,SA201012-201303

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D050iNGK1#,NUK1#201012-201303

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0D020-B0iNGK1#..STD201012-201112

GRAY,TRIM1#

sub69260-0D020

main69260-0D020-B1iNGK1#..STD201112-201802

MD.GRAY,TRIM1#

sub69260-0D020

main69260-0D050-B1iNGK10..STD..IDN201303-201501

DK.GRAY,TRIM1#

main69260-0D050-B1iNGK10..STD..IDN201303-201501

WITH(POWER STEERING & POWER WINDOW),DK.GRAY,TRIM1#

69260ASPRING(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90524-15006iNGK10,15..STD201012-201802

main90524-15006iNGK10..STD..IDN201303-201501

WITH(POWER STEERING & POWER WINDOW)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D140iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201012-201303

main69801-0D210iNGK10..STD..IDN201310-201501

WITH(POWER STEERING & POWER WINDOW)

main69801-0D210iNGK10..(G,V)..IDN201303

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D150iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201012-201303

main69802-0D210iNGK10..STD..IDN201310-201501

WITH(POWER STEERING & POWER WINDOW)

main69802-0D210iNGK10..(G,V)..IDN201303

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D260iNGK1#..STD201012-201802

main69810-0D330iNGK10..STD..IDN201303-201501

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D270iNGK12,15..STD..SA201012-201802

main69820-0D340iNGK10..STD..IDN201303-201501

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D170iNGK1#,NUK1#..G,V201012-201303

main85710-0D180iNGK10..STD..IDN201310-201501

WITH(POWER STEERING & POWER WINDOW)

main85710-0D180iNGK10..STD..IDN201303

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D130iNGK10,15,NUK1#..STD..IND201012-201303

main85720-0D310iNGK10..STD..IDN201310-201501

WITH(POWER STEERING & POWER WINDOW)

main85720-0D310iNGK10..(G,V)..IDN201303

9010506260

main90105-06260

9010508031

main90105-08031

9010508291

main90105-08291

9010508448

main90105-08448

90105T0013

main90105-T0013

90105T0154

main90105-T0154

9011906961

main90119-06961

90119T0220

main90119-T0220

9016850040

main90168-50040

22 parts on this diagram · 1 diagram in section
